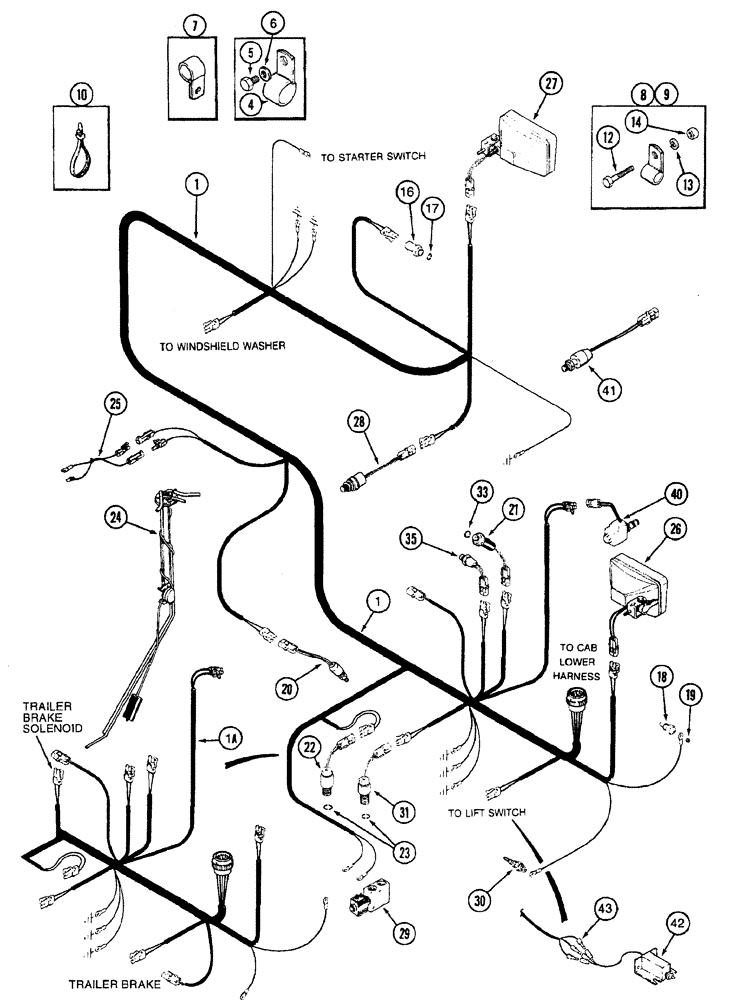

Запчасти Case IH 7250 (4-010) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

1987426C2

HARNESS

transmission speed and range, without electrically operated PTO, prior to tractor P.I.N JJA0064978

1шт.

1a

189573A2

HARNESS

transmission speed and range, with electrically operated PTO, tractor P I N JJA0064978 and after, partially shown

1шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type

1шт.

5

814-10012

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 12 mm, if used

1шт.

5

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm, if used

1шт.

6

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

flat, 11 x 24 x 3 mm, hardened, used with 613-10030 bolt, if used

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

492-11031

LOCK WASHER,5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

1шт.

16

1983218C2

SWITCH

neutral start, see Figure 6-30

1шт.

17

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

18

A176566

TRANSMITTER

SENDER - transmission oil temperature

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

20

1546462C1

SENSOR

lube oil pressure

1шт.

21

244451A1

PRESSURE SWITCH

transmission system pressure, includes item 33, 237-6005 O-ring, mounts to PTO valve on Figure 8-6, replaces 101813A2 switch

1шт.

22

A186005

SENSOR

tractor speed

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

24

103002A2

FUEL GAUGE

SENSOR - auxiliary fuel tank level, replaces 103002A1 sensor, prior to tractor P.I.N. JJA0064978

1шт.

24

193855A2

FUEL GAUGE

SENSOR - auxiliary fuel tank level (not shown), tractor P.I.N. JJA0064978 and after

1шт.

25

92261C1

HARNESS

sender, auxiliary fuel level

1шт.

26

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, right, see Figure 4-38

1шт.

27

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, left, see Figure 4-38

1шт.

28

1958159C2

SOLENOID VALVE

ASSEMBLY - drive, creeper

1шт.

29

1272538C1

VALVE

ASSEMBLY - solenoid, MFD, parts list Figure 8-16

1шт.

30

1957801C1

PRESSURE SWITCH

Hydraulic filter

1шт.

31

A186004

SENSOR

engine rpm

1шт.

35

1964698C3

SWITCH

PTO neutral, if used, used prior to tractor P I N JJA0064978

1шт.

40

REF

INSTRUCTION

SOLENOID ASSEMBLY - differential lock, see Figure 8-10 or 8-12

1шт.

41

1546463C1

SWITCH, PRESSURE

PRESSURE SWITCH flow compensated (PFC)

1шт.

42

221545A1

KIT

KIT - implement status switch, includes lift switch and associated parts, plus instructions, as an acre counter kit used alone, if attaching a trainling implement, also order 221546A1 extension harness

1шт.

43

221546A1

HARNESS

extension, 30 foot, used with 221545A1 implement status switch kit on models with trailing implements, if used

1шт.

33

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
