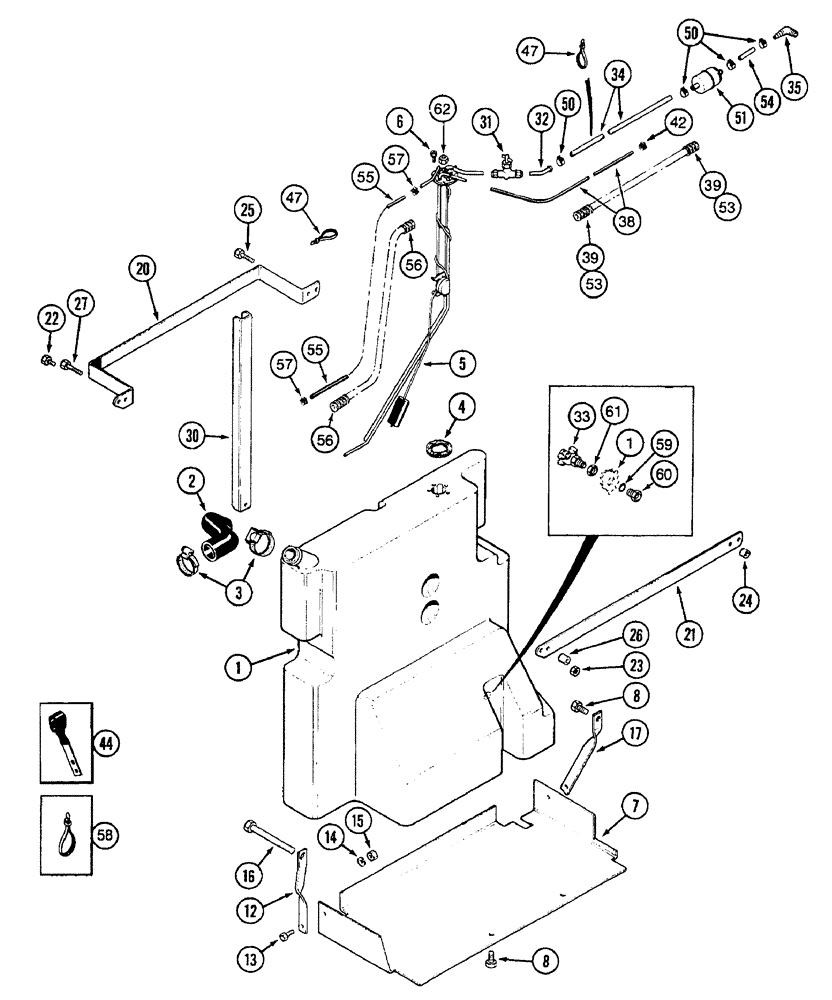

Запчасти Case IH 7250 (3-056) - AUXILLARY FUEL TANK AND FUEL LINES, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM

1

137700C4

TANK

ASSEMBLY - fuel, auxiliary, also order Ref. 4

1шт.

2

97013C1

FUEL HOSE

tank, auxiliary

1шт.

3

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

2шт.

4

104812C3

GASKET,3.05mm Thk

fuel level sender

1шт.

5

103002A2

FUEL GAUGE

SENSOR - auxiliary fuel tank level, also order Ref. 4, replaces 103002A1 sender, see Figure 4-10, item 25 for sender harness

1шт.

6

193-563

SCREW,SEMS, Hex Hd, #10-24 x 3/4", G5

hex, with external tooth lock, No. 10 NC x 3/4 inch

5шт.

7

137702C3

SUPPORT ASSY.

tank

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

12

1280992C1

SUPPORT ASSY.

tank, rear

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

825-1410

NUT,M10, Cl 8

2шт.

16

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT - hex, 16 - 2.0 x 140 mm

1шт.

17

137704C1

SUPPORT

front, tank

1шт.

20

144252C2

STIFFENER

BRACKET - hold down, tank

1шт.

21

1259898C1

BRACKET

retaining, tank

1шт.

22

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

1259899C1

SPACER

support, front

1шт.

25

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

26

144253C1

SPACER

support, rear

1шт.

27

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

30

1251937C1

REINFORCEMENT

CHANNEL - brace, tank

1шт.

31

217-270

LOCK VALVE

shutoff, brass, 3/8 x 3/8 inch

1шт.

32

1348237C1

FUEL TUBE,0.375 mm OD, 65 mm Length

fuel supply

1шт.

33

217-103

COCK, DRAIN

VALVE -1/4 inch PT, drain

1шт.

34

1348238C1

FUEL HOSE,9.52 mm ID x 1080.00 mm, SAE 30R7

Fuel supply

1шт.

35

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

90 degree, 3/8 barb end x 1/4 inch PT

1шт.

38

1348236C1

FUEL HOSE,7.94 mm ID x 2431.00 mm, SAE 30R7

Fuel return

1шт.

39

1348277C1

LOOM

SLEEVE - corrugated, 17 (5/8) ID x 2331 mm (91-13/16 inch) long

1шт.

42

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose, retaining

2шт.

44

1954474C4

SHIN

CLAMP - fuel line, at left front cab support

1шт.

47

306132C1

CABLE TIE,14.5" L

CABLE STRAP Nylon

2шт.

50

1348264C1

HOSE CLAMP

hose, 3/8 inch

4шт.

51

D139225

FILTER, FUEL

in-line

1шт.

53

1348276C1

LOOM

SLEEVE - corrugated, 17 (5/8) ID x 980 mm (38-19/32 inch) long

1шт.

54

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

Fitting to fuel sender

1шт.

55

103010A1

HOSE,8.34 mm ID x 1970.00 mm

Vent, Auxiliary Tank

1шт.

56

103011A1

CONDUIT

SLEEVE - corrugated, 17 (5/8) ID x 1841 mm (72-1/2 inch) long, cut from 291262A2 bulk conduit

1шт.

57

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, retaining

2шт.

58

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

59

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

60

1251790C1

FITTING

ADAPTER - straight, fuel tank drain

1шт.

61

1251791C1

JAM NUT,3/4" - 16 LH Thread

hex, jam, special

1шт.

62

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF, harness electrical lead to sender

1шт.
