Запчасти Case IH 7250 (3-052) - FOOT THROTTLE (03) - FUEL SYSTEM

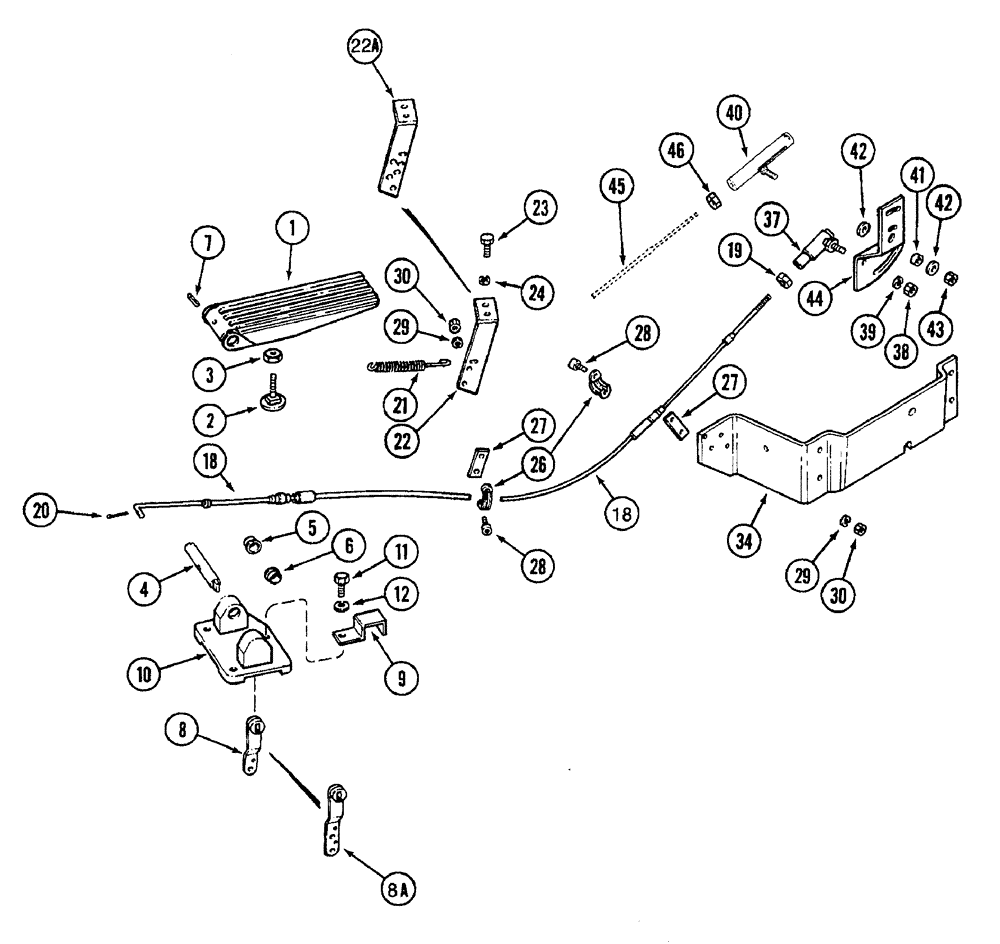

Схема запчастей Case IH 7250 - (3-052) - FOOT THROTTLE (03) - FUEL SYSTEM
1
22a
21
27
6
42
18
29
12
11
4
3
22
26
28
44
45
30
43
24
39
40
38
2
37
20
46
30
7
18
19
8
41
5
34
27
10
42
9
29
23
8a
28

Артикул

Название

Примечание

Количество

1

1975959C4

PEDAL ASSY.

foot throttle, with pad

1шт.

2

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

3

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

4

97043C4

SHAFT

throttle pedal

1шт.

5

1975973C1

BUSHING

left, long

1шт.

6

1975974C1

BUSHING

right, short

1шт.

7

38-3816

PIN,1/8" x 1", Coiled

1шт.

8

1975961C2

LEVER ASSY.

throttle pedal, prior to tractor P I N JJA0064978

1шт.

8a

220355A1

LEVER ASSY.

throttle pedal, tractor P I N JJA0064978 and after

1шт.

9

1977463C1

STOP

throttle pedal

1шт.

10

97046C4

SUPPORT

throttle pedal

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

12

892-11008

LOCK WASHER,8mm ID

3шт.

18

97173C3

CABLE

foot throttle

1шт.

19

225-14210

NUT,#10-32

1шт.

20

432-48

COTTER PIN,1/16" x 1/2"

1шт.

21

1975966C1

SPRING

detent, pedal return (two springs required for 7250 tractor P I N JJA0064978 and after)

1-2шт.

22

1344278C1

SUPPORT ASSY.

BRACKET - cable, foot throttle, prior to tractor P I N JJA0064978

1шт.

22a

220359A1

SUPPORT ASSY.

BRACKET - cable, foot throttle, tractor P I N JJA0064978 and after

1шт.

23

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

24

892-11006

LOCK WASHER,M6

2шт.

26

A75815

CLAMP

retaining

2шт.

27

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

clamp

2шт.

28

461-31012

HEX SOC SCREW,#10 - 24 x 3/4"

4шт.

29

492-11010

LOCK WASHER,#10

Prior to tractor P I N JJA0064978

4шт.

30

225-14110

NUT,#10-24

Replaces 193-1004 nut with external tooth lock washer used on some models, prior to tractor P I N JJA0064978

4шт.

30

224900A1

LARGE PLATE

PLATE, LARGE locking, cable clamp, not shown, see item 33 on Figure 3-50 for plate, tractor P I N JJA0064978 and after

1шт.

34

REF

INSTRUCTION

BRACKET - throttle cable, see Figure 3-48 or 3-50 for bracket options

1шт.

37

19725R1

BALL JOINT

foot throttle

1шт.

38

225-14210

NUT,#10-32

1шт.

39

492-11010

LOCK WASHER,#10

1шт.

40

84728C1

JOINT

ball, hand throttle, replaces 120319C2 ball joint, prior to tractor P I N JJA0064978

1шт.

40

1974525C1

BALL JOINT

throttle cable, tractor P I N JJA0064978 and after

1шт.

41

1971259C1

SPACER

3/8 ID x 7/32 inch

1шт.

42

495-81107

WASHER,.281" x 7/8" x .060"

flat, 9/32 x 7/8 x 3/64 inch

2шт.

43

230-4714

LOCK NUT,1/4"-28, GA

hex, self-locking, 1/4 inch NF

1шт.

44

97038C4

LEVER

throttle, replaces 97038C3 lever, prior to tractor P I N JJA0064978

1шт.

44

198834A1

SUPPORT

BRACKET - throttle lever, not shown, see item 7 on Figure 3-50 for bracket, tractor P I N JJA0064978

1шт.

45

REF

INSTRUCTION

CABLE - hand throttle, see Figure 3-48 or 3-50

1шт.

46

225-14210

NUT,#10-32

1шт.

A67887

THROTTLE

ATTACHMENT - foot, order from Machinery Price List, includes instructions, prior to tractor P I N JJA0064978, Includes: items 1-46, except for items 8A, 22A, 34 and 45

1шт.

229817A1

ATTACHMENT

THROTTLE - foot, order from Machinery Price List, includes instructions, tractor P I N JJA0064978 and after, Includes: items 1-46, except for items 8, 22, 34 and 45

1шт.
