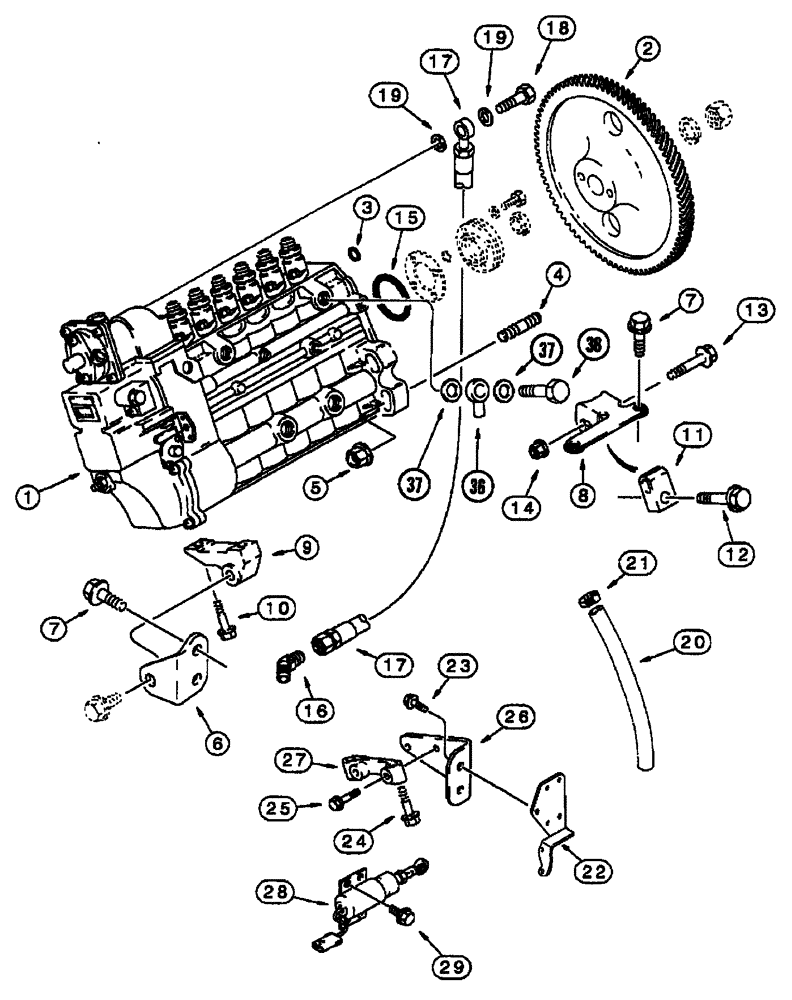

Запчасти Case IH 7250 (3-040) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 EMISSIONS CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM

1

J926886

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, component parts not service separately

1шт.

1

JR926886

REMAN-INJECTION PUMP

ASSEMBLY - fuel, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

1

JC926886

CORE-INJECTION PUMP

Return Number - use this part number to return for credit when using a remanufactured assembly

1шт.

2

J931380

GEAR

fuel pump, replaces J923578 gear

1шт.

3

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING - quad, fuel injection pump

1шт.

4

J915036

STUD

pump mounting

4шт.

5

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

6

J930841

SUPPORT

injection pump, injection pump to cylinder block

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Support to block

4шт.

8

J930382

HOLDER

BRACKET - fuel pump

1шт.

9

J926273

SUPPORT

SUPPORT -

1шт.

10

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

Injection pump to lower support

2шт.

11

J930383

SUPPORT

bracket to fuel pump

1шт.

12

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 30 mm, Support to pump

1шт.

13

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

Upper bracket to support

1шт.

14

J900589

NUT

hex flange, special, 8 mm

1шт.

15

J924605

SEAL

SEAL - rectangular ring, injection pump to gear housing

1шт.

16

J931928

ELBOW

90 degree

1шт.

17

J917074

FUEL HOSE,508.00 mm

1шт.

18

J918002

BANJO BOLT

banjo

1шт.

19

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.

20

J918176

HOSE,7.90 mm ID x 330.00 mm

Prior to Engine Serial Number 45361257

1шт.

20

J930842

FUEL HOSE,330.00 mm

Engine Serial Number 45361257 And After, Use With 235337A1 Hose, See Figure 3-60 Item 53

1шт.

21

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type

1шт.

22

J930252

SUPPORT

BRACKET - solenoid mounting

1шт.

23

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

24

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 25 mm, class 10.9

2шт.

25

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

26

J920639

BRACE

fuel pump

2шт.

27

J922672

HOLDER

SUPPORT - fuel pump

1шт.

28

J930235

SOLENOID

fuel shutoff, 12 volt

1шт.

29

L53928

BALL JOINT

JOINT - ball, female, not shown

1шт.

30

492-11025

LOCK WASHER,1/4"

Not shown

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

Not shown

1шт.

32

J925171

BOOT

protective, plunger, not shown

1шт.

33

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP Not shown

1шт.

34

J924407

SPRING

return, plunger, not shown

1шт.

35

J912886

VALVE

overflow

1шт.

36

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

37

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

38

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

Hex flange, 6 - 1.0 x 12 mm, Not shown

4шт.

39

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, fuel shut-off solenoid to injection pump, not shown

1шт.
