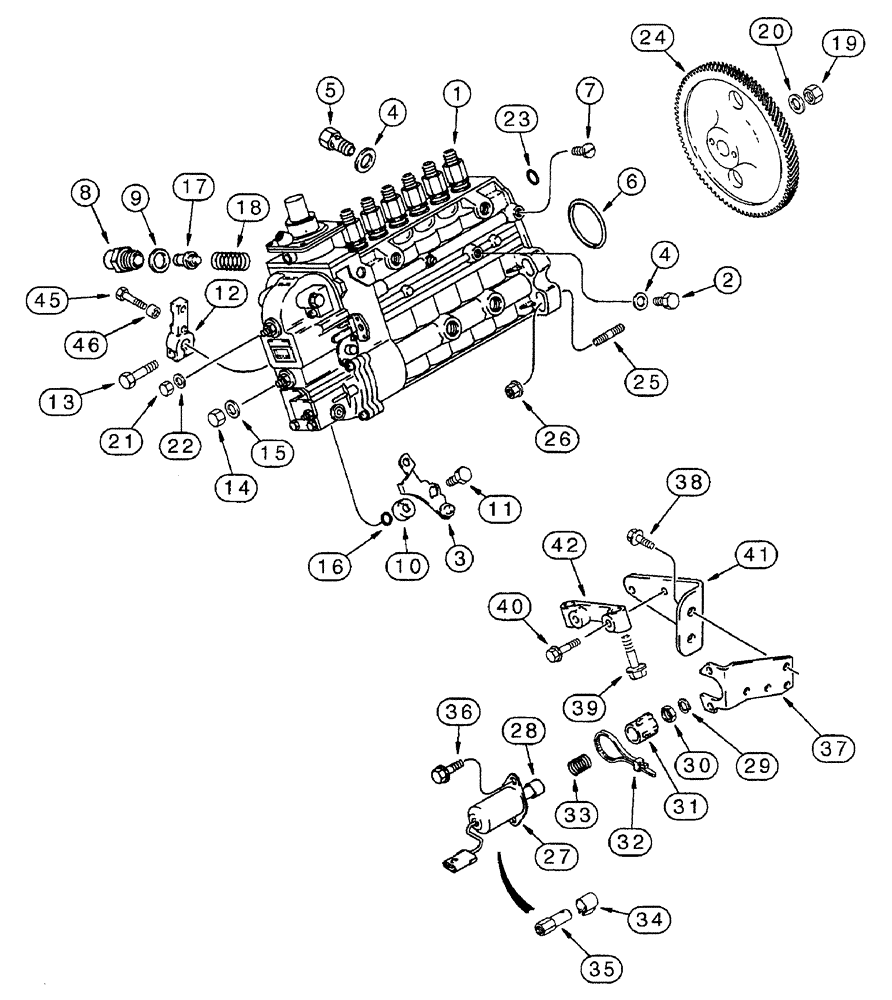

Запчасти Case IH 7250 (3-038) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM

1

J926162

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, component parts not serviced separately

1шт.

1

JR926162

REMAN-INJECTION PUMP

Assembly, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

1

JC926162

CORE-INJECTION PUMP

Return Part Number - use this part number to return for credit when using a remanufactured assembly

1шт.

2

J913681

BANJO BOLT

VALVE - bolt, overflow

1шт.

3

J923230

LEVER

pump shutoff

1шт.

4

J920904

WASHER

sealing

2шт.

5

J920905

BANJO BOLT

banjo

1шт.

6

J920906

O-RING,79.5 mm ID x 2 mm

O-RING

1шт.

7

J920907

SCREW,Hex, Slotted, M6 x 1 x 10mm

vent

1шт.

8

J920909

NUT

cap

1шт.

9

J920910

PACKING RING

WASHER - sealing

1шт.

10

J920913

COVER

return spring

1шт.

11

J920914

BOLT

shutoff lever

1шт.

12

J920915

CONTROL LEVER

throttle

1шт.

13

J920916

BOLT,Hex, M6 x 1 x 22mm

BOLT - throttle lever

1шт.

14

J920917

NUT

cap

1шт.

15

J920919

WASHER

sealing

2шт.

16

J920920

O-RING,9 mm ID x 2.5 mm

O-RING

1шт.

17

J921369

PIN

timing

1шт.

18

J921370

SPRING

timing pin

1шт.

19

J921372

LOCK NUT

hex lock

1шт.

20

J921373

LOCK WASHER

1шт.

21

J921375

NUT

cap, low idle screw

1шт.

22

J921376

WASHER

sealing

1шт.

23

J916284

O-RING

O-RING - fuel injection pump to gear housing

1шт.

24

J920553

GEAR

fuel pump

1шт.

25

J915036

STUD

pump mounting

2шт.

26

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

Replaces J902662 nut

4шт.

27

J928160

SOLENOID VALVE

fuel shutoff, 12 volt, replaces J923257 solenoid

1шт.

28

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order one each of items 34 and 35

1шт.

29

492-11025

LOCK WASHER,1/4"

1шт.

30

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

31

J925171

BOOT

protective, plunger

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J923887

SPRING

return, plunger

1шт.

34

J923885

SPRING

CLIP - spring

1шт.

35

J928173

BALL JOINT

SOCKET

1шт.

36

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

2шт.

37

J923256

SUPPORT

BRACKET - solenoid mounting

1шт.

38

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

39

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 25 mm, class 10.9

2шт.

40

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

41

J920639

BRACE

fuel pump

2шт.

42

J922672

HOLDER

SUPPORT - fuel pump

1шт.
