Запчасти Case IH 7250 (3-028) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 EMISSIONS CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM

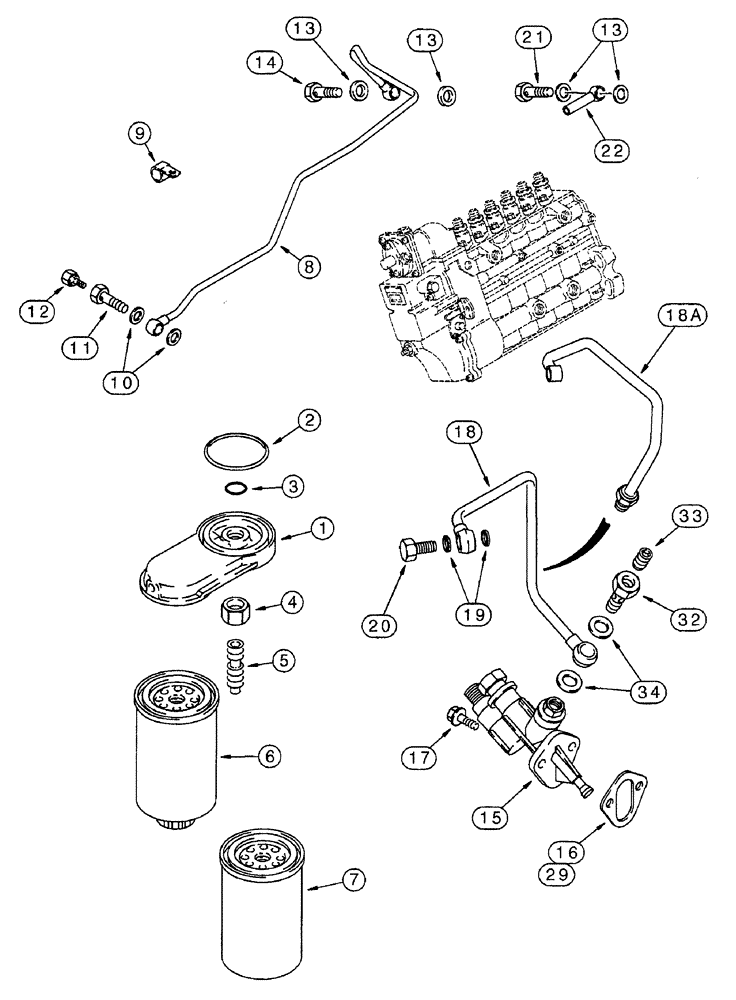

Схема запчастей Case IH 7250 - (3-028) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 EMISSIONS CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM
18a
2
3
6
29
20
18
13
15
13
9
11
19
34
8
32
13
4
5
10
14
16
1
12
22
17
7
33
21

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

HEAD - fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, adapter

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

A77470

SEPARATOR

KIT - fuel

1шт.

6

J930942

SEPARATOR

Primary, Replaces J925274 filter

1шт.

7

J903640

FILTER, FUEL

secondary, secondary

1шт.

8

J930405

FUEL TUBE,8 mm OD x 468.4, 103.5 mm L

supply, fuel

1шт.

9

J914711

CLIP

CLAMP - P-type

1шт.

10

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, replaces J918191 washer

2шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

12

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

15

J925709

PUMP

fuel transfer, see J926764 repair kit below

1шт.

16

J923054

GASKET

mounting, fuel transfer pump

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

J918537

FUEL TUBE,8 mm OD x 278.9 mm L

supply, used with items 32, 33 and 34, if used

1шт.

18a

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

supply, if used

1шт.

19

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

20

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

21

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

22

J912886

VALVE

overflow

1шт.

23

J926764

GASKET KIT

transfer pump repair, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

25

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

2шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

29

J923054

GASKET

mounting, fuel transfer pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

32

J914037

BANJO BOLT

banjo connector, if used

1шт.

33

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

If used

1шт.

34

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, if used

2шт.

Выбрано товаров: 35
