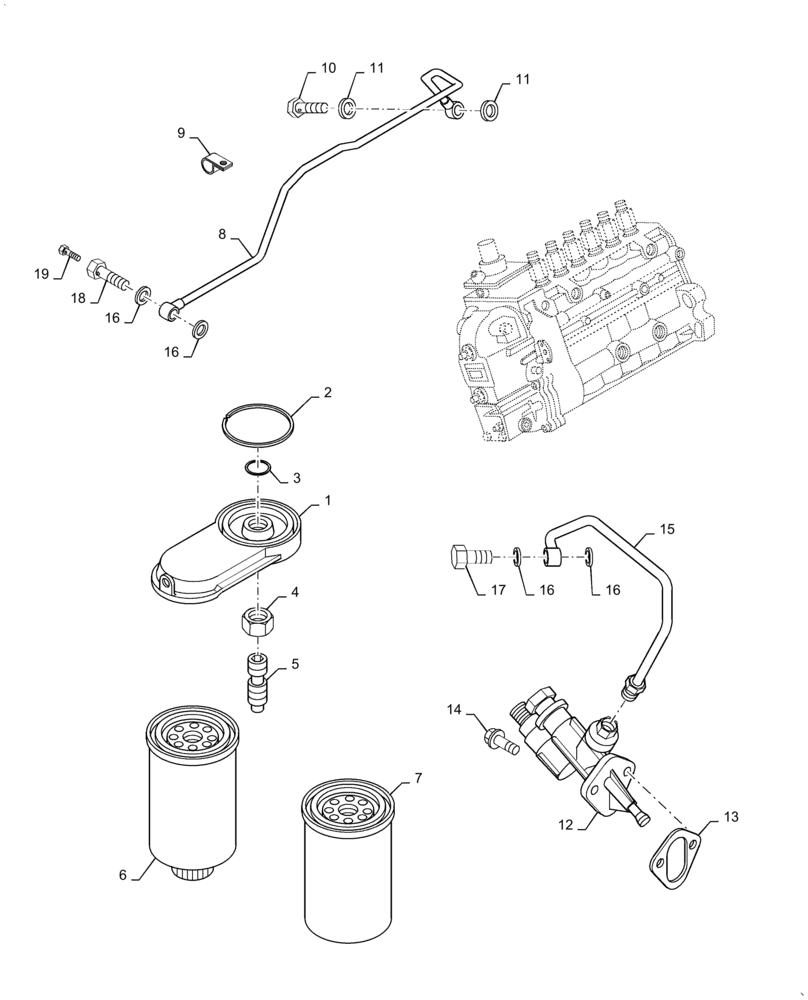

Запчасти Case IH 7250 (3-026) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, adapter

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, replaces J903845 adapter

1шт.

A77470

SEPARATOR

KIT - fuel

1шт.

6

J930942

SEPARATOR

Primary, Replaces J925274 filter

1шт.

7

J903640

FILTER, FUEL

secondary, secondary

1шт.

8

J921313

FUEL TUBE

TUBE - fuel supply

1шт.

9

J914711

CLIP

CLAMP - P-type

1шт.

10

J907541

BANJO BOLT

M14

2шт.

11

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

12

J917998

PUMP

fuel lift and transfer, see J926764 repair kit below

1шт.

13

J923054

GASKET

mounting, fuel transfer pump, replaces J914304 gasket

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

15

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

supply

1шт.

16

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

4шт.

17

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

18

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

19

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

20

J926764

GASKET KIT

transfer pump repair, replaces J923615 kit, not shown

1шт.
