Запчасти Case IH 7250 (3-014) - ANEROID AND WASTEGATE SYSTEM, 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM

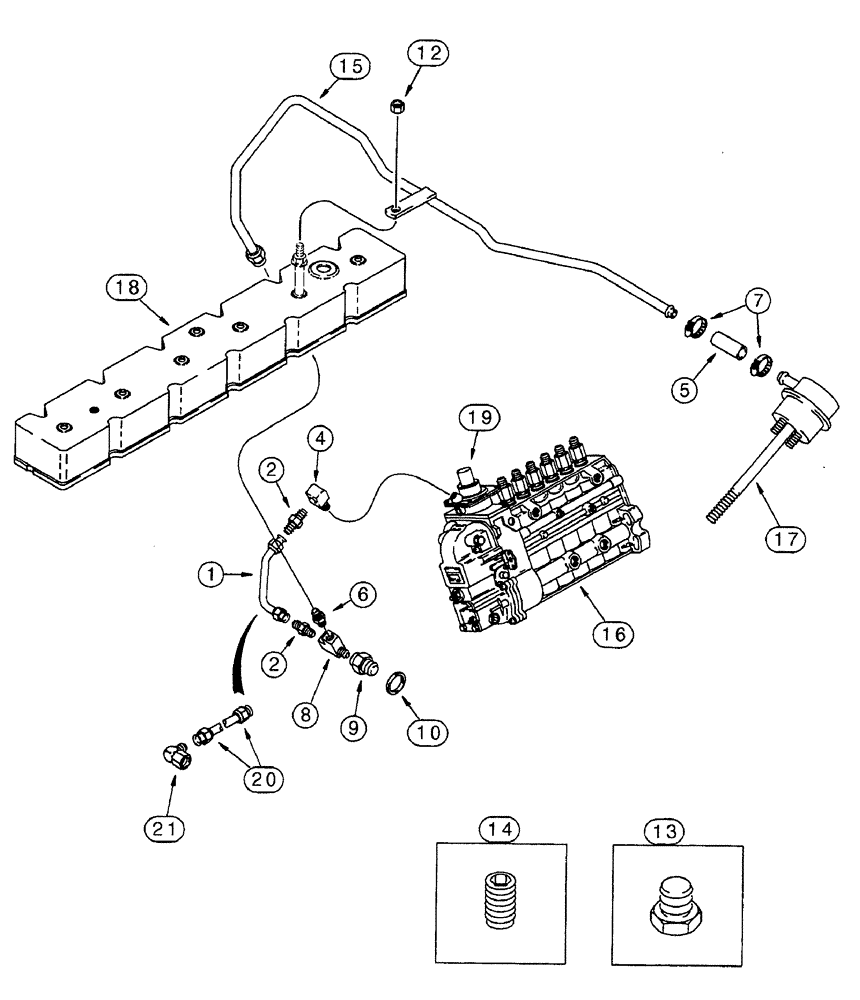

Схема запчастей Case IH 7250 - (3-014) - ANEROID AND WASTEGATE SYSTEM, 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM
20
16
15
5
17
19
14
10
6
9
21
18
8
4
2
7
2
13
1
12

Артикул

Название

Примечание

Количество

1

J921304

TUBE,4.76 mm OD x 101.7 mm L

TUBE - control, air fuel, no longer used, order A77821 kit below

1шт.

2

J909552

CONNECTION

ADAPTER - straight, 1/8 PT x 7/16 inch

1-2шт.

4

J922150

ELBOW

street, 90 degree, no longer used, order A77821 kit below

1шт.

5

J920871

HOSE,1294.00 mm

1294 mm (51 inch) long

2шт.

6

A77796

CONNECTOR, ELEC

CONNECTOR ADAPTER - straight, 1/4 barb end x 1/8 inch PT

1шт.

7

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj, 1/4 - 5/8 inch dia, replaces J920719 clamp

4шт.

8

J920592

TEE

street pipe

1шт.

9

J921594

PLUG

threaded orifice, tee to cylinder head

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, plug to cylinder head

2шт.

12

J900589

NUT

hex flange, special, 8 mm, aneroid tube to cover mounting stud, see item 5A, Figure 2-64

1шт.

13

J908110

PLUG

threaded

2шт.

14

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

15

J922640

TUBE,6.35 mm OD x 775.5 mm L

TUBE - wastegate

1шт.

16

J926162

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, parts list Figure 3-38

1шт.

17

REF

INSTRUCTION

ACTUATOR - turbo wastegate, see Figure 2-52

1шт.

18

J927907

VALVE COVER

replaces J907734 cover, see Figure 2-64

1шт.

A77821

COVER

KIT - aneroid cover

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - aneroid

1шт.

20

J926738

TUBE,4.76 mm OD x 110 mm L

TUBE - aneroid, nylon

1шт.

21

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16 tube OD x 1/8 inch PT

1шт.

22

J921376

WASHER

sealing, not shown

2шт.

Выбрано товаров: 21
