Запчасти Case IH 7250 (3-012) - FUEL INJECTION SYSTEM, 6TA-830 EMISSION CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM

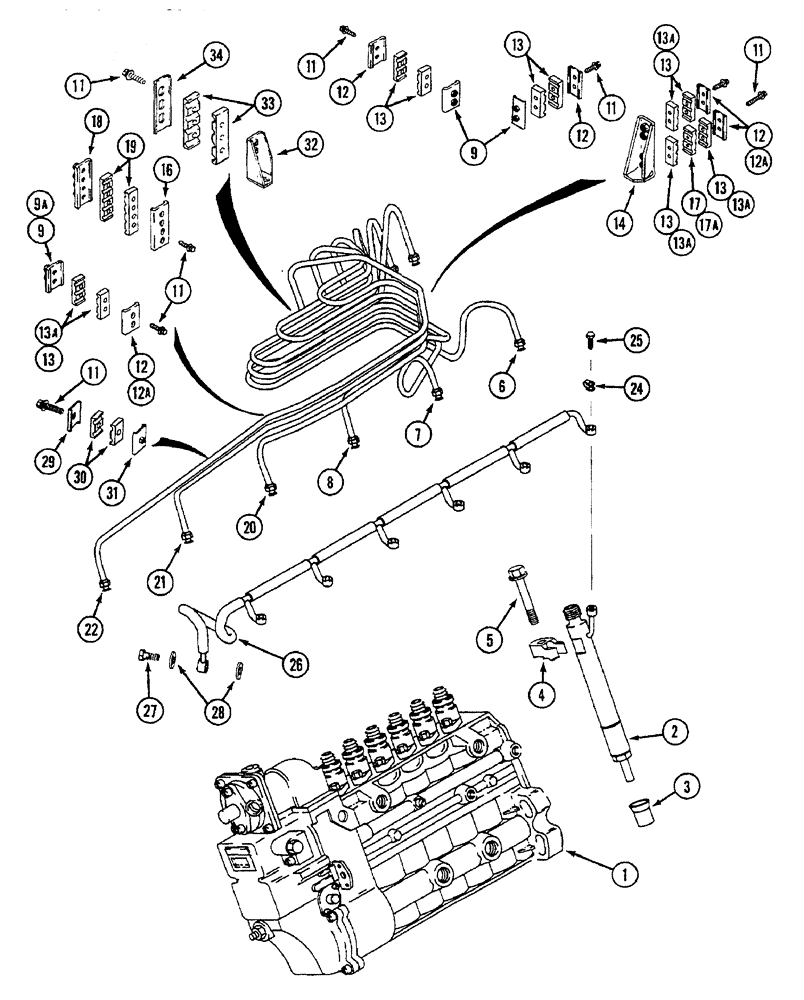

Схема запчастей Case IH 7250 - (3-012) - FUEL INJECTION SYSTEM, 6TA-830 EMISSION CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM
13
16
19
18
11
12
27
12a
26
25
12
32
17a
5
3
11
21
9
24
34
29
13
13a
20
28
11
8
11
7
9a
33
12
13
1
4
12
13
13
14
22
12a
31
13a
13a
11
2
9
11
13
6
17
30
13a

Артикул

Название

Примечание

Количество

1

J926886

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, component parts not serviced separately, see Figure 3-40 for mounting parts

1шт.

1

JR926886

REMAN-INJECTION PUMP

1шт.

1

JC926886

CORE-INJECTION PUMP

Return Number

1шт.

2

J926787

INJECTOR ASSY.

fuel, parts list Figure 3-46

6шт.

2

JR926787

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

2

JC926787

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, class 12.9

6шт.

6

J929801

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J929802

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J929803

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

3шт.

9a

J917716

BRACE

BRACKET - fuel tube, supply

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10-14шт.

12

J904519

SUPPORT

tube retaining

5шт.

12a

J904519

SUPPORT

tube retaining

3шт.

13

J917747

CLAMP

fuel tube

10шт.

13a

J917747

CLAMP

fuel tube

6шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

15

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

16

J910686

BRACE

tube retaining

1шт.

17

J917748

CLAMP

fuel tube

1шт.

17a

J921415

HOLDER

BRACE - tube

1шт.

18

J917740

BRACE

tube retaining

1шт.

19

J917749

CLAMP

tube

2шт.

20

J929804

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J929805

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J929806

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

7шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J917717

BRACE

BRACKET - fuel tube

1шт.

30

J917746

CLAMP

fuel tube

2шт.

31

J904711

SUPPORT

BRACKET - fuel tube

1шт.

32

J921416

HOLDER

BRACE - tube

1шт.

33

J918786

FIXING BRACKET

CLAMP - vibration

2шт.

34

J918785

BRACE

tube

1шт.

Выбрано товаров: 40
