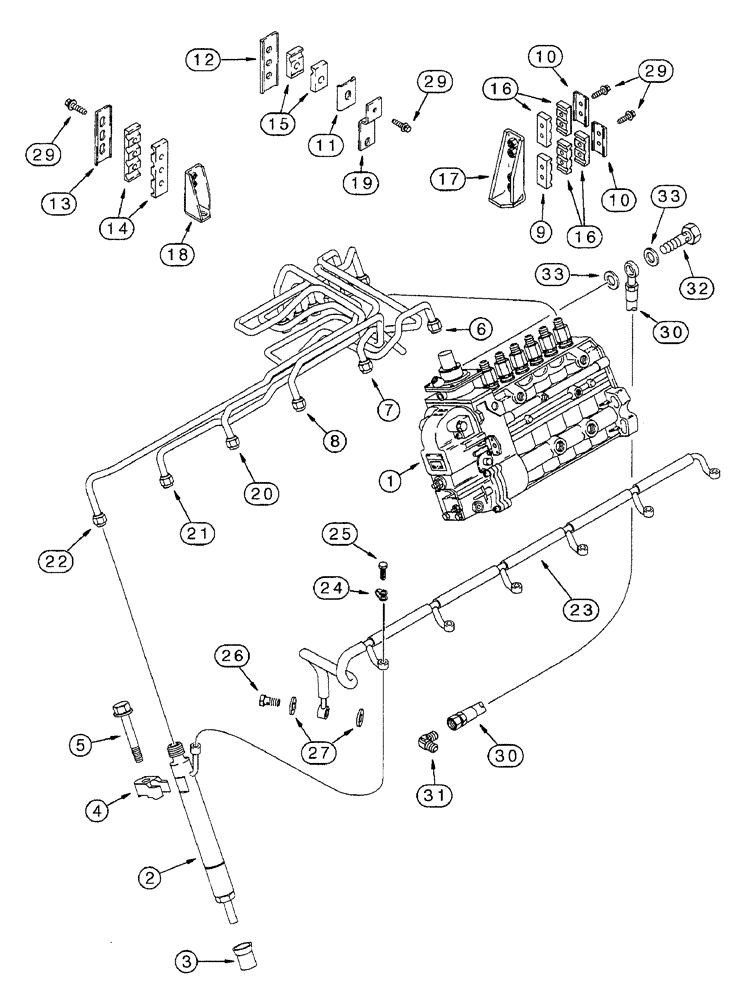

Запчасти Case IH 7250 (3-010) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM

1

J926162

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, parts list Figure 3-38

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list page 3-43

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J921307

FUEL TUBE

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J921308

FUEL TUBE

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J921309

FUEL TUBE

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube

1шт.

10

J904519

SUPPORT

tube retaining

3шт.

11

CURJ904711

CLAMP

BRACKET - fuel tube

1шт.

12

J918784

CLAMP

BRACE - tube

1шт.

13

J918785

BRACE

tube

1шт.

14

J918786

FIXING BRACKET

CLAMP - vibration

2шт.

15

J919359

CLAMP

vibration

2шт.

16

J917747

CLAMP

fuel tube

6шт.

17

J921415

HOLDER

BRACE - tube

1шт.

18

J921416

HOLDER

BRACE - tube

1шт.

19

J921418

HOLDER

BRACE - tube

1шт.

20

J921310

FUEL TUBE

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J921311

FUEL TUBE

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J921312

FUEL TUBE

TUBE - fuel injector, No. 6 cylinder

1шт.

23

J920595

TUBE ASSY.

fuel drain

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

7шт.

26

J924726

BANJO BOLT

check, replaces J916360 valve

1шт.

27

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 washer

13шт.

30

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump

1шт.

31

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

32

J918002

BANJO BOLT

banjo, hose to injection pump

1шт.

33

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm, banjo screw to injection pump

2шт.
