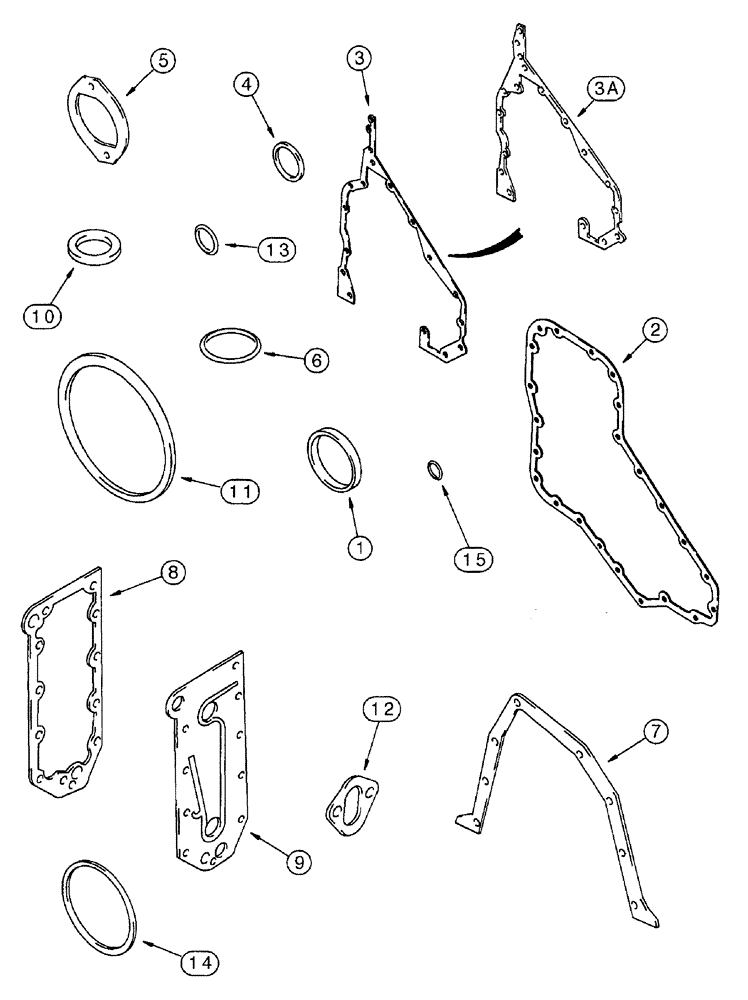

Запчасти Case IH 7250 (2-132) - CYLINDER BLOCK GASKET KITS, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A77726
KIT
gasket, cylinder block, prior to engine serial number 45075642, no longer available, order A77855 gasket kit and either J917779 or J917780 front cover gasket depending on engine application
1шт.
For complete engine overhaul order (1) valve grind kit, Figure 2-130, (1) cylinder block kit and (1) oil pan gasket kit, Figure 2-60, front and rear crankshaft seal kit, Figure 2-108, and required cylinder head gasket, Figure 2-64.
1шт.
A77839
KIT
gasket, cylinder block, engine serial number 45075642 and after, no longer available, order A77855 gasket kit and J823494 sealant
1шт.
For complete engine overhaul order (1) valve grind kit, Figure 2-130, (1) cylinder block kit and (1) oil pan gasket kit, Figure 2-60, front and rear crankshaft seal kit, Figure 2-108, and required cylinder head gasket, Figure 2-64.
1шт.
1
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
front access cover
1шт.
2
J917779
GASKET,0.98mm Thk
front gear cover, high mount engine, used in A77726 kit
1шт.
2
J917780
GASKET,0.98mm Thk
GASKET - front gear cover, low mount engine, not used in this application, use J917779 gasket
1шт.
3
J281721
GASKET
housing, gear, used in A77726 kit only
1шт.
3a
J926757
GASKET
housing, gear, used in A77839 kit only
1шт.
4
J915772
SEAL,Square, 1.68mm Thk x 29.87mm ID, -25
SEALRING Quad, timing pin housing
1шт.
5
J919601
GASKET
access cover plate
1шт.
6
J902089
SEAL,0.139" Thk x 3.859" ID, -241
water pump
1шт.
10
J901798
SEALING WASHER
WASHER - sealing, not used in this application
1шт.
11
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
SEALRING flywheel housing to block, not used in this application
1шт.
12
J923054
GASKET
mounting, fuel transfer pump, replaces J914304 gasket
1шт.
13
238-5212
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
Not used in this application
1шт.
Выбрано товаров: 21
