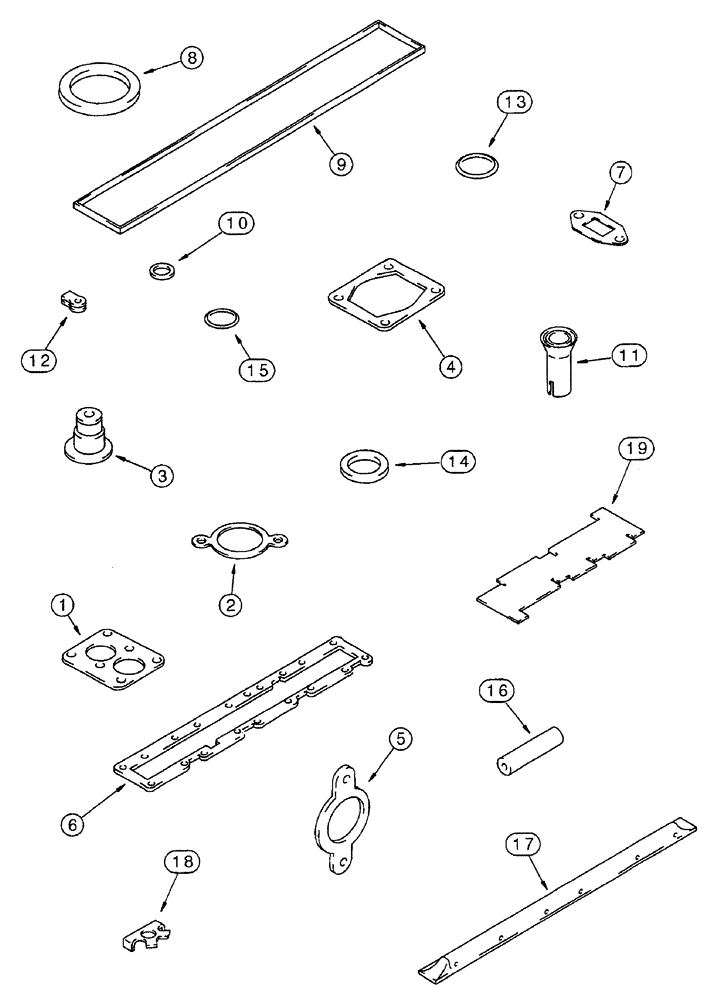

Запчасти Case IH 7250 (2-130) - VALVE GRIND GASKET KITS, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (02) - ENGINE

A77794

GASKET KIT

valve grind

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on page 2-65.

1шт.

1

J914310

GASKET,0.8mm Thk

thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

outlet tube, water, thermostat housing

1шт.

3

J915707

SEAL

intake and exhaust valve stem and guide

12шт.

4

J911941

GASKET

mounting, turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick, replaces J921787 gasket

6шт.

6

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

7

J914388

GASKET

turbo oil drain tube, turbocharger

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

cap, oil fill cap to valve cover

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

valve cover, rocker

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

connector, fuel injection nozzle

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover

1шт.

14

J906659

SEAL

injector nozzle, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector

1шт.

17

J919677

TUBE

oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

bolt, exhaust manifold

12шт.

19

J823921

GAUGE

cylinder head, bolt length

1шт.
