Запчасти Case IH 7250 (2-108) - CRANKSHAFT, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (02) - ENGINE

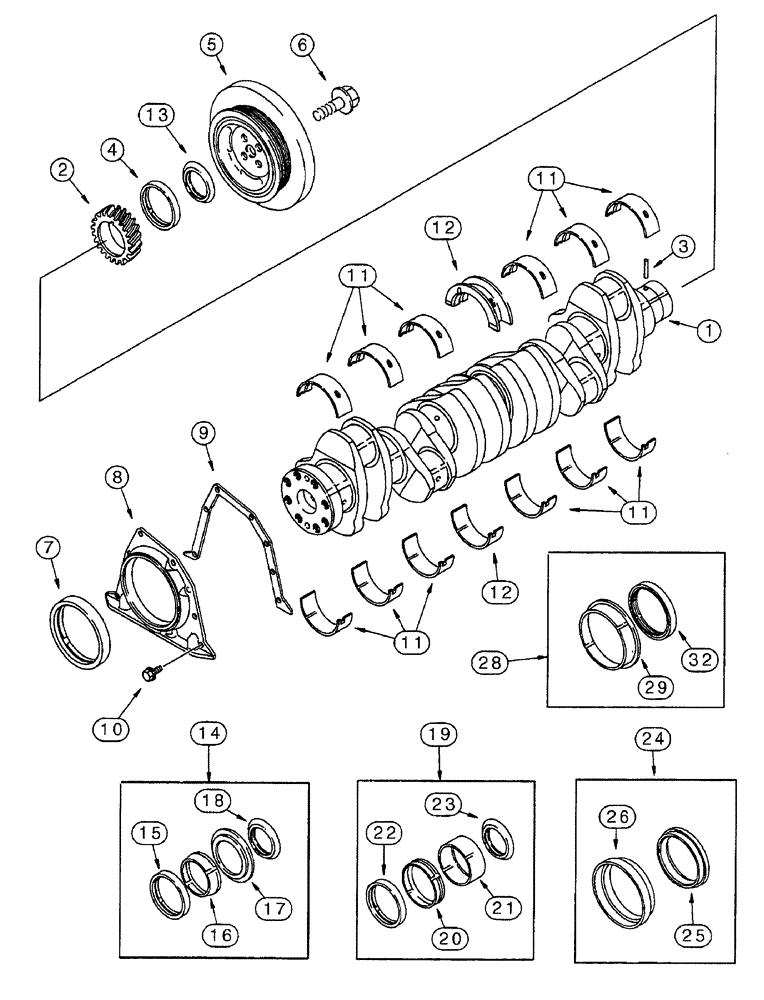

Схема запчастей Case IH 7250 - (2-108) - CRANKSHAFT, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (02) - ENGINE
5
22
11
13
26
15
32
12
4
10
3
17
12
16
20
6
2
14
28
9
8
11
18
21
25
1
11
29
23
11
7
24
19

Артикул

Название

Примечание

Количество

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, 7230 and 7240 tractors, no longer available, order J918986 new crankshaft below

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, 7230 and 7240 tractors

1шт.

JR918986

REMAN-CRANKSHAFT

ASSEMBLY - engine, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order J918986 new crankshaft below

1шт.

JC918986

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft core for credit when using a remanufactured assembly, 7250 tractor only

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY - engine, new, 7230 and 7240 Tractors, no longer available, order J918986 crankshaft assembly below

1шт.

1

J918986

CRANKSHAFT

ASSEMBLY - engine, new

1шт.

2

J918380

GEAR

crankshaft, 7230 and 7240 Tractors, no longer available, order J918776 gear below

1шт.

2

J918776

GEAR

crankshaft, steel

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order item 14, A77790 kit

1шт.

5

J925568

DAMPER,246mm OD

PULLEY - crankshaft vibration damper

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order item 24, A77809 kit

1шт.

8

J921042

REAR COVER

RETAINER - seal

1шт.

9

J914301

GASKET

rear cover retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

8шт.

11

A77711

BEARING LINER

main, upper and lower set, standard

6шт.

11

A77712

BEARING LINER

main, upper and lower set, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

main, upper and lower set, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

main, upper and lower set, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

main, upper and lower set, 1.0 mm undersize

6шт.

12

A77843

BEARING LINER

main thrust, upper and lower set, standard, replaces A77706 bearing

1шт.

12

A77844

BEARING LINER

main thrust, upper and lower set, 0.25 mm undersize, replaces A77707 bearing

1шт.

12

A77845

BEARING LINER

main thrust, upper and lower set, 0.50 mm undersize, replaces A77708 bearing

1шт.

12

A77846

BEARING LINER

main thrust, upper and lower set, 0.75 mm undersize, replaces A77709 bearing

1шт.

12

A77847

BEARING LINER

main thrust, upper and lower set, 1.0 mm undersize, replaces A77710 bearing

1шт.

12

A77848

CRANKSHAFT BEARING

main thrust, upper and lower set, standard journal diameter, 0.25 mm oversize thrust width

1шт.

12

A77849

CRANKSHAFT BEARING

main thrust, upper and lower set, standard journal diameter, 0.50 mm oversize thrust width

1шт.

12

A77850

CRANKSHAFT BEARING

main thrust, upper and lower set, 0.50 mm undersize journal diameter, 0.50 mm oversize thrust width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, front seal, order item 14, A77790 kit

1шт.

14

A77790

SEAL KIT

oil, crankshaft front

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, front seal

1шт.

19

A77808

SERVICE KIT

wear sleeve, crankshaft front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

dust

1шт.

24

A77809

GASKET KIT

oil seal, crankshaft rear; Incl 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

28

A77810

SERVICE KIT

KIT - oil, crankshaft rear, Incl 29, 32

1шт.

29

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

Выбрано товаров: 46
