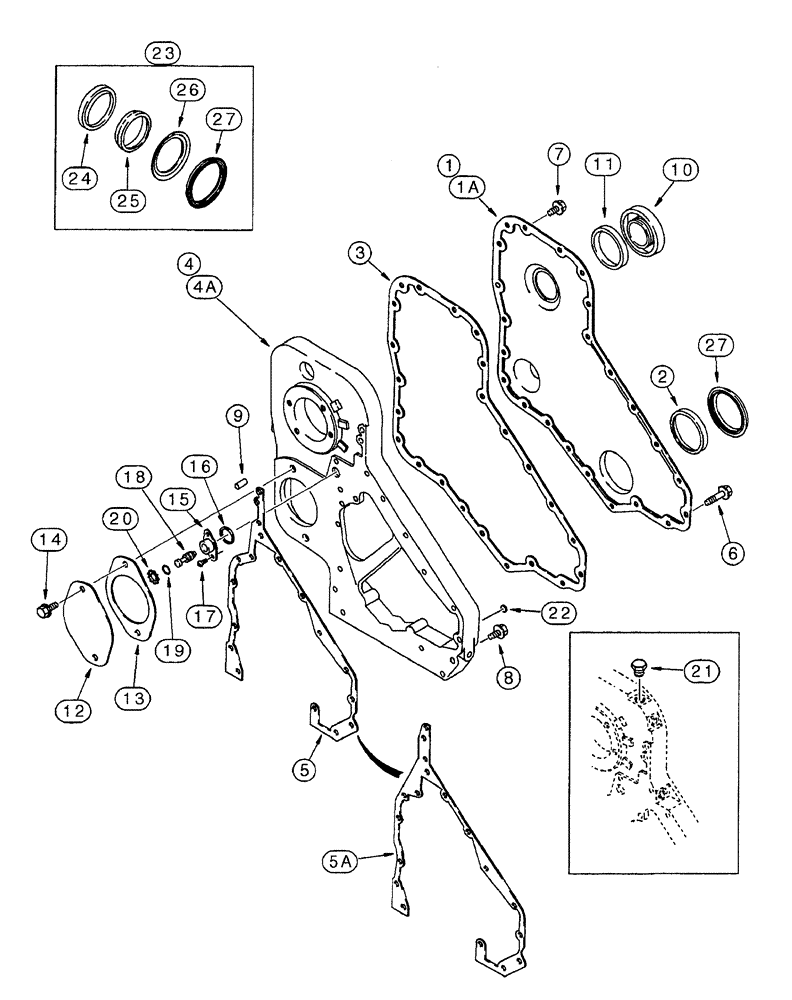

Запчасти Case IH 7250 (2-028) - FRONT GEAR COVER, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR P.I.N. JJA0064978 (02) - ENGINE

1

J924422

COVER ASSY

gear, front, prior to engine serial number 45075642

1шт.

1a

J926838

COVER

gear, front, high PTO, engine serial number 45075642 and after

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order item 23, A77790 kit below

1шт.

3

J917779

GASKET,0.98mm Thk

front gear cover, prior to engine serial number 45075642

1шт.

3a

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, apply between front gear cover and timing gear housing, not shown, engine serial number 45075642 and after

1шт.

4

J917316

MOTOR HOUSING

gear, prior to engine serial number 45075642, no longer available, order item 4A, J926719 housing

1шт.

4a

J926719

MOTOR HOUSING

gear, high PTO, engine serial number 45075642 and after

1шт.

5

J281721

GASKET

housing, gear, prior to engine serial number 45075642, no longer available, order J929253 gasket below

1шт.

5a

J929253

GASKET

housing, gear, engine serial number 45075642 and after, replaces J926757 gasket

1шт.

6

J926863

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 50 mm, class 10.9, replaces 845-8050 bolt

6шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, replaces 845-8016 bolt

17шт.

8

J926846

FLANGE BOLT

BOLT - hex flange, 8 - 1.25 x 20 mm, class 10.9, replaces 845-8020 bolt

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

10

J903463

PLUG,M63 x 5

front access

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

12

J914868

COVER

PLATE - access cover, flat

1шт.

13

J931608

GASKET

access cover plate, replaces J919601 gasket

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

15

J919683

HOUSING

timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

19

J913994

O-RING

sealing

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

(Replaces J904849)

1шт.

21

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

3шт.

22

A77552

PLUG

expansion, 29/64 inch diameter

1шт.

23

A77790

SEAL KIT

oil, crankshaft front

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

27

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust

1шт.
