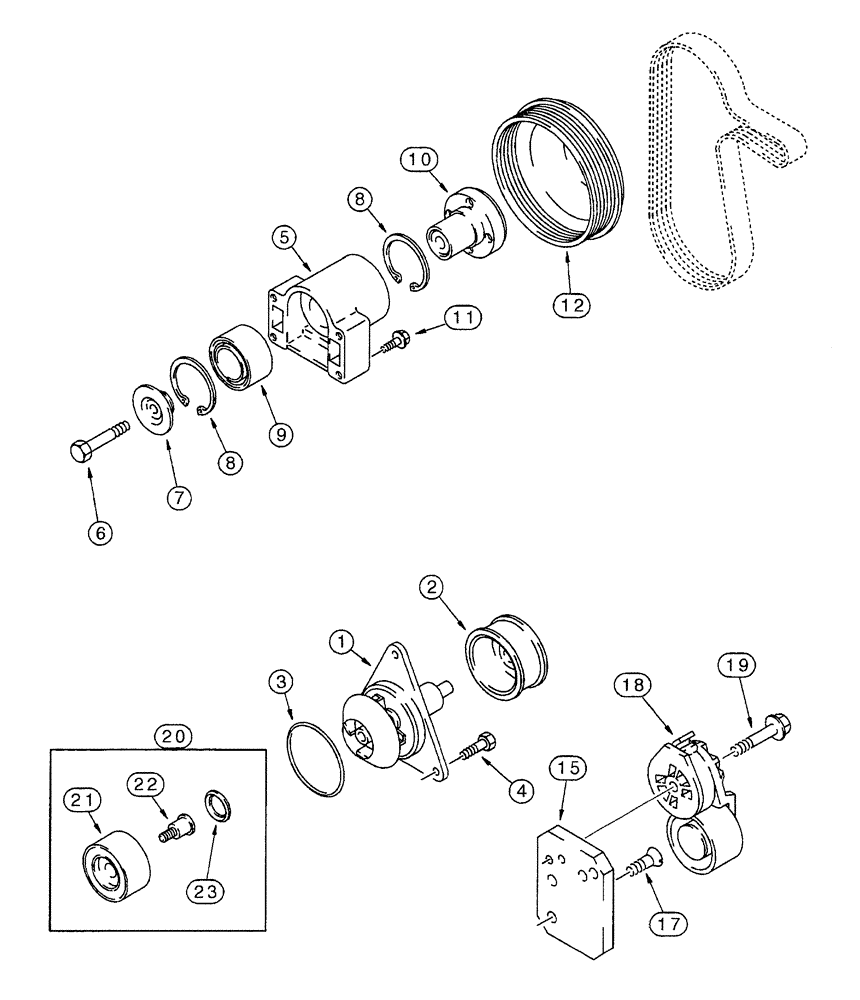

Запчасти Case IH 7250 (2-024) - WATER PUMP SYSTEM, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR P.I.N. JJA0064978 (02) - ENGINE

J802975

PUMP, WATER

KIT - water pump, replaces A77704 kit

1шт.

J800976R

REMAN-WATER PUMP

7230, 7240, 7250, All 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR P.I.N. JJA0064978 (10/93-12/96), Reman for New P/N J802975

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water, new

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J929458

SUPPORT

SUPPORT ASSEMBLY - fan, replaces J910738 support

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

BOLT - hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

Fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

15

J925188

SUPPORT

BRACKET - belt tensioner, replaces J911473 bracket

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

3шт.

18

J934817

BELT TENSIONER

belt, replaces J918944 tensioner

1шт.

19

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy, Belt tensioner to mounting bracket

1шт.

20

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, item 15

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - bolt .

1шт.
