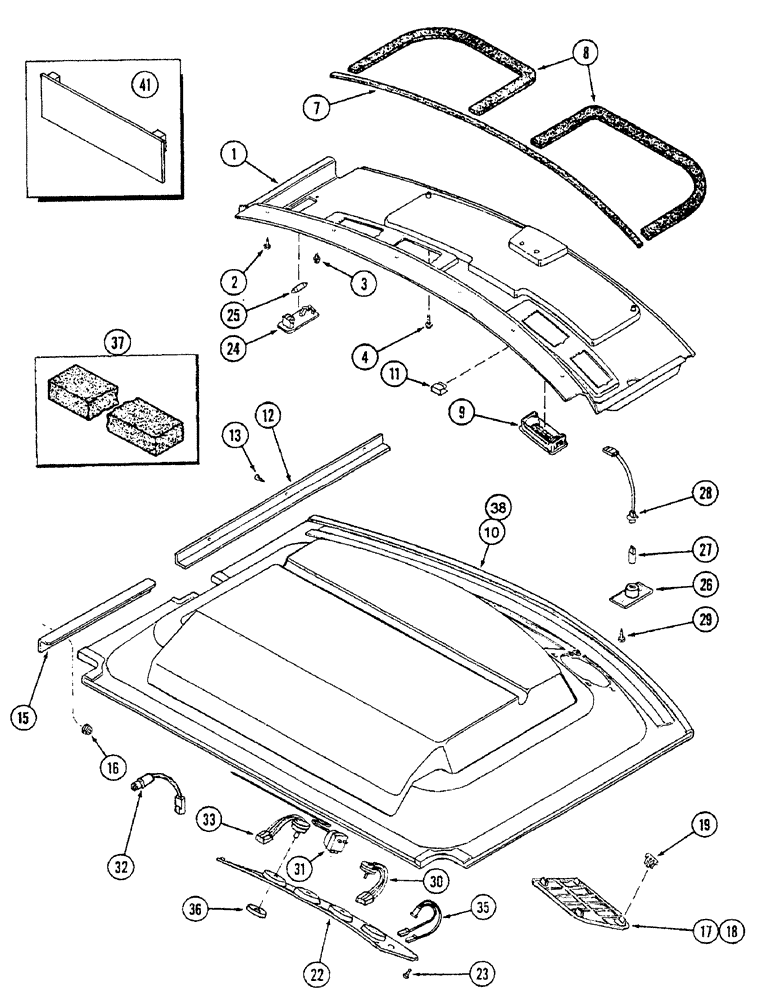

Запчасти Case IH 7250 (9-128) - CAB, HEADLINER AND CONTROL PANEL (09) - CHASSIS/ATTACHMENTS

1

96753C1

PANEL ASSY.

HEADLINER - cab, front

1шт.

2

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch

6шт.

3

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

self-tapping, pan Phillips head, No. 10-16 x 1/2 inch, replaces 143306C1 screw

2шт.

4

97172C1

SELF-TAP SCREW,Cross Pan Hd, #10-16 x 1"

Replaces 1971376C1 screw

2шт.

7

97168C1

STRIP

SEAL - foam, 1100 mm (43-5/16 inch) long, cut from 187874C1 bulk seal

1шт.

8

98390C1

SEALING STRIP

SEAL - 13 (1/2) wide x 1000 (39-3/8) long x 25 mm (1 inch) thick, cut from 1974884C1 bulk seal

2шт.

9

1958752C1

VENT

LOUVER - bezel, front window

8шт.

10

97267C5

ROOF

HEADLINER - cab, rear, used on models with oval speakers, if used

1шт.

11

97201C1

CLIP

spring, U-shaped

4шт.

12

97016C1

ANGLE

SUPPORT - front, headliner left

1шт.

13

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

3шт.

15

97024C1

SUPPORT ASSY.

headliner, rear left

1шт.

16

1330157C1

FLANGE NUT

self-locking, hex flange, special, 1/4 inch NC

2шт.

17

96979C1

GRILLE

speaker, left

1шт.

18

96980C1

GRILLE

speaker, right

1шт.

19

97058C1

CLIP

spring, retaining

1шт.

22

96813C2

PANEL ASSY.

switch

1шт.

23

1270762C1

SELF-TAP SCREW

pan head Phillips, No. 10-16 x 3/4 inch

6шт.

24

1983391C1

LAMP,12V, 10W

dome

1шт.

25

E35556

BULB,12V, 10W

Lamp

1шт.

26

83882C91

LAMP

ASSEMBLY - console illumination, console

1шт.

27

D71346

TAIL LAMP,12V

lamp, No. 168

1шт.

28

107329C1

WIRE HARNESS

AND CABLE - bulb

1шт.

29

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Replaces 104033C2 screw

2шт.

30

92100C2

SWITCH

blower

1шт.

31

92101C1

SWITCH

thermostat

1шт.

32

122579A1

SWITCH, A/C LOW PRES

Low, air conditioner

1шт.

33

92115C2

SWITCH

wiper, windshield

1шт.

35

1964672C1

LIGHT

indicator, amber, 14 volt, air conditioner

1шт.

36

96893C1

KNOB

control, switch

4шт.

37

1977668C1

FOAM

PAD - headliner, front

1шт.

38

198738A1

PADDING

HEADLINER - cab, rear, used on models with round speakers, if used, not shown

1шт.

39

117987C1

SPRING NUT

U-type, No. 10-16, not shown

6шт.

40

199740A1

NUT

NUT - U-type, No. 8-32, not shown

8шт.

41

1535219C1

COVER

cover, radio opening

1шт.

42

1975866C1

PLATE ASSY.

cover, decal, radio opening, models without radio, shown on Figure 9-150

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.

1974884C1

SEAL

STRIP - bulk roll, 13 (1/2) wide x 15240 (600) long x 25 mm (1 inch)

1шт.
