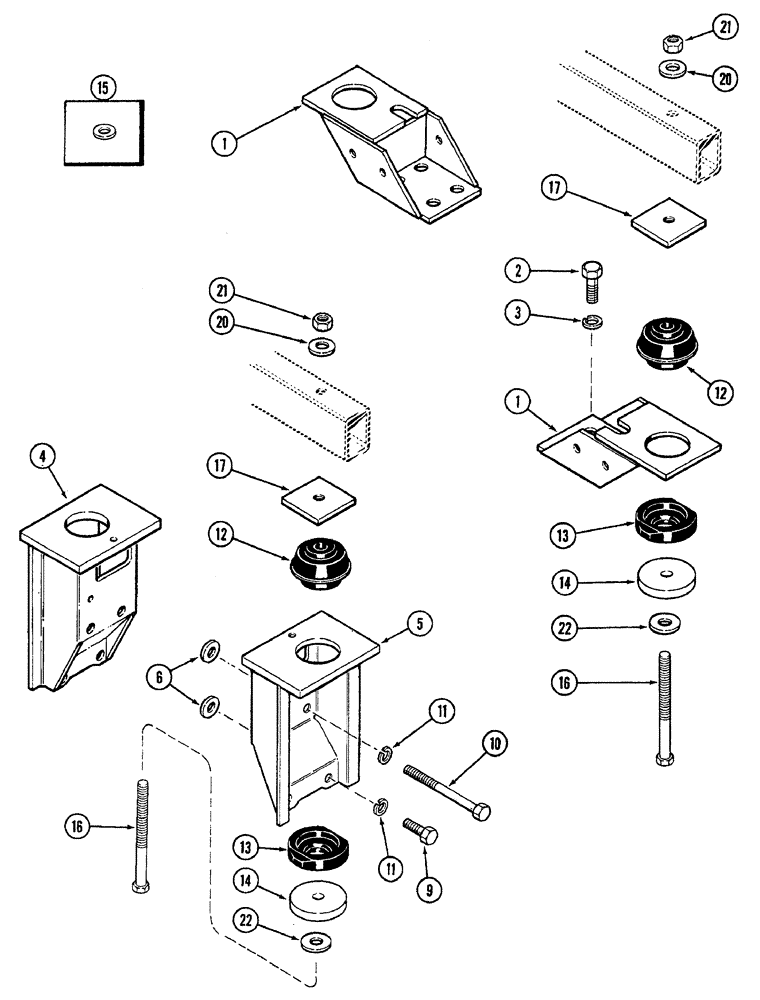

Запчасти Case IH 7250 (9-100) - CAB MOUNTS (09) - CHASSIS/ATTACHMENTS

1

96523C2

BRACKET

mounting, front

2шт.

2

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

8шт.

3

892-11020

LOCK WASHER,M20

8шт.

4

1982054C2

SUPPORT

BRACKET - mounting, left rear

1шт.

5

1982055C2

SUPPORT

BRACKET - mounting, right rear

1шт.

6

144212C1

WASHER

flat, rear mounting spacer

8шт.

9

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

10

828-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

BOLT - hex, 16 - 2.0 x 170 mm, class 10.9

4шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

8шт.

1286905C2

KIT

cab mount

1шт.

12

NSS

NOT SOLD SEPARAT

MOUNT - isolation, top, order 1286905C2 kit, 4 needed to do a complete cab

1шт.

13

1286903C1

INSULATOR BLOCK

MOUNT - isolation, bottom, 4 needed to do a complete cab

1шт.

14

1982005C1

SPACER

rebound

4шт.

15

495-81039

WASHER,25/32" x 1 1/4" x .120"

flat, 25/32 x 1-1/4 x 7/64 inch, replaces 1286904C1 spacer, (Not used this application)

2шт.

16

1982004C1

BOLT

BOLT - special

4шт.

17

117737C1

PLATE

mounting

4шт.

20

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

flat, 13/16 x 1-3/4 x 7/32 inch

4шт.

21

425-1012

NUT,3/4"-10, G5

4шт.

22

495-21081

WASHER,3/4"

flat, 13/16 x 2 x 9/64 inch

2шт.
