Запчасти Case IH 7250 (9-074) - DELUXE AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS AND SEAT BELT, PRIOR TO TRACTOR PIN JJA0061559 (09) - CHASSIS/ATTACHMENTS

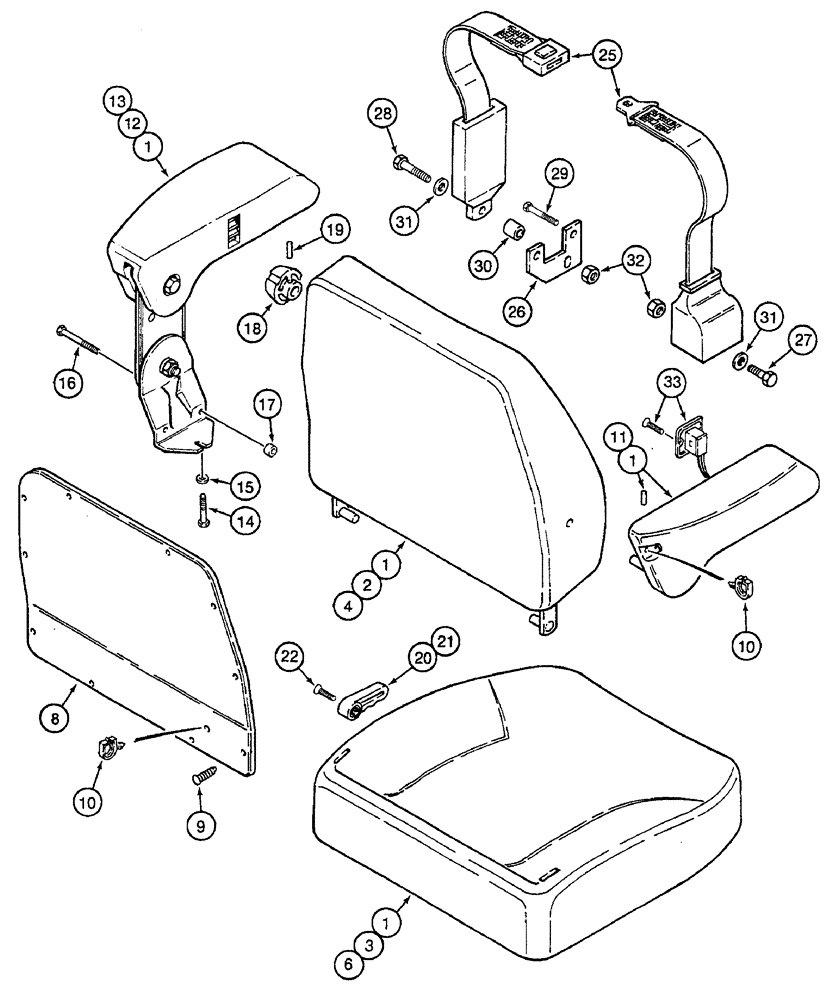

Схема запчастей Case IH 7250 - (9-074) - DELUXE AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS AND SEAT BELT, PRIOR TO TRACTOR PIN JJA0061559 (09) - CHASSIS/ATTACHMENTS
20
18
9
25
8
4
17
14
27
19
10
1
26
1
2
30
31
1
21
16
10
1
6
3
13
11
29
22
28
32
31
33
12
15

Артикул

Название

Примечание

Количество

1999936C1

SEAT ASSY.

deluxe air suspension, parts list Figures 9-76 - 9-84, no longer available, order 1999936C3 seat assembly on Figure 9-86

1шт.

1

134128A2

SEAT

KIT - seat cushion and backrest, complete, replaces 134128A1 kit

1шт.

2

132886A1

BACKREST

KIT - backrest, cloth, with structure

1шт.

132888A1

CUSHION

KIT - seat cushion, with structure, no longer available, order 132888A2 kit below and 144847A1 riser

1шт.

132888A2

PACKAGE

KIT - seat cushion, with structure

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - set, with frame

1шт.

3a

187006A1

CUP

SPACER - cupped, 3/8 inch, not shown

2шт.

3b

700711545

CUP WASHER

SPACER - cupped, 5/8 inch, not shown

2шт.

3c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Not shown

4шт.

132884A1

BACKREST

KIT - backrest pad only, cloth

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

132885A1

CUSHION

seat pad only, cloth

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

1974713C2

PACKAGE

KIT - backrest cover and retainers

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest plate

1шт.

9

103-1131

SNAP RING,#31, Ext

10шт.

10

NSS

NOT SOLD SEPARAT

CLIP - cable retaining, if used

2шт.

10a

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

push-on type, 1/4 x 17/32 inch, if used, not shown

2шт.

11

132880A1

ARMREST

right-hand, black, includes (1) drive pin, no longer available, order 143199A1 armrest on Figure 9-86

1шт.

12

143214A1

ARMREST

LH, Complete

1шт.

13

132882A1

ARMREST

LH, Molded Pad Only, Black

1шт.

13

132883A1

SET OF PARTS

KIT - left-hand armrest adjustment

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

16

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

17

1343875C1

SPACER

25/64 ID x 1/2 inch

2шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, upper

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

19

38-31016

PIN,5/32" x 1", Coiled

2шт.

20

NSS

NOT SOLD SEPARAT

KNOB - back tilt cover

1шт.

21

NSS

NOT SOLD SEPARAT

HANDLE - recliner

1шт.

22

942-1612

SCREW,Oval CSK, M6 x 12mm, Cl 4.8

1шт.

23

NSS

NOT SOLD SEPARAT

KNOB - seat tilt, not used, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, not used, not shown

1шт.

1344158C1

SET

BELT - seat

1шт.

25

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - seat belt, left-hand

1шт.

27

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

28

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

29

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

30

NSS

NOT SOLD SEPARAT

SPACER - 3/8 x 3/8 inch

1шт.

31

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

32

232-4117

LOCK NUT,7/16"-14, GC

2шт.

33

132868A1

SET OF PARTS

KIT - height adjustment, includes (3) cover plate, (1) rocker switch, and (4) screws, included in 132861A1 suspension kit

1шт.

Выбрано товаров: 46
