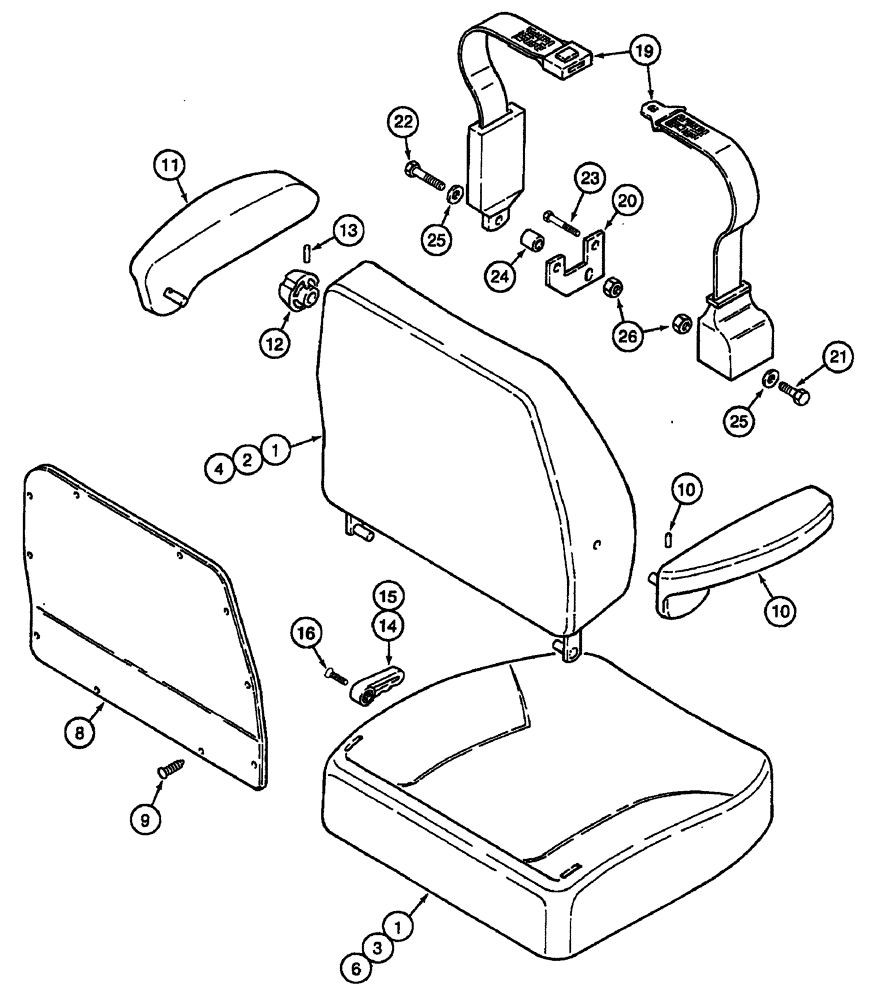

Запчасти Case IH 7250 (9-054) - STANDARD AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS AND SEAT BELT, PRIOR TO TRACTOR PIN JJA0061559 (09) - CHASSIS/ATTACHMENTS

1999934C1

SEAT ASSY.

standard air suspension, parts list Figures 9-56 - 9-62

1шт.

1

134181A2

PACKAGE

KIT - seat cushion and backrest, complete

1шт.

2

132886A1

BACKREST

KIT - cloth, with structure

1шт.

132888A2

PACKAGE

KIT - seat cushion, with structure

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - seat, with frame, order 132888A2 kit

1шт.

3a

187006A1

CUP

SPACER - cupped, 3/8 inch, not shown

2шт.

3b

700711545

CUP WASHER

SPACER - cupped, 5/8 inch, not shown

2шт.

3c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Not shown

4шт.

132884A1

BACKREST

KIT - backrest pad only, cloth

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

23шт.

132885A1

CUSHION

seat pad only, cloth

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

34шт.

1974713C2

PACKAGE

KIT - backrest cover and retainers

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest plate

1шт.

9

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

10шт.

10

1974703C2

ARMREST ASSY.

KIT - seat, right-hand, black, includes (1) drive pin, no longer available, order 143199A1 armrest on Figure 9-64

1шт.

11

1981818C1

ARMREST

KIT - left-hand, black

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, upper

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

13

38-31016

PIN,5/32" x 1", Coiled

2шт.

14

NSS

NOT SOLD SEPARAT

KNOB - back tilt cover

1шт.

15

NSS

NOT SOLD SEPARAT

HANDLE - recliner

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

17

NSS

NOT SOLD SEPARAT

KNOB - seat tilt, not used, not shown

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, not shown, see item 11 on Figure 9-56 for knob, order 1999691C1 knob kit above

1шт.

1344158C1

SET

BELT - seat

1шт.

19

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

20

NSS

NOT SOLD SEPARAT

BRACKET - seat belt, left-hand

1шт.

21

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

22

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

23

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

24

NSS

NOT SOLD SEPARAT

SPACER - 3/8 x 3/8 inch

1шт.

25

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

26

232-4117

LOCK NUT,7/16"-14, GC

2шт.
