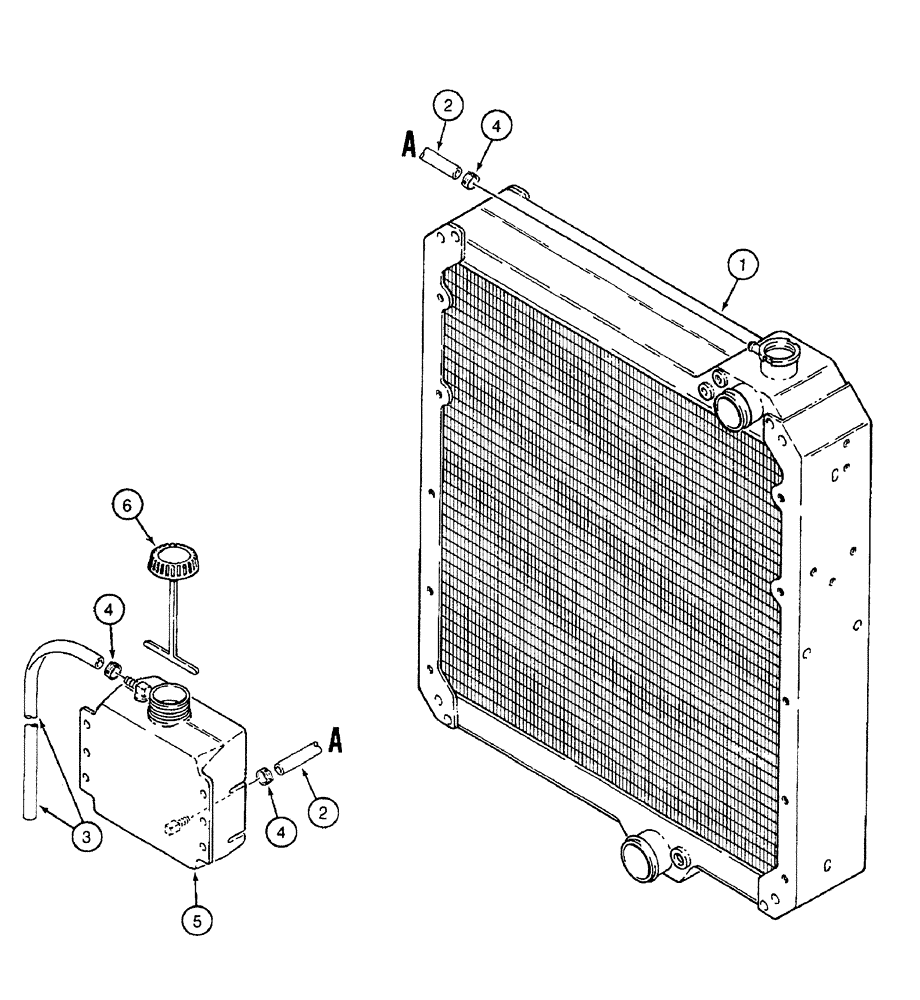

Запчасти Case IH 7250 (2-012) - COOLANT RECOVERY SYSTEM, TRACTOR P.I.N. JJA0064978 AND AFTER (02) - ENGINE

1

140501A2

RADIATOR

ASSEMBLY - cooling system (7230)(Shown)

1шт.

1

131751A2

RADIATOR

ASSEMBLY - cooling system (7240 and 7250)

1шт.

2

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

Cut from L126767 bulk hose, Coolant bottle to radiator

1шт.

3

142713A1

HOSE

1021 mm (40-7/32 inch) long, coolant recovery overflow

1шт.

4

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose retaining

3шт.

199027A1

RESERVOIR ASSY.

coolant recovery, mounts at clip on firewall

1шт.

5

188891A1

RESERVOIR

coolant container

1шт.

6

1547924C1

CAP

recovery bottle, non-vented

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
