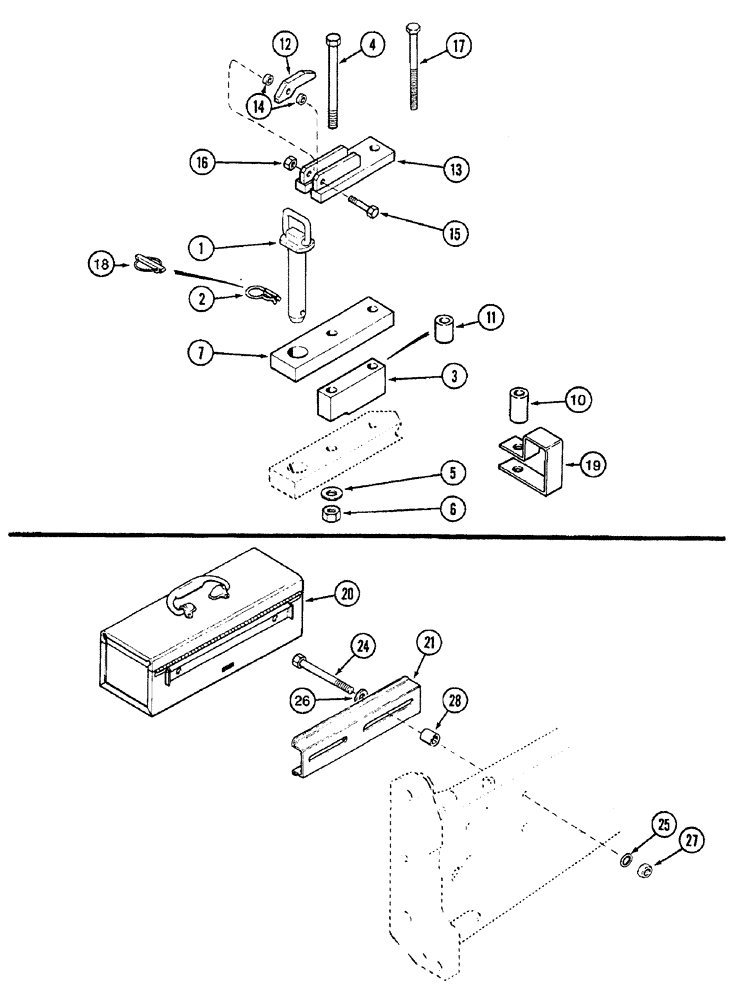

Запчасти Case IH 7250 (9-016) - DRAWBAR HAMMERSTRAP (09) - CHASSIS/ATTACHMENTS

1

1286985C4

HITCH PIN,40mm OD x 200mm L

hammerstrap

1шт.

2

1289372C1

SPLIT PIN/SAFETY PIN

hair, special, if used

1шт.

3

1286983C1

RAIL ASSY.

SPACER - drawbar strap

1шт.

4

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

BOLT - hex, 20 - 2.5 x 220 mm, class 10.9

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

2шт.

6

829-1420

NUT,M20, Cl 10

2шт.

7

1286984C1

DRAWBAR

HAMMERSTRAP

1шт.

10

1286924C1

SPACER

strap, if used

1шт.

11

1331939C1

SPACER

strap, if used

1шт.

12

1965315C2

LEVER

hammerstrap

1шт.

13

1965312C3

LATCH ASSY.

hammerstrap

1шт.

14

1965316C2

SPACER,13mm ID x 19.1mm OD x 8mm L

latch, hammerstrap

2шт.

15

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

17

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

18

1348043C1

LINCH PIN

Klik, lock, special, if used

1шт.

19

1331943C1

SUPPORT ASSY.

chain

1шт.

1983805C1

BOX

TOOL BOX ATTACHMENT - tractor, order from Machinery Price List

1шт.

20

A181436

TOOL BOX

1шт.

NSS

NOT SOLD SEPARAT

HANDLE - tool box, not shown

1шт.

NSS

NOT SOLD SEPARAT

PIN - 'L' shaped, mounting (Fabricate from 1/4 inch round stock), not shown, tool box

1шт.

NSS

NOT SOLD SEPARAT

TRAY - tote, not shown, tool box

1шт.

21

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

24

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

Toolbox

2шт.

25

893-16016

LOCK WASHER,Int Tooth, M16

Replaces 892-11016 lock washer, Tool box

2шт.

26

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat, Tool box

2шт.

27

825-1416

NUT,M16, Cl 8

Toolbox

2шт.

28

1348536C1

SPACER

mounting, tool box

2шт.
