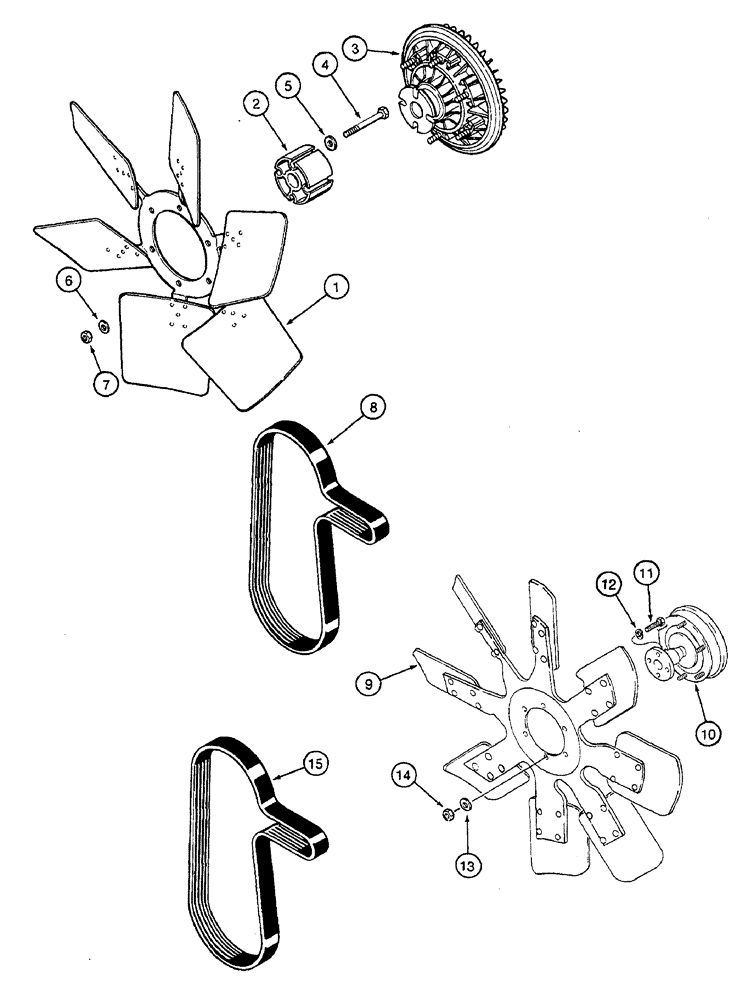

Запчасти Case IH 7250 (2-008) - RADIATOR FAN AND MOUNTING PARTS (02) - ENGINE

1

A173447

FAN

engine, prior to P.I.N JJA0064978

1шт.

2

A184523

SPACER

fan, prior to P.I.N JJA0064978

1шт.

3

A173943

DRIVE ASSY.

fan (7230 and 7240)(shown), prior to P.I.N JJA0064978

1шт.

3

102422A1

DRIVE ASSY.

fan (7250), prior to P.I.N JJA0064978

1шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

Prior to P.I.N JJA0064978

4шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Prior to P.I.N JJA0064978

4шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Prior to P.I.N JJA0064978

6шт.

7

825-1408

NUT,M8, Cl 8

Prior to P.I.N JJA0064978

6шт.

8

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan, Prior to P.I.N JJA0064978

1шт.

9

186431A1

FAN,8 Blades, 601.5mm OD

engine, 8 blade, emission control engines (7230)(Shown), P.I.N. JJA0064978 and after

1шт.

9

140939A1

FAN,8 Blades, 637.5mm OD

engine, emission control engines (7240 and 7250), P.I.N. JJA0064978 and after

1шт.

10

187777A1

DRIVE ASSY.

fan (7230)(Shown), P.I.N. JJA0064978 and after

1шт.

10

187441A1

DRIVE,Cooling Fan Viscous

fan (7240 and 7250), P.I.N. JJA0064978 and after

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

P.I.N. JJA0064978 and after

4шт.

12

892-11010

LOCK WASHER,M10

P.I.N. JJA0064978 and after

4шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

P.I.N. JJA0064978 and after

6шт.

14

825-1408

NUT,M8, Cl 8

P.I.N. JJA0064978 and after

6шт.

15

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan, P.I.N. JJA0064978 and After

1шт.
