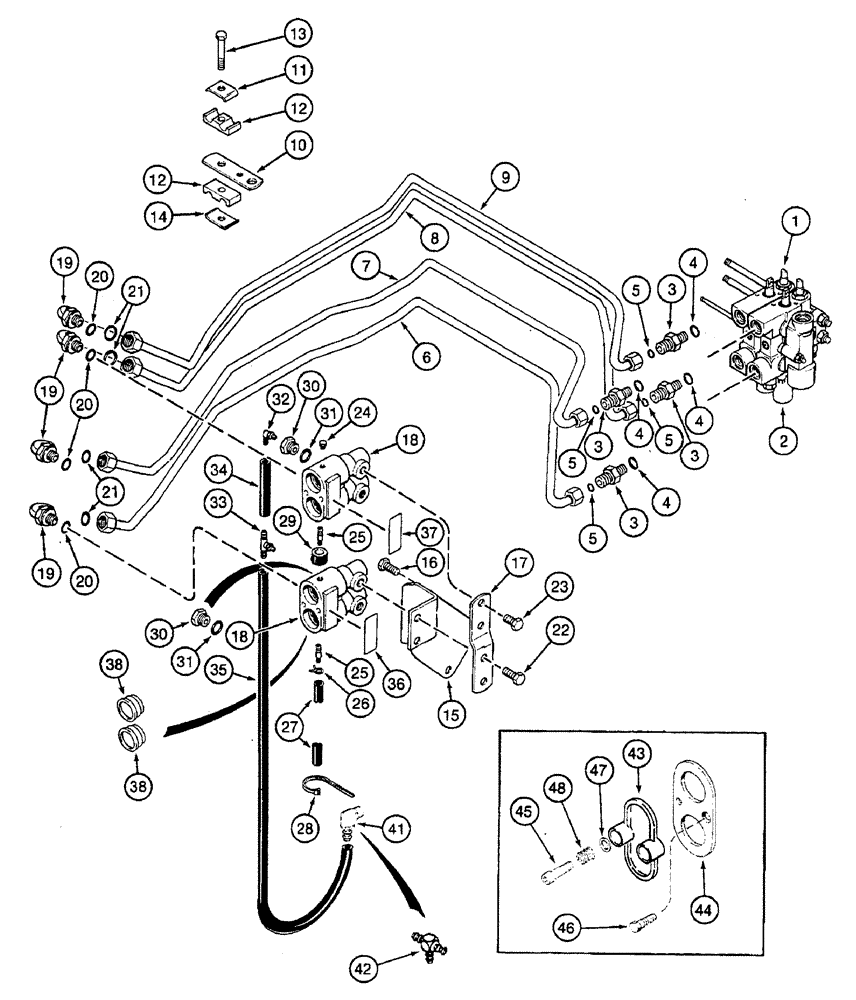

Запчасти Case IH 7250 (8-046) - FIRST AND SECOND CIRCUIT REMOTE HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, first circuit (20 gallon), for correct assembly and components, see Figure 8-52 - 8-62

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic, second circuit (30 gallon), for correct assembly and components, see Figure 8-64 - 8-74

1шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

6

102214A1

HYD TUBE,0.625" OD, 931, 505 mm Length

TUBE - raise, first valve

1шт.

7

102216A1

TUBE,0.625" OD, 932 mm Length

TUBE - drop, first valve

1шт.

8

102217A1

HYD TUBE,0.625" OD, 934 mm Length

TUBE - raise, second valve

1шт.

9

102218A1

TUBE,0.625" OD, 925, 549 mm Length

TUBE - drop, second valve

1шт.

10

1334203C1

SUPPORT ASSY.

tube

1шт.

11

486004R1

CLAMP

tube, upper

1шт.

12

224968C2

STRIP

CLAMP - isomount strip, tube

2шт.

13

828-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 65 mm, class 10.9, replaces 815-8070 bolt

1шт.

14

1348451C1

SUPPORT

CLAMP - tube, lower, includes nut

1шт.

15

102518A1

SUPPORT

BRACKET - coupler, left-hand

1шт.

16

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

Bolt, Hex, M16 x 30, 10.9, Full Thd

2шт.

17

120012C1

SUPPORT

coupler

1шт.

18

103866A2

COUPLING

ASSEMBLY - quick disconnect, parts list Figure 8-76

2шт.

19

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch adj O-ring boss

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

23

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

24

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

25

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

2шт.

26

1348264C1

HOSE CLAMP

3/8 inch

1шт.

27

106514A1

HYDRAULIC HOSE

808 mm (30-13/16 inch) long, Coupler drain

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

29

1272764C1

SEAL

drain, coupler

1шт.

30

1334586C1

PLUG

ADAPTER - coupler drain, special

2шт.

31

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

32

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 degree, second coupler

1шт.

33

1289480C1

TEE

barbed, first coupler

1шт.

34

1289484C1

HOSE

115 mm (4-9/16 inch) long, cut from 427683C1 bulk hose, Serial Range: coupler-tee

1шт.

35

1334641C1

HOSE,6.35 mm ID x 330.00 mm

330 mm (13 inch) long, cut from 427683C1 bulk hose, coupler tee to tee or elbow at transmission

1шт.

36

1334581C2

DECAL

1 ISO, first coupler, shown on Figure 9-146

1шт.

37

1334582C2

DECAL

2 ISO, second coupler, shown on Figure 9-146

1шт.

38

103871A1

CAP

PLUG - dust, coupler

4шт.

41

401967R1

ELBOW

90 degree, 1/8 PT x 1/4 inch barb end, used on models without hitch

1шт.

42

1289479C1

TEE

barbed, used on models with hitch

1шт.

43

104301A1

DOOR COVER

coupler

2шт.

44

104302A1

MOUNTING PLATE

retaining

2шт.

45

104303A1

BOLT

BOLT - shoulder

2шт.

46

461-4258

HEX SOC SCREW,Flat Hd, 1/4"-20 x 1/2"

2шт.

47

110947A1

WASHER

flat, special

2шт.

48

110945A1

SPRING

coupler door

2шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6 (1/4) x 13 (1/2) x 15240 mm (600 inch) long, sold by the foot

1шт.
