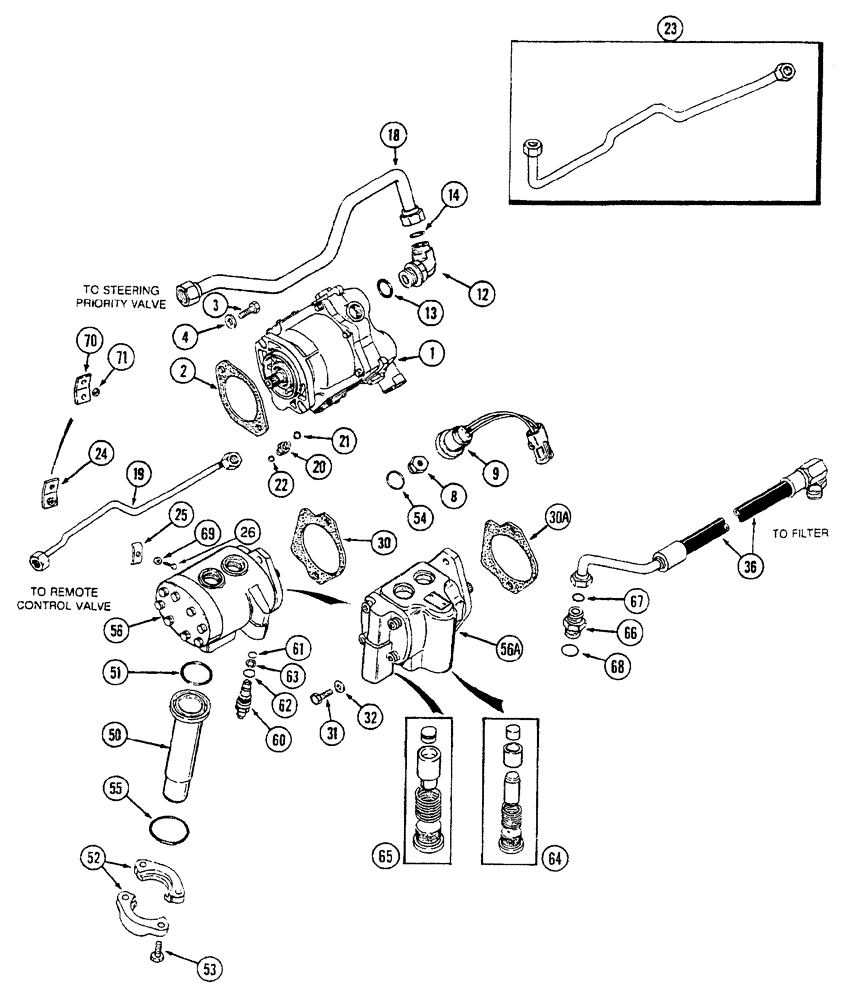

Запчасти Case IH 7250 (8-018) - HYDRAULIC PUMP SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston hydraulic, see Figures 8-20 - 8-24

1шт.

2

144169C2

GASKET,0.79mm Thk

pump

1шт.

3

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

2шт.

8

1334586C1

PLUG

ADAPTER - coupler drain

1шт.

9

1546463C1

SWITCH, PRESSURE

PRESSURE SWITCH flow compensated (PFC)

1шт.

12

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

90 deg, 1-7/16-12 face x 1-5/16-12 inch adj O-ring

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss end

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End

1шт.

18

1342131C1

TUBE

supply, priority valve

1шт.

19

1342146C2

HYD TUBE

TUBE - signal, pump (with hitch)

1шт.

20

1957867C1

FILTER SCREEN

ASSEMBLY - pump, compensator

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

23

1342147C2

HYD TUBE

TUBE - signal, pump (without hitch)

1шт.

24

1334401C1

SUPPORT

BRACKET - clamp, no longer available, order 231089A1 bracket and 3072723R1 spacer, items 70 and 71

1шт.

25

535307R1

CLAMP

tube

1шт.

26

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

30

1349060C1

GASKET,0.79mm Thk

pump, dual gear, used with 115214A1 pump

1шт.

30a

144169C2

GASKET,0.79mm Thk

pump, dual gear, used with 227748A3 pump

1шт.

31

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

32

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

2шт.

36

1348346C1

HOSE ASSY.,25.4mm ID x 595mm L, SAE 100R1

595 mm (23-7/16 inch) long, Serial Range: pump-filter

1шт.

50

1340541C1

TUBE,194 mm Length

inlet, dual pump

1шт.

51

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

52

300525R1

CLAMP

split, flange halves

2шт.

53

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

55

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

56

115214A1

PUMP, HYDRAULIC

ASSEMBLY - dual gear, prior to transmission serial number AJB0082218

1шт.

432244A3R

REMAN-HYD PUMP

7230, 7240, 7250 all prior to transmission serial number AJB0082218 (10/93-12/96); Reman for New P/N 115214A1

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

56a

227748A3

PUMP, HYDRAULIC

ASSEMBLY - dual gear, effective transmission serial number AJB008221 9 and above

1шт.

432244A3R

REMAN-HYD PUMP

7210, 7220, 7230, 7240, 7250 all transmission serial number AJB008221 9 and above (10/93-12/96); Reman for New P/N 227748A3

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

60

1986872C1

VALVE, PRESSURE RELI

EF ASSEMBLY - for 115214A1 pump, if used

1шт.

61

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

62

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

63

N7319

RING

WASHER - backup

1шт.

64

245847A1

PACKAGE

VALVE ASSEMBLY - relief, front, for 227748A3 pump, if used, components not serviced separately

1шт.

65

231061A1

VALVE, PRESSURE RELI

EF ASSEMBLY - rear, for 227748A3 pump, if used, components not serviced separately

1шт.

1986849C1

SEAL KIT

seal repair, for 115214A1 pump, if used

1шт.

231059A2

SEAL KIT

seal repair, for 227748A3 pump, if used

1шт.

66

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

67

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

68

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

69

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12 x 1.6 mm

1шт.

70

231089A1

SUPPORT

BRACKET - clamp

1шт.

71

3072723R1

SPACER

bracket

1шт.
