Запчасти Case IH 7250 (7-010) - TRAILER BRAKE (IF EQUIPPED) (07) - BRAKES

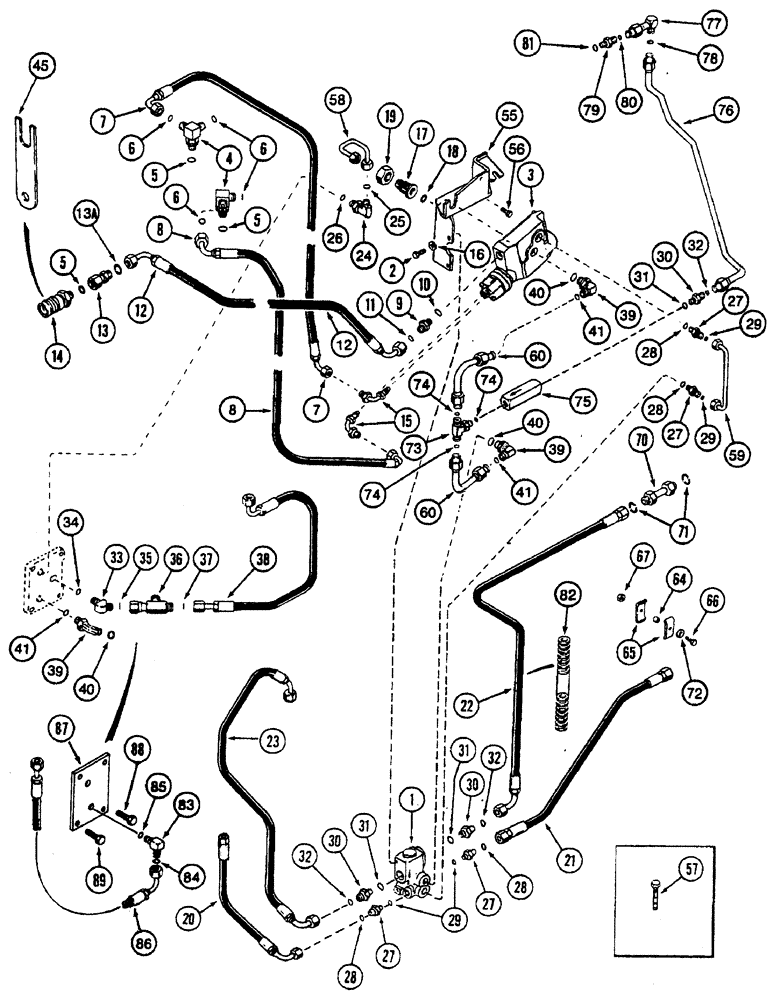

Схема запчастей Case IH 7250 - (7-010) - TRAILER BRAKE (IF EQUIPPED) (07) - BRAKES
60
35
28
32
29
6
75
21
65
81
41
73
18
66
27
36
74
59
39
72
31
77
3
26
25
76
27
56
5
24
4
30
83
39
2
71
28
57
9
10
67
23
82
70
87
88
6
86
89
64
31
32
8
33
13
38
85
58
40
27
7
28
40
74
12
27
32
41
5
60
14
41
78
79
40
45
12
55
15
28
20
84
8
39
13a
1
30
34
7
16
17
37
29
22
80
31
29
30
19
74
6
5
11

Артикул

Название

Примечание

Количество

1

1533774C2

HYDRAULIC VALVE

ASSEMBLY - priority, trailer brake, replaces 1346384C1 valve

1шт.

1986932C1

PACKAGE

KIT - seal repair, trailer brake priority valve

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

3

1343654C2

HYDRAULIC VALVE

trailer brake

1шт.

1986883C1

SEAL KIT

seal repair, trailer brake valve

1шт.

4

1975204C1

FITTING,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

special tee

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

1955121C1

HOSE ASSY.

1346 mm (53 inch) long, trailer brake, left

1шт.

8

1955122C2

HOSE

737 mm (29-1/64 inch) long, trailer brake, right

1шт.

9

1975213C2

ADAPTER

trailer brake coupler

1шт.

10

1328179C1

O-RING,15.4mm ID x 2.1mm Width

15.4 ID x 21 mm

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

103774A2

HOSE

1156 mm (45-1/2 inch) long, coupler

1шт.

13

1975266C1

HYD TUBE,12 mm OD

TUBE - coupler adapter

1шт.

13a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

3131463R91

QUICK MALE COUPLING

trailer

1шт.

15

1975290C1

HYD TUBE,0.312" OD

TUBE - brake supply

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

1975206C1

FITTING

adapter return

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

825-1424

NUT,M24, Cl 8

hex, 24 mm - 3

1шт.

20

1955123C1

HOSE ASSY.

419 mm (16-1/2 inch) long, priority pilot inlet

1шт.

21

1955126C2

HOSE

641 mm (25-1/4 inch) long, steering pilot

1шт.

22

1955134C2

HOSE ASSY.

1588 mm (62-1/2 inch) long, steering supply

1шт.

23

1955135C1

HOSE ASSY.

953 mm (37-1/2 inch) long, priority valve supply

1шт.

24

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

O-ring boss

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight

4шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

3шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

45 degree, 13/16-16 face seal x 9/16-18 inch adj O-ring boss, if used

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

13/16-16 inch face branch x face x swivel face, if used

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

38

1978404C1

HOSE ASSY.,9.5mm ID x 787mm L, SAE 100R1

crossover, 787 mm (31 inch) long, marker return, if used 31" overall length - 100R17 - 3/8" hose - both female ends - (1) 90 degree end w/o-ring face seal, 13/16"-16 thread - (1) straight o-ring face seal end with 11/16"-16 thread

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adj O-Ring boss

2-3шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

103118A1

SUPPORT ASSY.

trailer brake

1шт.

55

1955283C2

SUPPORT ASSY.

BRACKET - cable and valve mounting

1шт.

56

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full Thd

3шт.

57

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

58

1955333C1

HYD TUBE,10 mm OD

trailer brake valve return

1шт.

59

102562A1

TUBE,0.375" OD, 190, 35 mm Length

TUBE - trailer brake pilot

1шт.

60

102563A1

TUBE,0.5" OD, 70.17 mm Length

TUBE - trailer brake priority

2шт.

64

3072723R1

SPACER

clamp

1шт.

65

535307R1

CLAMP

tube

2шт.

66

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

67

832-41306

NUT,M6 x 1, Cl 10

1шт.

70

1348300C1

TUBE,0.5" OD, 104.2 mm Length

steering supply

1шт.

71

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

72

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6 6 x 12 x 1.6 mm

1шт.

73

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

3/4-16 adj O-ring branch x 13/16-16 inch face x face

1шт.

74

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

75

1348540C1

CHECK VALVE

check

1шт.

76

106510A1

HYD TUBE,0.5" OD, 353.7,92.8 mm Length

TUBE - trailer brake pressure, used with item 77 elbow, replaces one-piece 102564A1 tube with elbow used in production

1шт.

77

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

ELBOW - 90 degree, 13/16-16 inch face seal x swivel face seal, attaches to item 76 pressure tube

1шт.

78

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

79

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, replaces park lock cover plug on some models

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

82

1976749C1

TUBE,27 mm ID, 34 mm OD

SLEEVE - corrugated, 520 mm (20-15/32 inch) long, cut from 1978484C2 bulk sleeve, steering supply hose

1шт.

83

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

O-ring boss, if used

1шт.

85

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

86

1976746C1

HOSE,9.53mm ID x 533.4mm L, SAE 100R3

533 mm (21 inch) long, crossover, marker return, if used

1шт.

87

195383A1

LARGE PLATE

PLATE, LARGE COVER - brake housing

1шт.

88

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

89

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

1978484C2

PIPE

SLEEVE - corrugated, bulk, 27 (1-1/16) x 34 (1-11/32) x 1065 mm (41-15/1 6 inch) long

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

81

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

84

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 76
