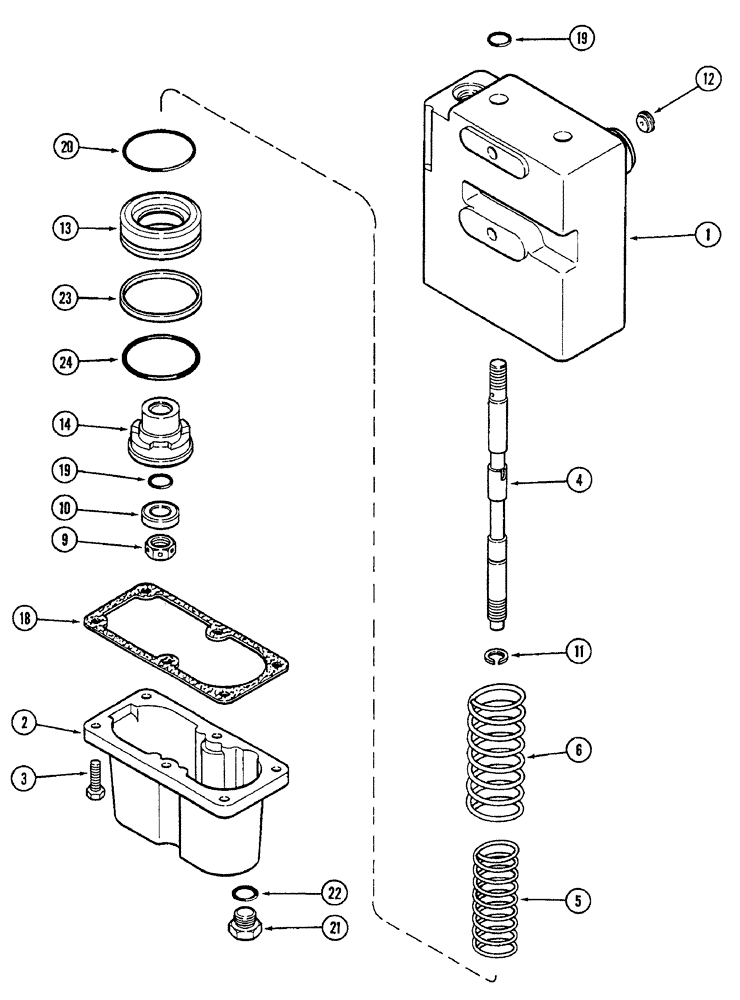

Запчасти Case IH 7250 (7-008) - BRAKE VALVE ASSEMBLY (07) - BRAKES

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

384495R1

CAP

body

1шт.

3

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch

6шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

5

1263125C1

SPRING

2шт.

6

1263124C1

SPRING

piston, large

2шт.

9

9411648

LOCK NUT,1/2"-20, GC

2шт.

10

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

2шт.

11

A27020

RING

retaining

2шт.

12

140720C1

PLATE

orifice

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - large

2шт.

14

NSS

NOT SOLD SEPARAT

PISTON - small

2шт.

71487C92

GASKET KIT

KIT - valve

1шт.

18

384503R2

GASKET,0.38mm Thk

body

1шт.

19

NSS

NOT SOLD SEPARAT

0-RING- spool

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 3/32 inch

2шт.

21

76349

PLUG,9/16" - 18 ORB

1шт.

23

NSS

NOT SOLD SEPARAT

RING - slipper

2шт.

24

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32 inch wide

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
