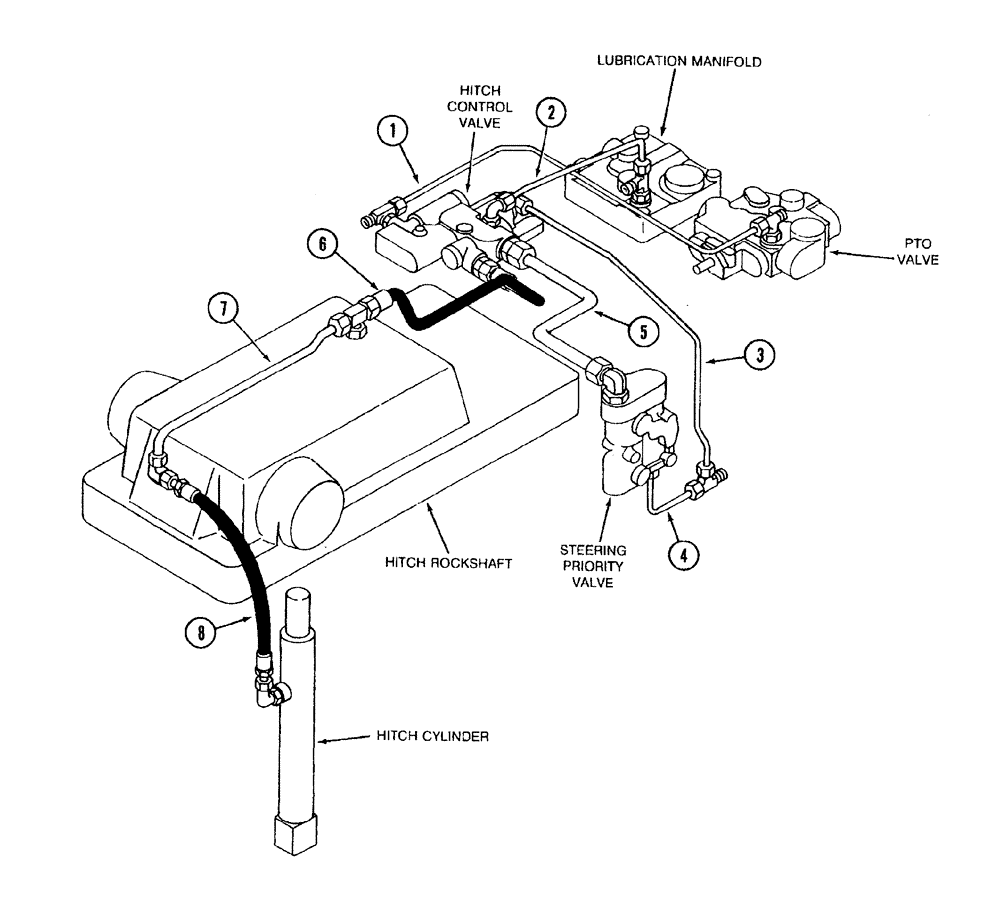

Запчасти Case IH 7250 (1-24) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

1

Pilot Pressure Tube, page 8-27

1шт.

2

Valve Return Tube, page 8-27

1шт.

3

Signal Tube, page 8-27

1шт.

4

Short Signal Pump Tube, page 5-9

1шт.

5

Valve Inlet Tube, page 8-27

1шт.

6

Cylinder Supply Hose, page 8-29

1шт.

7

Hitch Booster Tube, page 8-27

1шт.

8

Cylinder Assist Hose, page 8-27

1шт.
