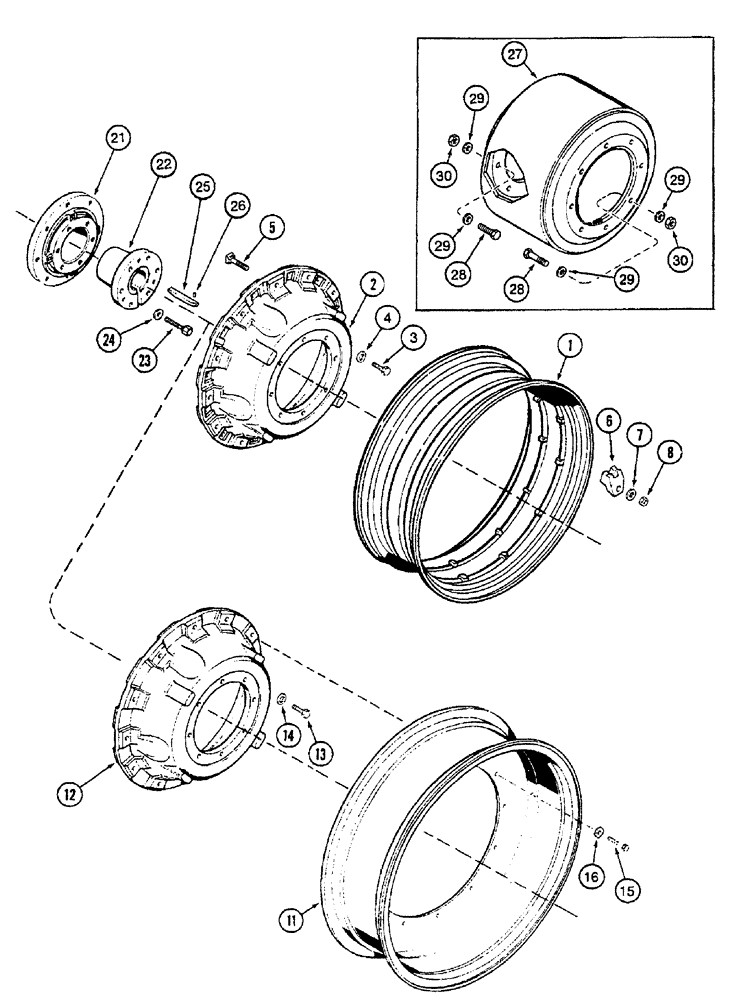

Запчасти Case IH 7250 (6-092) - UNIVERSAL CAST REAR WHEELS, SINGLE OR DUAL, 38, 42 AND 46 INCH RIMS (06) - POWER TRAIN

A67688

WHEEL ASSY.

ATTACHMENT - universal cast, order from Machinery Price List, rear, Includes: REF 2 thru 8

1шт.

1

1334480C1

RIM

WHEEL (For 18.4-38 tire)

2шт.

A67690

RIM

WHEEL ATTACHMENT - universal cast, order from Machinery Price List, rear, Includes: REF 2 thru 8

1шт.

1

1334481C1

RIM

WHEEL (For 20.8-38 tire)

2шт.

A67779

WHEEL ASSY.

ATTACHMENT - universal cast, order from Machinery Price List, rear, Includes: REF 2 thru 8

1шт.

1

1334482C1

RIM

WHEEL (For 18.4-42 tire)

2шт.

A67933

WHEEL ASSY.

ATTACHMENT - universal cast, order from Machinery Price List, rear

1шт.

1

1334483C1

RIM

WHEEL (For 20.8-42 tire)

2шт.

2

A145464

WHEEL

HUB - outer, rear, universal cast

2шт.

3

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

16шт.

4

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

5

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

BOLT - square head, 3/4 NC x 3-1/2 inch

24шт.

6

A57654

CLAMP

adjusting, double ramp

24шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

flat, wheel

24шт.

8

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

9

A20058

VALVE STEM

Not shown

2шт.

1340516C2

WHEEL ASSY.

ATTACHMENT - universal cast, order from Machinery Price List, rear

1шт.

11

1978549C4

RIM

WHEEL (12 x 46)

2шт.

11

1348323C1

RIM

WHEEL (16 x 46)

2шт.

12

1348284C2

DISC, WHEEL

HUB - wheel, outer, rear, universal cast

2шт.

13

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

16шт.

14

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

15

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

24шт.

16

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

24шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, order from Machinery Price List

1шт.

21

A145322

HUB

wheel, tapered

2шт.

22

1289233C1

HUB

BUSHING - wheel, 4 inch ID

2шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, replaces A60095 bolt

12шт.

24

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

25

A63219

KEY

axle, 3/4 x 6 inch

2шт.

26

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

A67430

PACKAGE

SPACER KIT - dual wheel, 16 inch, 8 bolt, order from Machinery Price List, if used

1шт.

27

A149059

BUSHING

SPACER - dual wheel, 8 bolt 16 inch

2шт.

28

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

29

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

32шт.

30

429-1012

NUT,3/4"-10, G8

hex, NC

16шт.
