Запчасти Case IH 7250 (6-086) - PTO REDUCTION GEARS (06) - POWER TRAIN

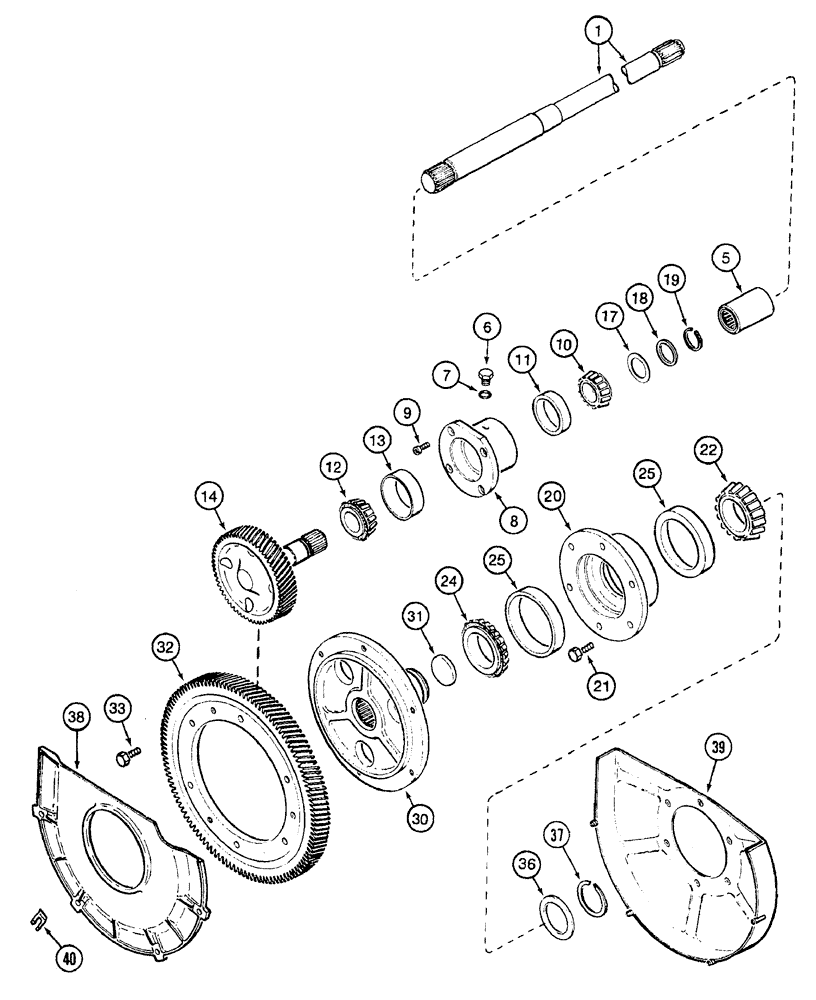

Схема запчастей Case IH 7250 - (6-086) - PTO REDUCTION GEARS (06) - POWER TRAIN
21
32
7
20
19
10
6
14
12
5
1
36
33
22
30
24
25
38
37
40
31
25
39
8
18
17
13
9
11

Артикул

Название

Примечание

Количество

1

1981239C1

SHAFT

drive, rear

1шт.

5

109651C1

COUPLING,21T

shaft

1шт.

6

76349

PLUG,9/16" - 18 ORB

1шт.

8

1349450C1

BEARING HOUSING

bearing

1шт.

9

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

4шт.

10

93292C1

BEARING ASSY,1.375" ID x 2.717" OD x 0.7813"

tapered roller, front

1шт.

11

ST991

BEARING CUP

tapered roller, front

1шт.

12

93294C1

TAPERED BEARING,35 mm ID x 28 mm

tapered roller, rear

1шт.

13

93295C1

BEARING, CUP,72 mm OD x 22 mm

tapered roller, rear

1шт.

14

93264C1

GEAR WHEEL

drive, PTO

1шт.

94653C1

PACKAGE,SERVICE

KIT - shim, gear, kit no longer available, order components

1шт.

17

92809C1

SHIM

gear, 0.25 mm

1шт.

17

92808C1

SHIM

gear, 0.30 mm

1шт.

17

92807C1

SHIM

gear, 0.41 mm

1шт.

18

1264649C1

SHIM

gear

1шт.

19

1259828C1

RING

retaining, optional with 101-16131 ring

1шт.

20

139307C3

BEARING HOUSING

bearing

1шт.

21

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

22

496535C1

BEARING ASSY,61.912 mm ID x 110 mm OD x 22 mm

tapered roller, front

1шт.

24

ST753B

BEARING ASSY,66.67mm ID x 22mm W

tapered roller, rear

1шт.

25

29214H

BEARING CUP,110mm OD x 18.82mm W

tapered roller, 4-5/16 inch OD, rear

2шт.

1264951C1

HUB

ASSEMBLY - gear, PTO driven

1шт.

30

NSS

NOT SOLD SEPARAT

HUB - gear, driven

1шт.

31

41-1632

PLUG,Cup, 2", Stainless

cup, 2 inch diameter, replaces 70129R1 plug

1шт.

32

1277012C1

GEAR WHEEL

driven

1шт.

33

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

6шт.

1968278C1

SHIM

KIT - bearing, kit no longer available, order components

1шт.

36

1264638C1

WASHER

bearing, 3.44 mm

1шт.

36

1259699C1

WASHER

bearing, 3.48 mm

1шт.

36

1259700C1

WASHER

SHIM - bearing, 3.52 mm

1шт.

36

1259701C1

WASHER

SHIM - bearing, 3.56 mm

1шт.

36

1259702C1

WASHER

bearing, 3.6 mm

1шт.

36

1259703C1

WASHER

bearing, 3.64 mm

1шт.

36

1259704C1

WASHER

bearing, 3.68 mm

1шт.

36

1264639C1

WASHER

bearing, 3.72 mm

1шт.

37

1259698C1

CIRCLIP

RING - retaining, external

1шт.

38

1997579C1

HOUSING

COVER - shield, oil

1шт.

39

139329C1

SHIELD

gear

1шт.

40

139327C1

CLIP

retaining, cover

4шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 40
