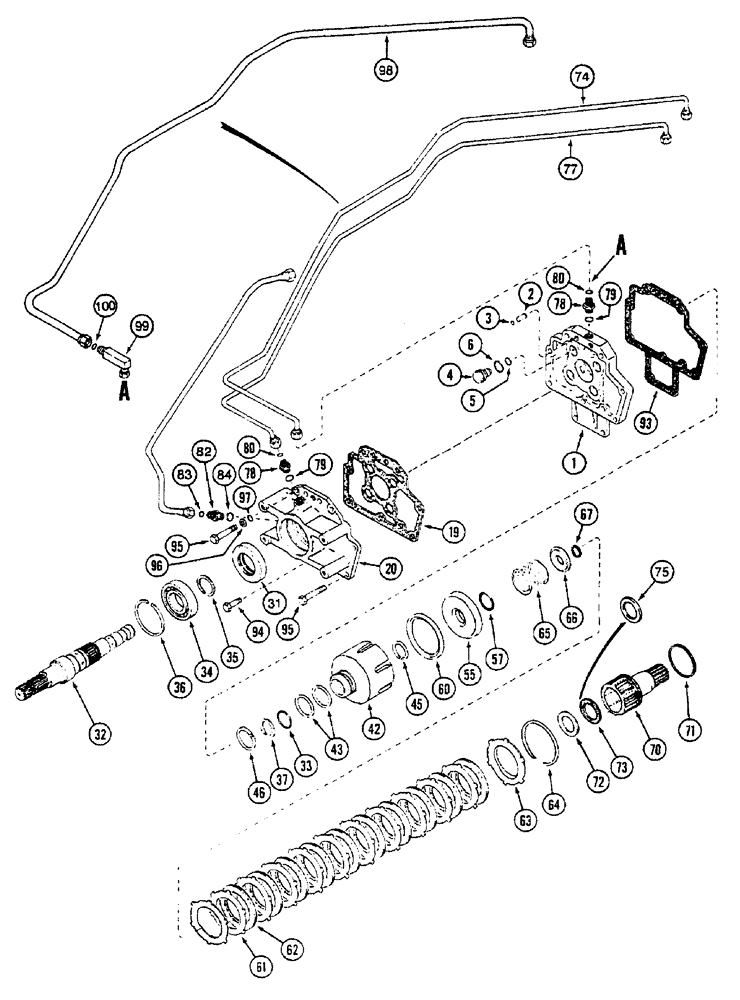

Запчасти Case IH 7250 (6-078) - PTO ASSEMBLY, 1000 RPM (IF EQUIPPED) (06) - POWER TRAIN

1997459C1

PTO

POWER TAKE OFF ASSEMBLY - 1000 rpm

1шт.

1

1997571C1

HOUSING

ASSEMBLY - PTO

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

4шт.

3

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

4

1289335C4

PISTON

brake, anti-creep, replaces 1289335C3 piston

4шт.

5

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

4шт.

6

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

4шт.

19

1997474C2

GASKET

, Serial Range: cover-housing

1шт.

20

1997465C1

COVER

housing

1шт.

31

1349466C1

OIL SEAL,69.77mm ID x 110.21mm OD x 13.08mm Thk

oil, replaces A140930 seal

1шт.

32

1997463C1

SHAFT

output

1шт.

33

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

34

1963946C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

ball

1шт.

35

357194R1

RING

retaining, external

1шт.

36

324049R1

RING

retaining, internal

1шт.

37

271130R1

RING

retaining, external

1шт.

42

1997478C1

CUP

clutch

1шт.

43

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

seal, cup

2шт.

45

130489C1

RING

retaining, external

1шт.

46

1997576C1

SEALING RING

SEALRING seal

1шт.

55

1997477C1

PISTON

clutch

1шт.

57

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

60

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston, clutch

1шт.

1277392C1

SET OF PARTS

KIT - disc and plate, clutch, kit no longer available, order components

1шт.

61

381489R3

DISC

PLATE - seperator, clutch

10шт.

62

381490R4

DISC

friction, clutch

10шт.

63

1997561C2

LARGE PLATE

PLATE, LARGE DISC - clutch backing

1шт.

64

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, clutch driven disc

1шт.

65

381493R1

SPRING

clutch release

1шт.

66

1997479C1

STOP

RETAINER - spring

1шт.

67

101-11175

SNAP RING,#175, 1.640", Ext

RING - external retaining, No. 175, clutch release spring return

1шт.

70

1997698C1

SHAFT ASSY.

clutch drive

1шт.

70a

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

needle, 1-3/4 inch OD, outer, not shown

1шт.

70b

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

needle, inner, not shown

1шт.

71

1997689C1

SEAL,89.53mm ID x 95.53mm OD x 2.88mm Thk

lubrication

1шт.

72

A54021

WASHER

RACE - thrust, 2-1/2 inch, 2 used with item 73, 1 used with item 75

2шт.

73

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

thrust, no longer used, for service order item 75, 1997941C1 thrust washer

1шт.

74

1997587C1

HYD TUBE

TUBE - clutch supply, 3/8 inch, prior to tractor P I N JJA0064978

1шт.

75

1997941C1

THRUST WASHER,44.83mm ID x 63.5mm OD x 3.54mm Thk

fiber

1шт.

77

1997585C1

HYD TUBE

TUBE - PTO brake supply

1шт.

78

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight

2шт.

80

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

81

107813A1

TUBE

TUBE - lubrication, PTO

1шт.

82

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

straight, 13/16-16 face seal x 9/16-18 inch O-ring boss

1шт.

83

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

93

1997475C1

GASKET,0.79mm Thk

, Serial Range: housing-frame

1шт.

94

613-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

94

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

95

813-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

BOLT - hex, 12 - 1.75 x 75 mm

6шт.

96

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

97

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

98

223730A1

TUBE

TUBE - clutch supply, 5/8 inch, tractor P I N JJA0064978 and after

1шт.

99

225500A1

FITTING

ELBOW - 90 degree, 1-14 male x 11/16-16 inch straight thread, tractor P I N JJA0064978 and after

1шт.

100

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

79

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

84

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
