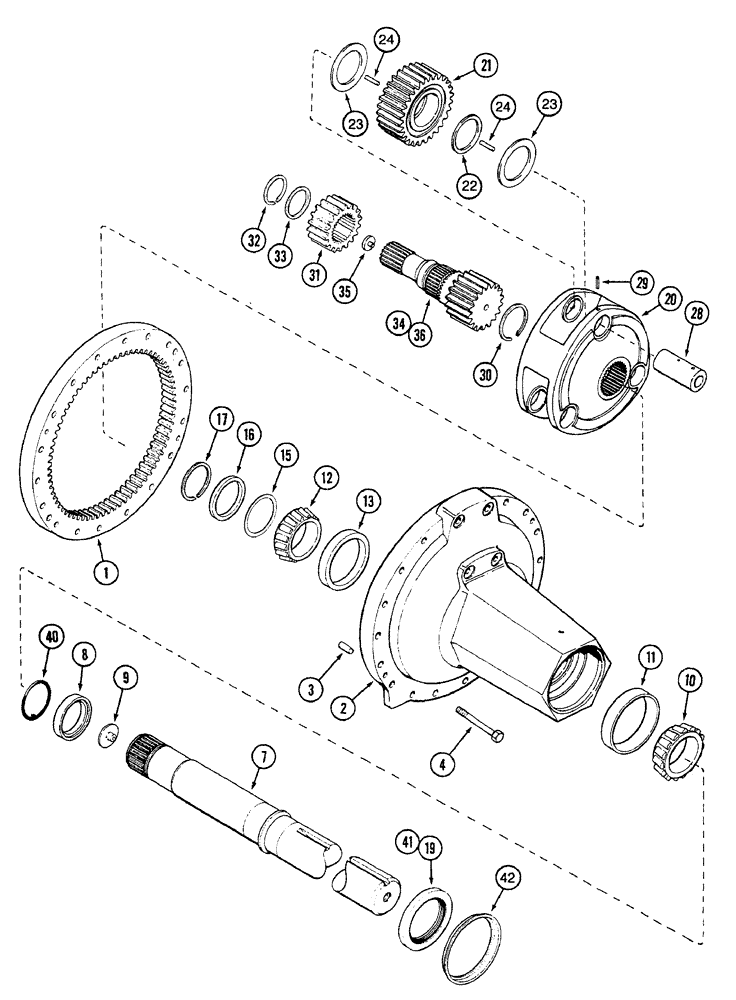

Запчасти Case IH 7250 (6-068) - REAR AXLE AND CARRIERS, 120 INCH AXLE (06) - POWER TRAIN

1

1259670C2

RING GEAR

axle

2шт.

2

1342268C1

CARRIER

ASSEMBLY - includes (1 each) items 11 and 13

2шт.

3

837-16040

DOWEL,M16 x 40

Hardened

2шт.

4

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT - hex, 16 - 2.0 x 140 mm

32шт.

7

1342484C3

REAR AXLE

ASSEMBLY - (4 inch diameter x 120 inch)

2шт.

8

1963837C1

BUSHING,104.83mm ID x 132.65mm OD x 18mm L

spacer, bearing

1шт.

9

1981270C1

INSERT

rear axle

1шт.

10

1975499C1

TAPERED BEARING,104.187 mm ID x 47.68 mm

tapered roller, outer

2шт.

11

1975500C1

BEARING CUP,180.987 mm OD x 38.15 mm

tapered roller

2шт.

12

1963841C1

ROLLER BEARING,95.26mm ID x 36.22mm W

tapered roller, inner

2шт.

13

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

tapered roller

2шт.

1264591C1

SHIM KIT

shim, bearing, kit no longer available, order components

1шт.

15

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

Bearing

1шт.

15

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

Bearing

1шт.

15

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

Bearing, 0.18mm

1шт.

15

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

Bearing (0.10 - 0.13 mm)

1шт.

15

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

Bearing (0.06 to 0.09 mm)

1шт.

16

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

thrust, axle

2шт.

17

1277020C2

RING

retaining

2шт.

19

1963839C1

OIL SEAL

oil, shaft

2шт.

20

1349345C1

CARRIER

gear, planet

2шт.

21

1349350C2

PINION

GEAR - planet, 28 teeth

6шт.

22

1349348C1

THRUST RING

6шт.

23

1997886C1

THRUST WASHER

12шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

348шт.

28

1349346C1

SHAFT

bearing, planet gear

6шт.

29

838-3826

PIN,M8 x 26, Coiled

Replaces 30355R1 pin

6шт.

30

101-11350

SNAP RING,#350, Ext

Replaces 598318R1

2шт.

31

1259732C1

HUB,47T Internal/18T External

adapter, brake

2шт.

32

101-11275

SNAP RING,#275, 2.594, Ext

Replaces 327059R1

2шт.

33

1259753C1

THRUST WASHER

adapter brake

2шт.

34

94652C3

SHAFT

sun gear, right (Shown)

1шт.

35

1981327C1

PLUG

PIN - shaft locator

1шт.

36

94651C2

SHAFT

sun gear, left (15 teeth)

1шт.

40

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

2шт.

1349182C1

SEAL KIT

seal and sleeve, kit no longer available, order components

1шт.

41

1349183C1

OIL SEAL

oil

1шт.

42

1349184C1

SLEEVE,132.67mm ID x 142.8mm OD x 23mm L

wear

1шт.
