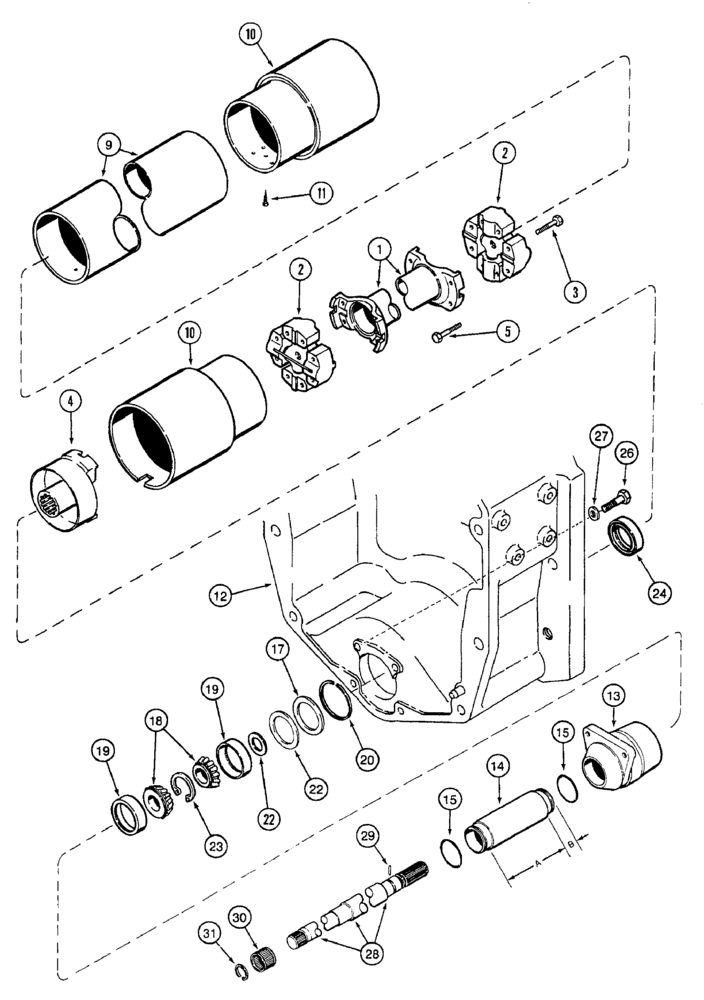

Запчасти Case IH 7250 (6-064) - FRONT AXLE DRIVE SHAFT, MFD TRACTOR (06) - POWER TRAIN

1

93381C1

SHAFT

drive

1шт.

2

93326C1

U-JOINT SPIDER

ASSEMBLY - shaft

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

hex, special, spider

4шт.

4

110840A1

YOKE

UNIVERSAL JOINT YOKE shaft

1шт.

Incl Plug (Not Serviced Separately)

1шт.

5

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

8шт.

282500A2

SHIELD

SET - drive shaft, matched, replaces 1349323C1 shield set

1шт.

Part of the Attachment Kit P/N A67916

1шт.

9

NSS

NOT SOLD SEPARAT

GUARD - drive (Order shield set)

1шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE - outer (Order shield set)

2шт.

11

93199C1

FASTENER

ratchet

2шт.

Part of the Attachment Kit P/N A67916

1шт.

12

119491A1

HOUSING

flywheel, see Figure 2-116 or 2-118 for related parts

1шт.

13

1342533C1

SUPPORT

shaft output

1шт.

14

1997786C2

TUBE,41.28 mm ID, 55 mm OD

front cage, 178 mm long; A dimension is 140 mm, B dimension is 19 mm long

1шт.

15

238-7132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 7, 75 Duro

(Replaces 238-5132), if used

2шт.

15

193478A1

SEALING RING

SEALRING quad, if used

2шт.

17

1342540C1

SPACER

bearing, output shaft

1шт.

18

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

tapered roller

2шт.

19

ST991

BEARING CUP

tapered roller

2шт.

20

101-21268

SNAP RING,#268, 2.868", Int

RING - internal retaining, No. 268, internal

1шт.

22

131145A1

SHIM

bearing, 0.38 mm

1шт.

22

1342537C1

SHIM

bearing, 0.51 mm

1шт.

22

1342538C1

SHIM

bearing, 0.56 mm

1шт.

22

1342539C1

SHIM

bearing, 0.64 mm

1шт.

23

1259828C1

RING

retaining, external, optional with 100-16131 ring

1шт.

24

1997920C1

SEAL,46.23mm ID x 69.95mm OD x 12.7mm Thk

oil, shaft

1шт.

26

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

28

124414A1

SHAFT

output

1шт.

29

1342534C1

SLOTTED PIN

1шт.

30

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

needle, clutch housing, replaces 220304R1 bearing

1шт.

31

1259828C1

RING

retaining

1шт.

A67916

ATTACHMENT

KIT - MFD dnvelme shield, order from Machinery Price List, Includes: P/N 282500A2 & REF 11

1шт.
