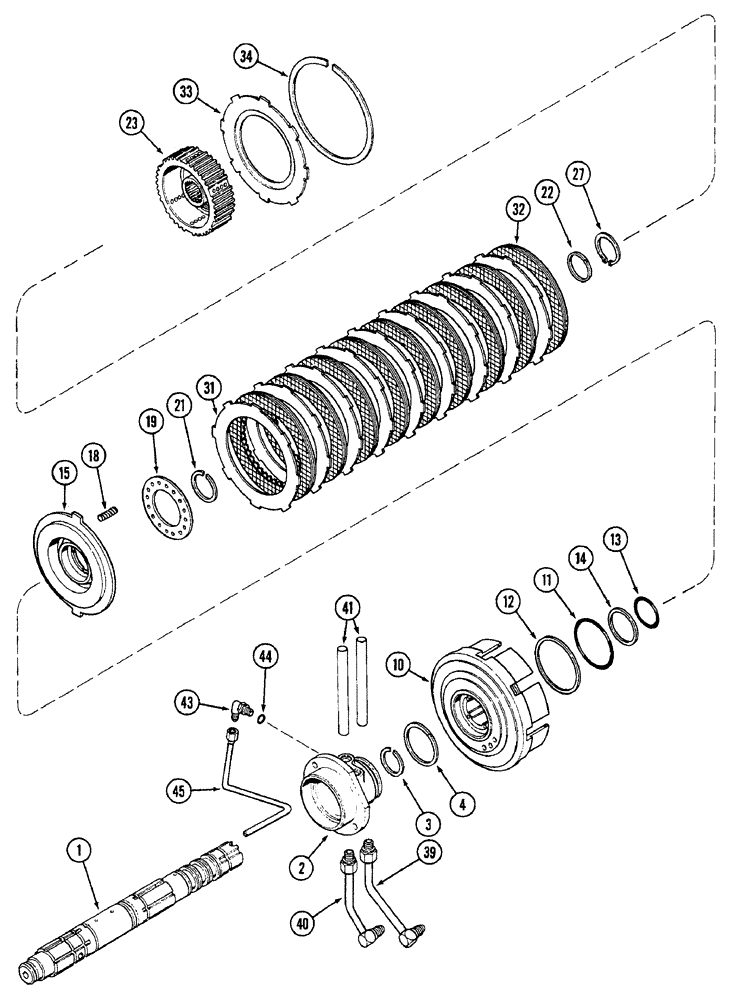

Запчасти Case IH 7250 (6-042) - TRANSMISSION, INPUT SHAFT MASTER CLUTCH (06) - POWER TRAIN

1

1997446C2

SHAFT ASSY.

input (See Figure 6-40 for pins and plugs)

1шт.

2

1342729C1

BEARING HOUSING

bearing

1шт.

3

101-11225

SNAP RING,#225, Ext

Replaces 324051R1 ring

1шт.

4

1286027C2

RING,91.31mm ID x 95.31mm OD x 2.87mm Thk

retaining

1шт.

10

1342240C1

CLUTCH HOUSING

CARRIER - master

1шт.

11

93138C1

RING,1.78mm Thk x 114.02mm ID, -47, 60 Duro

piston, clutch

1шт.

12

92562C1

RING,120.46mm ID x 123.5mm OD x 2.28mm Thk

seal, piston

1шт.

13

93137C1

RING,1.78mm Thk x 72.75mm ID, -40, 60 Duro

piston, clutch

1шт.

14

92561C1

RING,78.46mm ID x 81.5mm OD x 2.28mm Thk

piston, clutch

1шт.

15

112299A2

PISTON ASSY

clutch

1шт.

18

93136C2

SPRING,18.29mm OD x 35.82mm L

clutch

16шт.

19

112329A1

RETAINER

spring

1шт.

21

100-11306

SNAP RING,#306, Ext

Replaces 27121R1

1шт.

22

92555C1

RING,Locking, 63.81mm ID x 67.81mm OD x 2.87mm Thk

seal

1шт.

23

235913A2

HUB

clutch, replaces 1342241C1 hub

1шт.

27

100-11200

SNAP RING,#200, Ext

Replaces 665071R1 ring

1шт.

31

1285974C1

BRAKE PLATE

PLATE - separator, clutch

9шт.

32

1285975C2

CLUTCH DISC

CLUTCH DISK friction, clutch

9шт.

33

1963890C1

DISC

backing, clutch

1шт.

34

1963876C1

SNAP RING,249mm OD, Internal

internal

1шт.

39

1286088C1

TUBE,15.87 mm OD, 157.2, 114.1 mm Length

rear, medium clutch

1шт.

40

1286089C1

TUBE,15.87 mm OD, 174.2, 36.91 mm Length

rear, high clutch

1шт.

41

1342730C1

TUBE,0.75" OD, 208 mm Length

pressure, clutch

2шт.

43

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adj 0-ring boss

1шт.

45

1963935C2

TUBE

lube, gear

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
