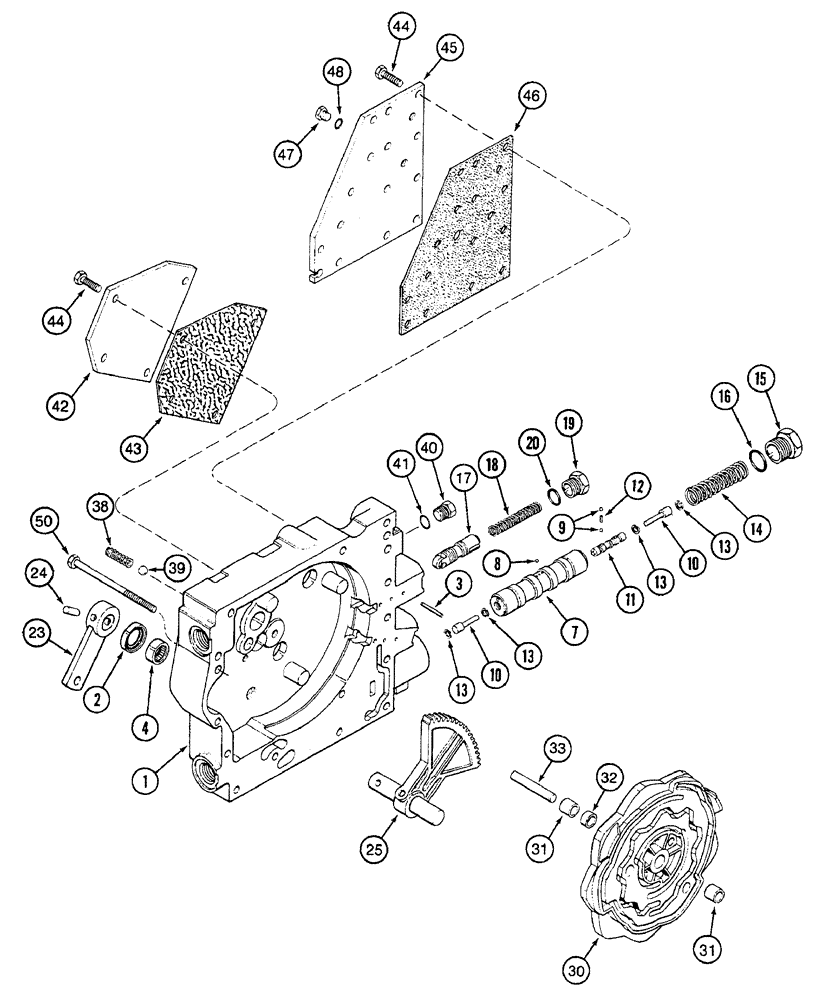

Запчасти Case IH 7250 (6-028) - TRANSMISSION CONTROL VALVE ASSEMBLY, CAM HOUSING SECTION (06) - POWER TRAIN

103183A1

VALVE, CONTROL

ASSEMBLY - transmission (With Creeper)

1шт.

1

1994675C2

HOUSING

ASSEMBLY - cam

1шт.

2

G105118

OIL SEAL

oil

1шт.

3

37-1220

DOWEL,1/8" x 1 1/4"

dowel, 1/8 x 1-1/4 inch, hardened

2шт.

4

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

shaft

1шт.

1994569C1

SPOOL

ASSEMBLY - drive, detent

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - drive, detent

1шт.

8

511-1020

BALL,2mm Dia

2 mm, grade 28, chrome alloy steel

3шт.

9

511-1025

BALL,2.5mm Dia

2.5 mm, grade 28, chrome alloy steel

4шт.

10

NSS

NOT SOLD SEPARAT

STOP - spool, pilot

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - pilot

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - friction, shuttle

2шт.

13

100-2137

SNAP RING,0.375", Int, #37

(Replaces 321298R1) 0.375", Int, #37

4шт.

14

1963882C1

VALVE SPRING

shuttle, detent

1шт.

15

1963881C1

PLUG

hex, 1-1/16-12 inch, drive

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

93099C4

COMPRESSION SPRING

DETENT - cam

2шт.

18

1286235C1

VALVE SPRING

detent, cam

2шт.

19

92957C1

PLUG

detent

2шт.

20

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

2шт.

23

1283927C2

LEVER

speed, replaces 1283927C1 lever

1шт.

24

837-8020

DOWEL,8mm OD x 20mm L

dowel, 8 x 20 mm, hardened

1шт.

25

92498C1

SHAFT

control cam, includes gear, replaces 1342284C1 gear and shaft kit

1шт.

30

93097C2

CAM

ASSEMBLY - gear selector

1шт.

31

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

cam

2шт.

32

1286263C2

CAMSHAFT BEARING

bearing, cam

1шт.

33

92945C1

SHAFT

cam

1шт.

38

92972C3

SPRING

compression

1шт.

39

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

40

129998

PLUG,1/2" - 20 ORB

2шт.

41

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

42

1286209C3

PLATE ASSY.

cover, valve

1шт.

43

1286265C5

GASKET,0.86mm Thk

plate, cover

1шт.

44

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

See Fig. 6-38

12шт.

45

1981142C1

LARGE PLATE

PLATE, LARGE cover, valve

1шт.

46

92654C6

GASKET,0.53mm Thk

plate, cover

1шт.

47

86529630

PLUG,Hex Soc, 3/8"-24 ORB

2шт.

48

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

50

828-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 120 mm, class 10.9, see Figure 6-38

1шт.
