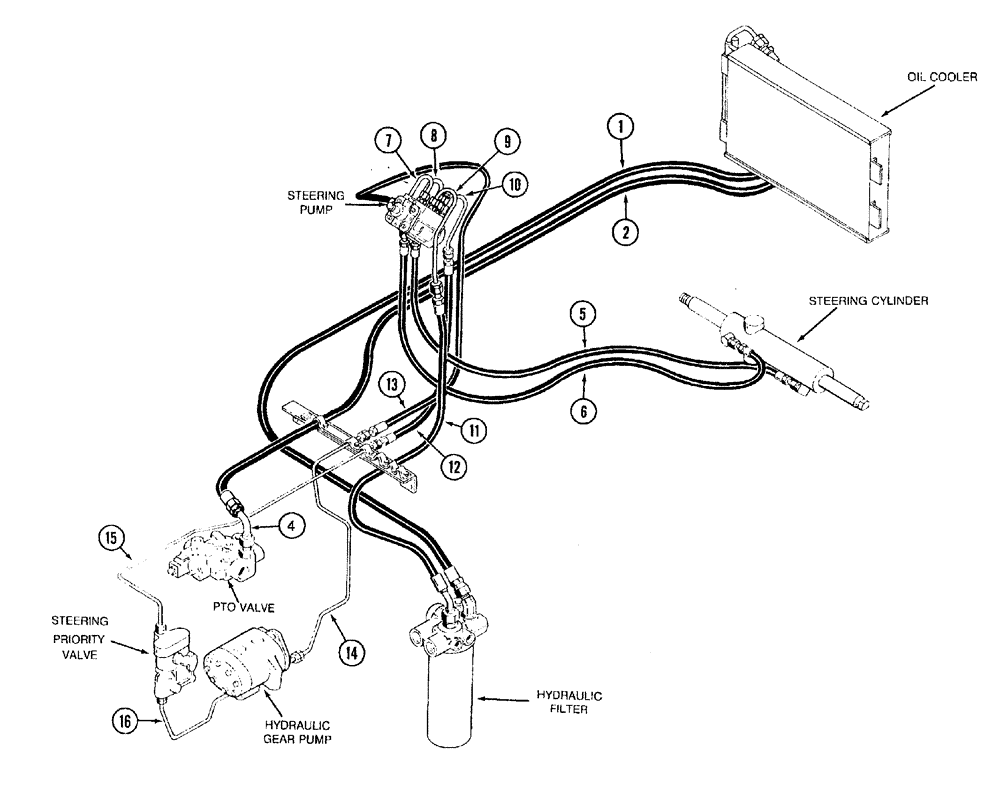

Запчасти Case IH 7250 (1-18) - PICTORIAL INDEX, STEERING HYDRAULICS, 2-WHEEL DRIVE (00) - PICTORIAL INDEX

1

Upper Oil Cooler Hose, page 5-15

1шт.

See page 5-17 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

2

Lower Oil Cooler Hose, page 5-15

1шт.

See page 5-17 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

4

Cooler Supply Tube, page 5-15

1шт.

See page 5-17 for hoses used on tractor P.I.N. JJA0064978 and after.

1шт.

5

Right Turn Steering Hose, page 5-11

1шт.

6

Left Turn Steering Hose, page 5-11

1шт.

7

Left Turn Steering Tube, page 5-11

1шт.

8

Right Turn Steering Tube, page 5-11

1шт.

9

Steering Return Tube, page 5-11

1шт.

10

Steering Upper Supply Tube, page 5-11

1шт.

11

Steering Return Hose, page 5-11

1шт.

12

Steering Supply Hose, page 5-11

1шт.

13

Steering Signal Hose, page 5-11

1шт.

14

Front Signal Steering Tube, page 5-9

1шт.

15

Steering Supply Tube, page 5-9

1шт.

16

Rear Signal Steering Tube, page 5-9

1шт.
