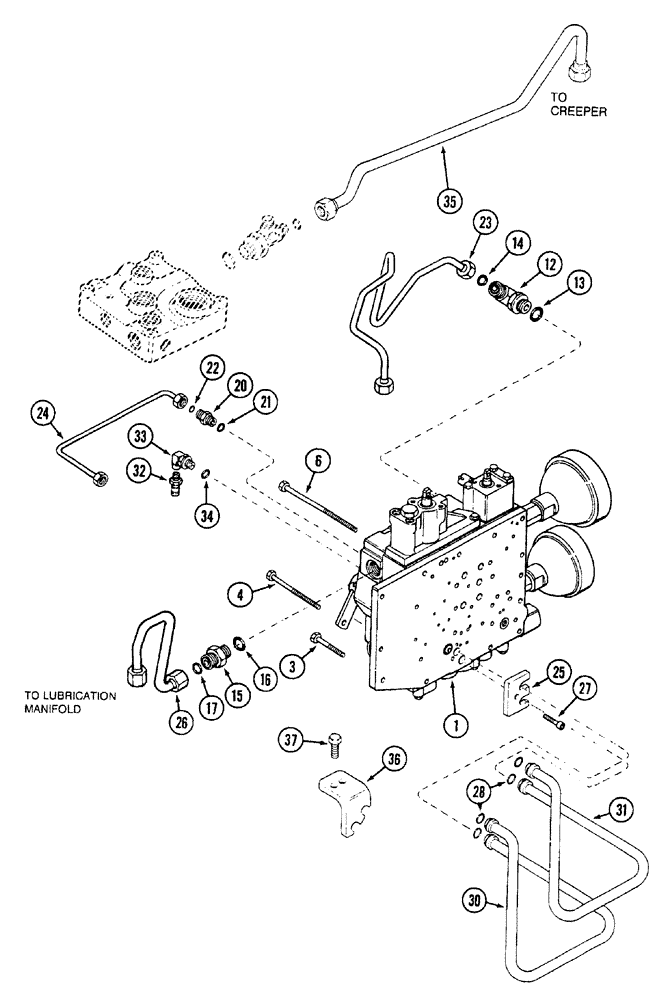

Запчасти Case IH 7250 (6-024) - TRANSMISSION, INTERNAL CONTROL (06) - POWER TRAIN

1

103182A1

VALVE, CONTROL

ASSEMBLY - transmission (Without Creeper), parts list Figures 6-28 - 6-38

1шт.

1

103183A1

VALVE, CONTROL

ASSEMBLY - transmission (With Creeper), parts list Figures 6-28 - 6-38

1шт.

3

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

3шт.

4

828-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 120 mm, class 10.9, see Figure 6-38

3шт.

4

828-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 140 mm, class 10.9, see Figure 6-38

8шт.

6

814-10175

SCREW,Hex, M10 x 1.5 x 175mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 175 mm

2шт.

12

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1 -14 face seal x 7/8-14 inch adj O-ring boss

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight (With creeper)

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

23

1968016C2

HYD TUBE

inlet, valve

1шт.

24

1968170C1

HYD TUBE

jumper (With creeper)

1шт.

25

1342600C2

ANCHOR

RETAINER - tube

1шт.

26

1348287C1

HYD TUBE,0.625" OD, 399.7, 343.5 mm Length

clutch, master

1шт.

27

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

1шт.

28

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

4шт.

30

1349400C1

TUBE,5.88 mm OD, 305, 277 mm Length

clutch, odd

1шт.

31

1349402C1

TUBE,5.88 mm OD, 331, 61 mm Length

clutch, even

1шт.

32

H434164

COUPLING

quick check .

1шт.

33

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

35

1348316C1

HYD TUBE,0.5" OD, 548.8, 32.6 mm Length

TUBE - lubrication, creeper drive

1шт.

36

1981208C1

SUPPORT

BRACKET - tube

1шт.

37

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 25 mm

2шт.
