Запчасти Case IH 7250 (6-014) - TRANSMISSION SPEED, OUTPUT SHAFT AND FRONT CLUTCH (06) - POWER TRAIN

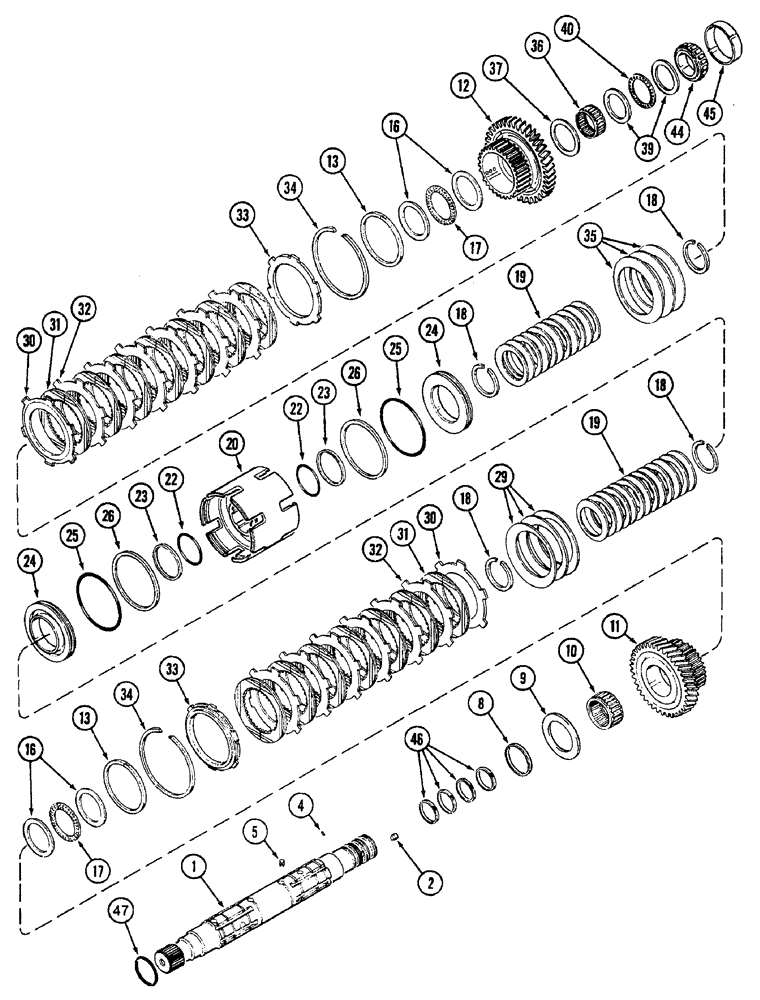

Схема запчастей Case IH 7250 - (6-014) - TRANSMISSION SPEED, OUTPUT SHAFT AND FRONT CLUTCH (06) - POWER TRAIN
24
11
17
20
30
45
32
18
31
32
25
24
33
17
2
44
29
25
23
37
40
39
10
36
1
46
26
22
19
19
33
34
18
8
16
18
13
16
12
35
26
30
13
18
22
9
23
4
47
5
31
34

Артикул

Название

Примечание

Количество

1

1997444C1

SHAFT

ASSEMBLY - output

1шт.

2

1342852C1

PLUG

sealing, 12 mm

3шт.

4

38-3605

PIN,3/32" x 5/16", Coiled

6шт.

5

1963875C1

COTTER PIN

slotted spring

4шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

support, bearing

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

caged

1шт.

11

1285985C1

GEAR

odd/even clutch and fifth, 34 teeth

1шт.

12

1285987C1

PINION

GEAR - driven, reverse, 39 teeth

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal, clutch

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

bearing

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

2шт.

18

93350C1

RING

retaining, external

4шт.

19

1286012C2

BELLEVILLE WASHER

Belleville spring, return

24шт.

20

93304C2

CLUTCH HOUSING

CARRIER - fifth and reverse

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch

2шт.

24

1285998C1

PISTON

clutch

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift, clutch

2шт.

29

93129C1

BELLEVILLE WASHER

Belleville spring, cushion

3шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction, spring

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

14шт.

32

92934C2

DISC

separator

12шт.

33

1342645C3

CLUTCH DISC

CLUTCH DISK backing, clutch, 9.7 mm thick

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

retaining

2шт.

35

93129C1

BELLEVILLE WASHER

Belleville spring, cushion

3шт.

36

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

caged

1шт.

37

1342513C1

SPACER

bearing

1шт.

39

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

bearing

2шт.

40

K620185

THRUST BEARING

needle, thrust, replaces 374011R1 bearing

1шт.

44

219530H1

BEARING ASSY,49.99mm ID x 24.71mm W

tapered roller

1шт.

45

ST964

BEARING CUP,2.063" ID x 3.626" OD x 0.9768"

tapered roller

1шт.

46

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

seal

4шт.

47

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1-3/4 ID x 1/8 inch wide, master clutch hub

1шт.

Выбрано товаров: 35
