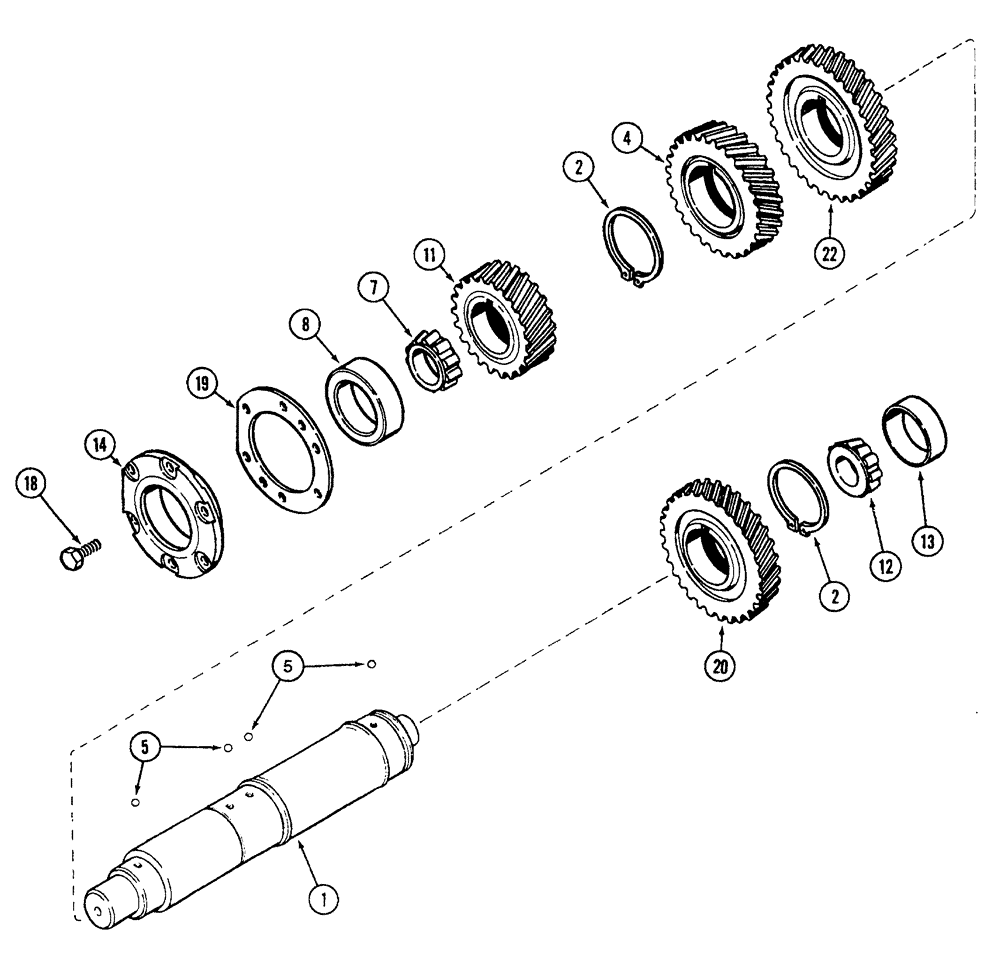

Запчасти Case IH 7250 (6-010) - TRANSMISSION SPEED, COUNTERSHAFT WITHOUT CREEPER (06) - POWER TRAIN

1

1342253C2

SHAFT

counter, replaces 1342253C1 shaft

1шт.

2

100-11293

SNAP RING,#293, Ext

Replaces 304697C1

2шт.

4

1285983C1

DRIVING GEAR

GEAR - driver, third and fourth, 34 teeth

1шт.

5

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24, replaces 211-210 ball

4шт.

7

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

tapered roller

1шт.

8

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

tapered roller

1шт.

11

1285981C1

GEAR

GEAR - driver, first and second, 29 teeth

1шт.

12

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

tapered roller

1шт.

13

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller

1шт.

14

1286000C3

ROLLER CAGE BEARING,82 mm ID x 148 mm OD x 9.9, 19 mm

bearing

1шт.

18

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

1264551C2

STRIPPER PACKAGE

KIT - shim, bearing, kit no longer available, order components

1шт.

19

120647C2

SHIM,0.080mm Thk

Bearing

1шт.

19

120648C2

SHIM,0.100mm Thk

Bearing

1шт.

19

120649C2

SHIM,0.130mm Thk

Bearing

1шт.

19

120650C2

SHIM,0.300mm Thk

Bearing

1шт.

19

120651C2

SHIM,0.760mm Thk

Bearing

1шт.

20

1285989C1

GEAR

GEAR - driven, second, fourth and sixth, 37 teeth

1шт.

22

1285986C1

GEAR

GEAR - driven, first, third and fifth, 39 teeth

1шт.
