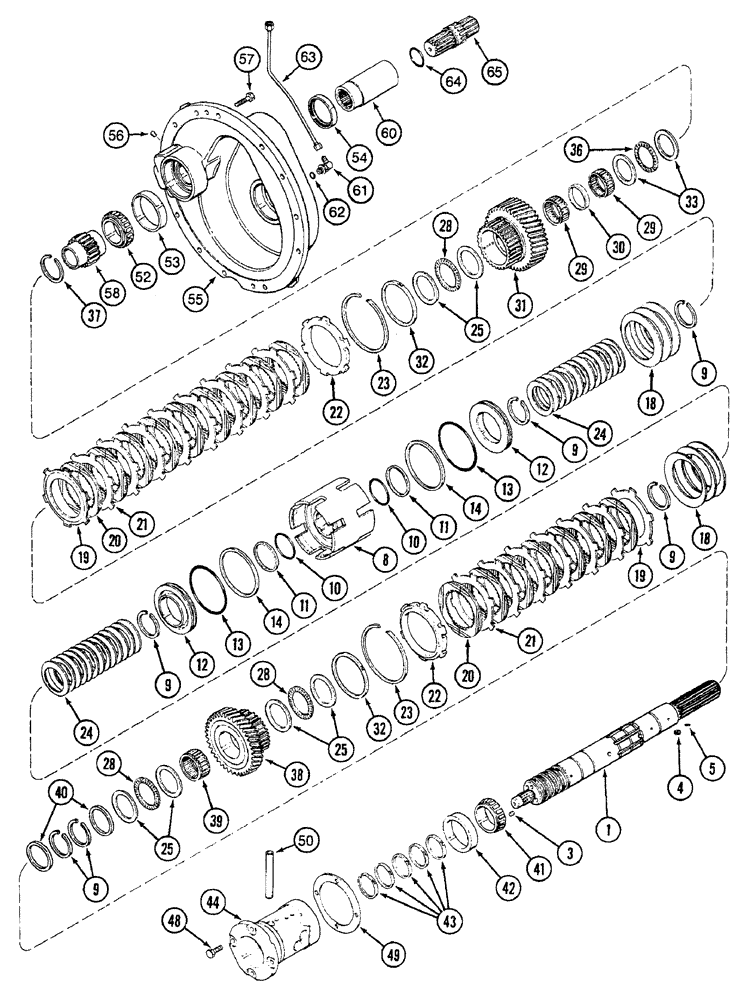

Запчасти Case IH 7250 (6-006) - TRANSMISSION SPEED, INPUT SHAFT WITH CREEPER (06) - POWER TRAIN

1

1963894C1

SHAFT

ASSEMBLY - input

1шт.

3

1286085C1

LARGE PIN,10.02mm OD x 11mm L

PIN, LARGE dowel, 10 x 11 mm, hardened

4шт.

4

1963888C1

PIN,12.7mm OD x 14mm L

slotted spring

2шт.

5

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

8

93304C2

CLUTCH HOUSING

CARRIER - fifth and reverse

1шт.

9

93350C1

RING

retaining, external

6шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

2шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch

2шт.

12

1285998C1

PISTON

clutch, shift

2шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

2шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

2шт.

18

93129C1

BELLEVILLE WASHER

Belleville spring, cushion, clutch

6шт.

19

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction, spring

2шт.

20

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

14шт.

21

92934C2

DISC

separator, clutch

12шт.

22

1342645C3

CLUTCH DISC

CLUTCH DISK backing, 9.7 mm thick

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

retaining, plate

2шт.

24

1286012C2

BELLEVILLE WASHER

Belleville spring, piston return

26шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

bearing

6шт.

28

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

3шт.

29

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

caged

2шт.

30

93297C1

SPACER,62.45mm ID x 66.48mm OD x 9.98mm L

bearing, input

1шт.

31

1342495C1

DRIVEN GEAR

GEAR - second, fourth and sixth, 37 teeth

1шт.

32

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal, clutch

2шт.

33

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

bearing

2шт.

36

K620185

THRUST BEARING

needle, thrust

1шт.

37

92793C1

RING

retaining, external

1шт.

38

1285985C1

GEAR

odd/even clutch and fifth, 34 teeth

1шт.

39

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

caged

1шт.

40

1286039C1

SPACER

bearing

2шт.

41

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

tapered roller

1шт.

42

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

tapered roller

1шт.

43

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

seal, input shaft

5шт.

44

1981213C1

NEEDLE BEARING CAGE,63.1 mm ID x 113.95 mm OD x 156.6 mm

bearing, input

1шт.

48

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

4шт.

94654C1

SHIM

KIT - bearing, kit no longer available, order components

1шт.

49

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

Bearing

1шт.

49

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

Bearing

1шт.

49

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

Bearing

1шт.

49

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

Bearing

1шт.

49

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

Bearing

1шт.

50

1981207C1

TUBE,15.913 mm OD

lube

1шт.

52

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

tapered roller, 2-1/4 inch ID

1шт.

53

105497H

BEARING CUP,96.85mm OD x 15.77mm W

tapered roller

1шт.

54

108935A1

SEAL,60.33mm ID x 79.38mm OD x 9.5mm Thk

shaft, input

1шт.

55

92837C2

SUPPORT ASSY.

bearing, front

1шт.

56

20229R1

DOWEL,1/2" x 1/2"

dowel, 1/2 x 1/2 inch

8шт.

57

615-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 12 - 1.75 x 40 mm, replaces 30044R1 bolt

11шт.

58

92794C1

PINION

GEAR - creeper (17 teeth)

1шт.

60

92841C1

SPLINED COUPLING,13T

shaft input

1шт.

61

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 degree, 7/16-20 inch flare x adj O-ring boss

1шт.

62

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

63

92836C1

TUBE,.25" OD

TUBE - supply, lube

1шт.

64

108932A1

O-RING,1.609" ID x 1.887" OD x 0.139"

O-RING - 40.87 ID x 3.53 mm wide

1шт.

65

108933A1

SHAFT

driven, damper, with 4.45 mm wide O-ring groove

1шт.
