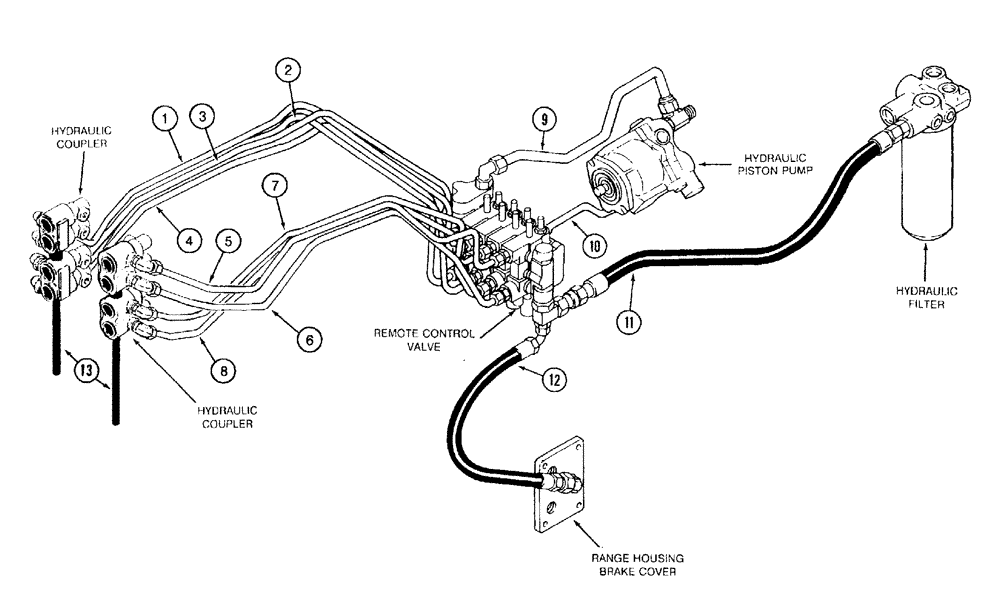

Запчасти Case IH 7250 (1-16) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

1

No. 1 Remote Drop Tube, page 8-47

1шт.

2

No. 1 Remote Raise Tube, page 8-47

1шт.

3

No. 2 Remote Drop Tube, page 8-47

1шт.

4

No. 2 Remote Raise Tube, page 8-47

1шт.

5

No. 4 Remote Drop Tube, page 8-85

1шт.

6

No. 4 Remote Raise Tube, page 8-85

1шт.

7

No. 3 Remote Drop Tube, page 8-79

1шт.

8

No. 3 Remote Raise Tube, page 8-79

1шт.

9

Priority Valve Supply Tube, page 8-19

1шт.

10

Pump Signal Tube, page 8-19

1шт.

11

Remote Return Hose, page 8-3

1шт.

12

Bleed Hose, Return, page 8-51

1шт.

13

Drain Hose, Coupler, page 8-47, 8-79, 8-85

1шт.
