Запчасти Case IH 7250 (5-052) - FRONT WHEELS, MFD TRACTOR, WITH 4-1/4 INCH AND 5-1/4 INCH DISC OFFSET (05) - STEERING

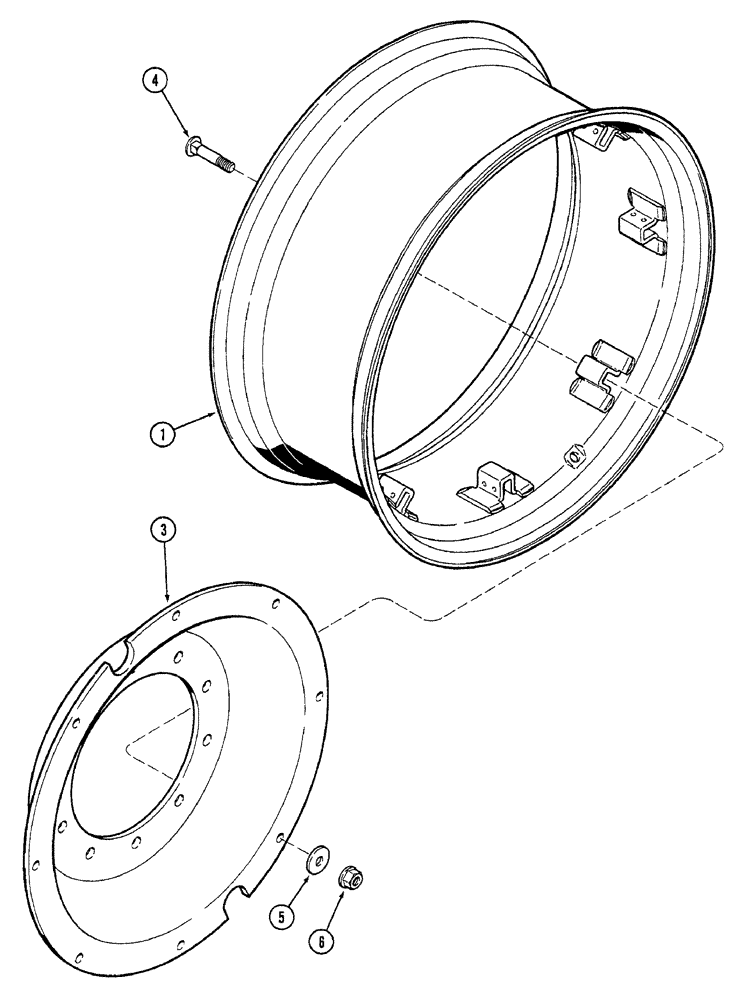

Схема запчастей Case IH 7250 - (5-052) - FRONT WHEELS, MFD TRACTOR, WITH 4-1/4 INCH AND 5-1/4 INCH DISC OFFSET (05) - STEERING
3
6
4
5
1

Артикул

Название

Примечание

Количество

1334496C1

WHEEL

ASSEMBLY - front, W12L x 28, for 13.6 and 14.9 x 28 tire, order from Machinery Price List

2шт.

1

A185508

RIM

WHEEL

1шт.

3

1334431C1

DISC

wheel (5-1/4 inch offset)

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1 -3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

large hex flange, 5/8 inch NC

8шт.

1334501C1

WHEEL

ASSEMBLY - front, W13L x 30, for 14.9 x 30 tire, order from Machinery Price List

2шт.

1

1334499C1

RIM

WHEEL

1шт.

3

1334555C1

DISC

wheel (5-1/4 inch offset)

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

large hex flange, 5/8 inch NC

8шт.

1334494C1

WHEEL

ASSEMBLY - front, W15L x 28, for 16.9 x 28 tire, order from Machinery Price List

2шт.

1

A185509

RIM

WHEEL

1шт.

3

1334431C1

DISC

wheel (5-1/4 inch offset)

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

large hex flange, 5/8 inch NC

8шт.

119912A1

WHEEL

ASSEMBLY - front, DW18A x 28, for 600/65R28 tire, order from Machinery Price List

2шт.

1

120264A1

RIM

WHEEL

1шт.

3

1334431C1

DISC

wheel (5-1/4 inch offset)

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1 -3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

large hex flange, 5/8 inch NC

8шт.

1334495C1

WHEEL

ASSEMBLY - front, W15L x 26, for 16.9 and 18.4 x 26 tire, order from Machinery Price List

2шт.

1

A185510

RIM

WHEEL

1шт.

3

1334430C1

DISC

wheel (4-1/4 inch offset)

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1 -3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

large hex flange, 5/8 inch NC

8шт.

1978522C1

WHEEL ASSY.

front, W15L x 30, for 16.9 x 30 tire, order from Machinery Price List

2шт.

1

1978525C1

RIM

WHEEL

1шт.

3

1334555C1

DISC

wheel (5-1/4 inch offset)

1шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

5

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

6

131-942

FLANGE NUT,Flg, 5/8"-11, G5

large hex flange, 5/8 inch NC

8шт.

Выбрано товаров: 36
