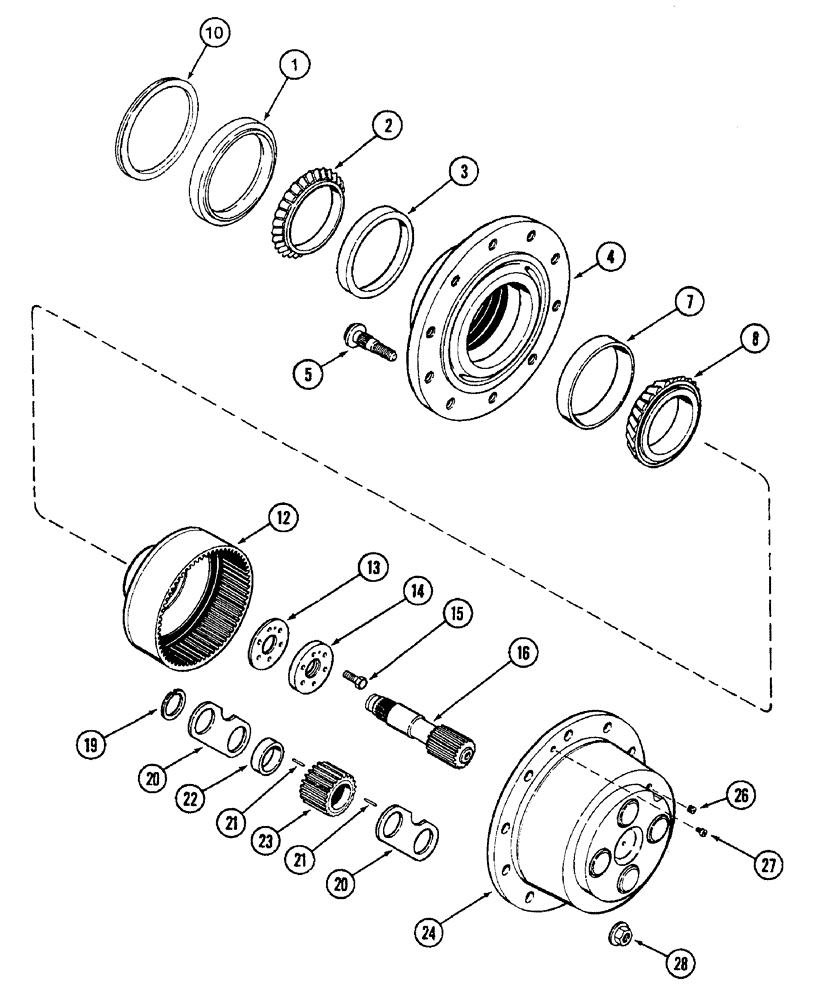

Запчасти Case IH 7250 (5-044) - FRONT AXLE PLANETARIES AND HUB, MFD TRACTOR, FOUR PIN PLANETARY (05) - STEERING

116468A1

AXLE, FRONT

ASSEMBLY - parts list Figures 5-34 - 5-48, no longer available, order 197317A1 or 197316A1 axle assembly

1шт.

197317A1

AXLE, FRONT

ASSEMBLY - 30 kph, parts list Figures 5-34 - 5-48, if used, complete assembly no longer available, order components or if conplete replacement is needed a new 8900 series axle assembly plus additional parts may be used

1шт.

197316A1

AXLE, FRONT

ASSEMBLY - 40 kph, parts list Figures 5-34 - 5-48, if used, complete assembly no longer available, order components or if complete replacement is needed a new 8900 series axle assembly plus additional parts may be used

1шт.

1

128648A1

OIL SEAL

oil, wheel hub

2шт.

Part of the Service Kit P/N 1997596C1

1шт.

2

1277343C1

ROLLER BEARING,107.963 mm ID x 158.763 mm OD x 23.122 mm

tapered roller, inner

2шт.

3

1277344C1

BEARING CUP

tapered roller, inner

2шт.

4

1944402C1

HUB

front wheel, remanufactured

2шт.

4

1944403C1

HUB ASSY.

front wheel, return number, use this part number to return hub for credit when using a remanufactured hub

2шт.

4

1349338C1

HUB

front wheel, new, front

2шт.

5

1997468C1

STUD,3/4" - 16 x 67.2mm, Grade 5

BOLT - wheel, 3/4 inch NF

20шт.

7

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

tapered roller bearing, outer

2шт.

8

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

tapered roller, outer

2шт.

Part of the Service Kit P/N 1997596C1

1шт.

10

1349339C1

SEAL,171mm ID x 187mm OD x 12mm Thk

V-ring

2шт.

12

1277250C1

GEAR, RING

RING, GEAR planetary

2шт.

Part of the Service Kit P/N 1997596C1

1шт.

1981236C1

SHIM KIT

KIT - wheel end

1шт.

Part of the Service Kit P/N 1997596C1

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.001 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.002 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.005 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.010 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.020 inch (Set of 5)

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - wheel, 0.030 inch (Set of 5)

1шт.

14

1981278C1

LARGE PLATE

PLATE, LARGE retaining, planet carrier

2шт.

15

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

12шт.

16

1961770C1

GEAR

sun, planetary drive

2шт.

16

1961770C1R

REMAN-GEAR

Sun, planetary drive

2шт.

16

1961770C1C

CORE-GEAR

Return Part Number

2шт.

Part of the Service Kit P/N 1997596C1

1шт.

19

102-12175

SNAP RING,#175, 1.673", Ext Spiral

external spiral retaining, No. 175, replaces 28606R1 ring

8шт.

20

1277372C2

SPACER

flat

8шт.

21

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

BEARING

376шт.

22

1277371C1

SPACER

bearing

8шт.

23

1349038C1

PINION

GEAR - planetary

8шт.

24

1342867C1

FLANGE ASSY

CARRIER - planetary gears, 3 Pin Planetary

2шт.

24

86020257

FLANGE

FLANGE AND GEAR ASSEMBLY, 4 Pin Planetary, See Note

2шт.

Carrier for the 4 Pin Planetary is no longer available, Order 86020257 assembly

1шт.

26

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

square socket, magnetic, 1/2 inch PT, replaces 444667 plug

2шт.

27

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket, 1/4 NC x 1/2 inch

4шт.

28

1280579C1

WHEEL NUT

hex flange, wheel

20шт.

1997596C1

PACKAGE, REPAIR

KIT - service, wheel end, Includes: REF 1, 8, 12, P/N 1981236C1 & 16

1шт.
