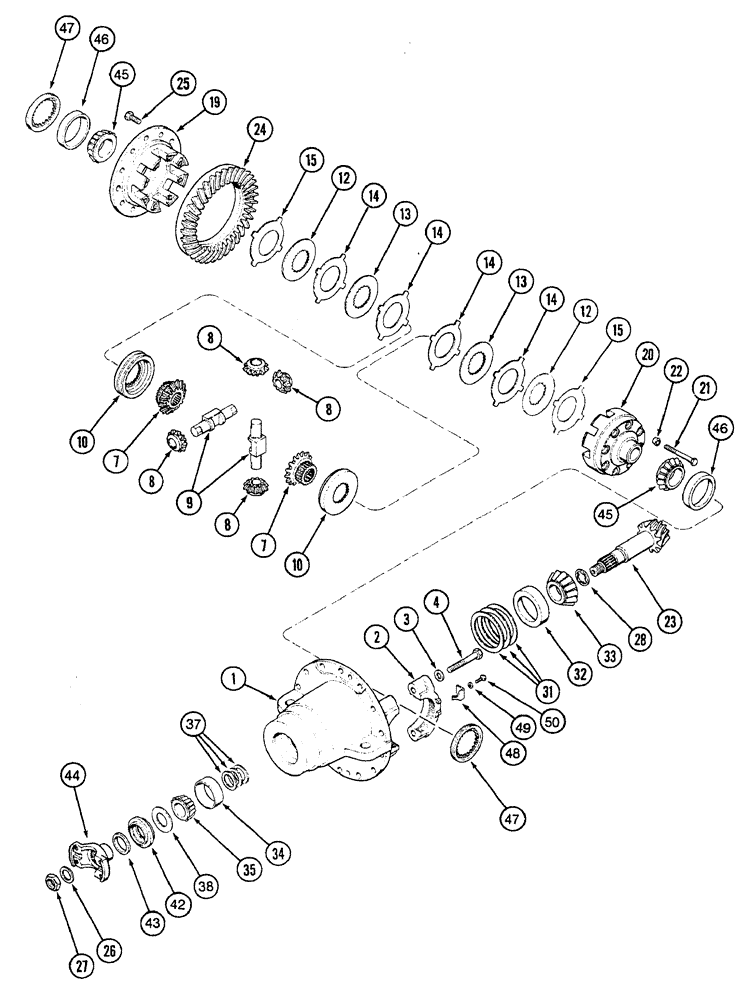

Запчасти Case IH 7250 (5-040) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING

116468A1

AXLE, FRONT

ASSEMBLY - parts list Figures 5-34 - 5-48, no longer available, order 197317A1 or 197316A1 axle assembly

1шт.

197317A1

AXLE, FRONT

ASSEMBLY - 30 kph, parts list Figures 5-34 - 5-48, if used, complete assembly no longer available, order components or if complete replacement is needed a new 8900 series axle assembly plus additional parts may be used

1шт.

197316A1

AXLE, FRONT

ASSEMBLY - 40 kph, parts list Figures 5-34 - 5-48, if used, complete assembly no longer available, order components or if complete replacement is needed a new 8900 series axle assembly plus additional parts may be used

1шт.

1961734C1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 116468A1 or197317A1 axle assembly

1шт.

128926A1

DIFFERENTIAL

CARRIER ASSEMBLY - front axle, 197316A1 axle assembly

1шт.

1961741C1

HOUSING

CARRIER ASSEMBLY - differential

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, differential

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

434320R1

BOLT,Hex, 5/8" - 18 x 3 3/4", Gr 8

hex, 5/8 NF x 3-3/4 inch grade 8

4шт.

1277225C2

DIFFERENTIAL

ASSEMBLY - front axle

1шт.

1277402C1

KIT

differential, gear

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

4шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - differential

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

2шт.

1968294C1

KIT

disc and plate, differential

1шт.

12

NSS

NOT SOLD SEPARAT

DISC - dished

2шт.

13

NSS

NOT SOLD SEPARAT

DISC - flat

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - flat

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE - dished

1шт.

NSS

NOT SOLD SEPARAT

GASKET - oil seal (Not used this application)

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear half, differential

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - half, differential

1шт.

21

1997853C1

BOLT

BOLT - special, differential case

8шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - bolt

8шт.

1968293C1

BEVEL GEAR

GEAR SET - ring and pinion, differential, 4.10 ratio, 116468A1 or 197317A1 axle assembly

1шт.

128864A1

GEAR-SET

ring and pinion, differential, 3.73 ratio, 197316A1 axle assembly

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - ring, front differential

1шт.

25

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - hex head, replaces 1287668C1 bolt

12шт.

26

H224501

WASHER

flat, special, 7/8 inch, replaces 912716R1 washer

1шт.

27

232-46114

LOCK NUT,7/8"-14, GC

(Replaces 912726R1)

1шт.

28

N9847

SPACER

pinion gear, pinion, replaces 1969538C1 spacer

1шт.

1277229C1

PACKAGE

KIT - shim, pinion adjusting

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.003 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.005 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.010 inch

5шт.

32

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

tapered roller

1шт.

33

1968296C1

TAPERED BEARING

tapered roller

1шт.

34

1968289C1

BEARING ASSY

tapered roller

1шт.

35

1968288C1

BEARING ASSY

tapered roller

1шт.

37

1961745C1

KIT

shim, pinion adjustment, order 5 pieces each of 912708R1, 912709R1, 912710R1 and 912711R1 shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.003 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.010 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.030 inch

5шт.

38

912712R1

WASHER

pinion oil seal

1шт.

42

H758326

OIL SEAL

oil, pinion shaft, replaces 1277230C1 seal

1шт.

43

345427C1

SLINGER

RING - dust shield

1шт.

44

1961747C1

YOKE

UNIVERSAL JOINT YOKE YOKE - pinion shaft

1шт.

45

1968291C1

ROLLER BEARING

CONE - tapered roller, differential mounting

2шт.

46

1968292C1

BEARING

CUP - tapered roller, 4-1/8 inch OD, differential mounting

2шт.

47

1277233C1

RING NUT,14T

differential bearing adjust

2шт.

48

1277234C1

CLIP

bearing adjusting ring

2шт.

49

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened, replaces 27326R1 1/16 inch thick washer

2шт.

50

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.
