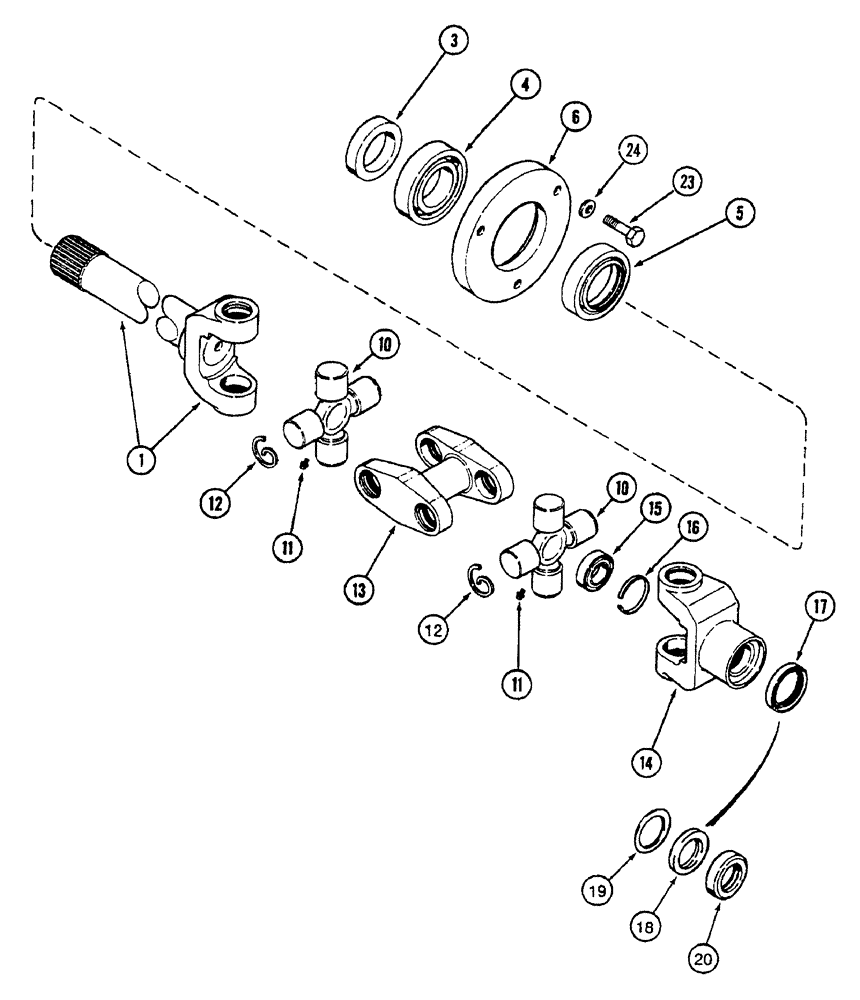

Запчасти Case IH 7250 (5-038) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING

116468A1

AXLE, FRONT

ASSEMBLY - parts list Figure 5-34 - 5-48, no longer available, order 197317A1 or 197316A1 axle assembly

1шт.

197317A1

AXLE, FRONT

ASSEMBLY - 30 kph, parts list Figures 5-34 - 5-48, if used, complete assembly no longer available, order components or if complete replacement is needed a new 8900 series axle assembly plus additional parts may be used

1шт.

197316A1

AXLE, FRONT

ASSEMBLY - 40 kph, parts list Figures 5-34 - 5-48, if used, complete assembly no longer available, order components or if complete replacement is needed a new 8900 series axle assembly plus additional parts may be used

1шт.

1

1961775C1

SHAFT

ASSEMBLY - axle, left, includes items 1-5

1шт.

1

1968286C1

SHAFT ASSY.

axle, right, shown

1шт.

1277253C1

PACKAGE

KIT - bearing and seal, axle

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

5

A76014

OIL SEAL

oil

1шт.

6

1997795C1

SHIN

RETAINER - axle

1шт.

10

133137C91

KIT

cross, bearing, replaces 1961778C1 bearing assembly

1шт.

11

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

13

1961777C1

YOKE

UNIVERSAL JOINT YOKE YOKE - center, front axle

2шт.

14

1961798C1

YOKE

UNIVERSAL JOINT YOKE YOKE ASSEMBLY - outer, front axle

2шт.

15

1961753C1

SEAL

yoke, inner

1шт.

16

1277405C1

RING

retaining

1шт.

17

1287608C1

SEAL

yoke, outer, no longer available, order 193075A2 Sunshaft seal kit

1шт.

193075A2

SEAL KIT

KIT - Sunshaft, includes instructions, replaces 193075A1 kit

1шт.

18

185760A1

OIL SEAL,39.67mm ID x 52.55mm OD x 3.68mm Thk

lip, oil

1шт.

19

NSS

NOT SOLD SEPARAT

SPACER - seal, order 193075A2 kit

1шт.

20

128647A1

OIL SEAL

oil, 1-9/16 x 2-1/8 x 1/2 inch

1шт.

21

235628A1

BUSHING

spindle, see Figure 5-34, item 13

1шт.

22

B17069

LOCTITE

Hi Strength, No. 601, 2 oz. (50 ml), not shown

1шт.

23

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

6шт.

24

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened, replaces 25896R1 washer

6шт.
