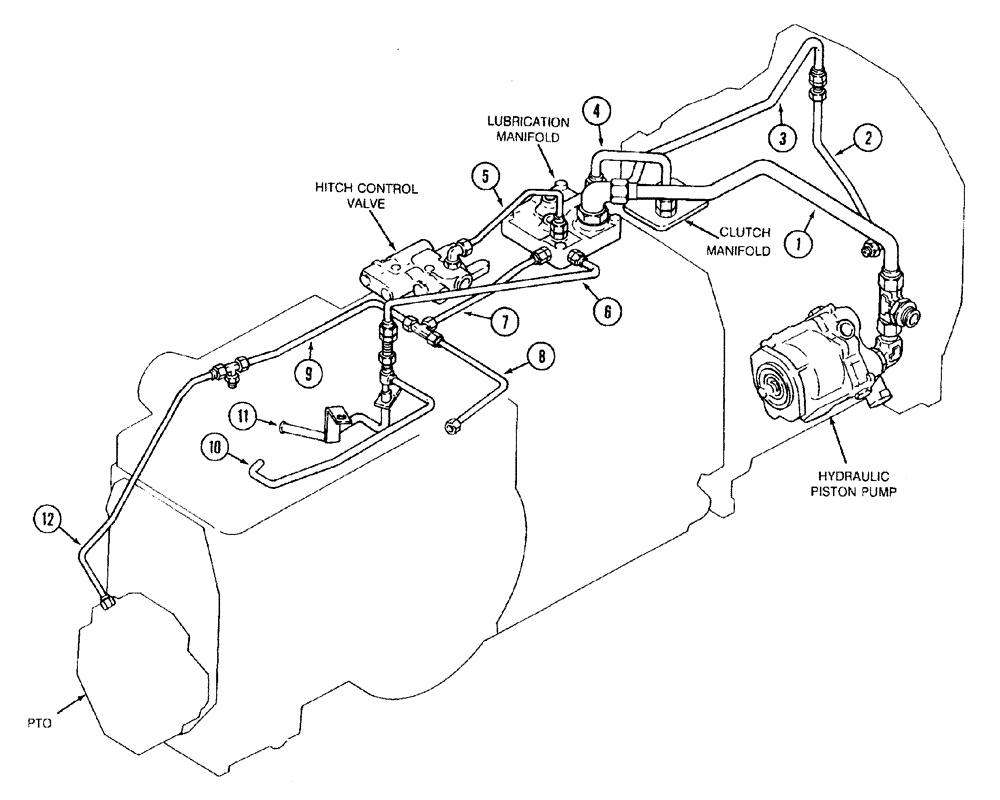

Запчасти Case IH 7250 (1-14) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

1

Manifold Lubrication Tube, page 8-3

1шт.

2

Lubrication Supply Tube, page 6-9

1шт.

3

Creeper Drive Lubrication Tube, page 6-21, 6-25

1шт.

4

Odd/Even Lubrication Tube, page 6-21

1шт.

5

Valve Return Tube, page 8-27

1шт.

6

Draft Cylinder Lubrication Tube, page 6-21

1шт.

7

Main Lubrication Supply Tube, page 6-21

1шт.

8

Right Brake Lubrication Tube, page 6-23

1шт.

9

Left Brake Lubrication Tube, page 6-23

1шт.

10

Internal Lubrication Tube, page 8-29

1шт.

11

Bevel Gear Lubrication Tube, page 6-71

1шт.

12

PTO Lubrication Tube, page 6-23

1шт.
