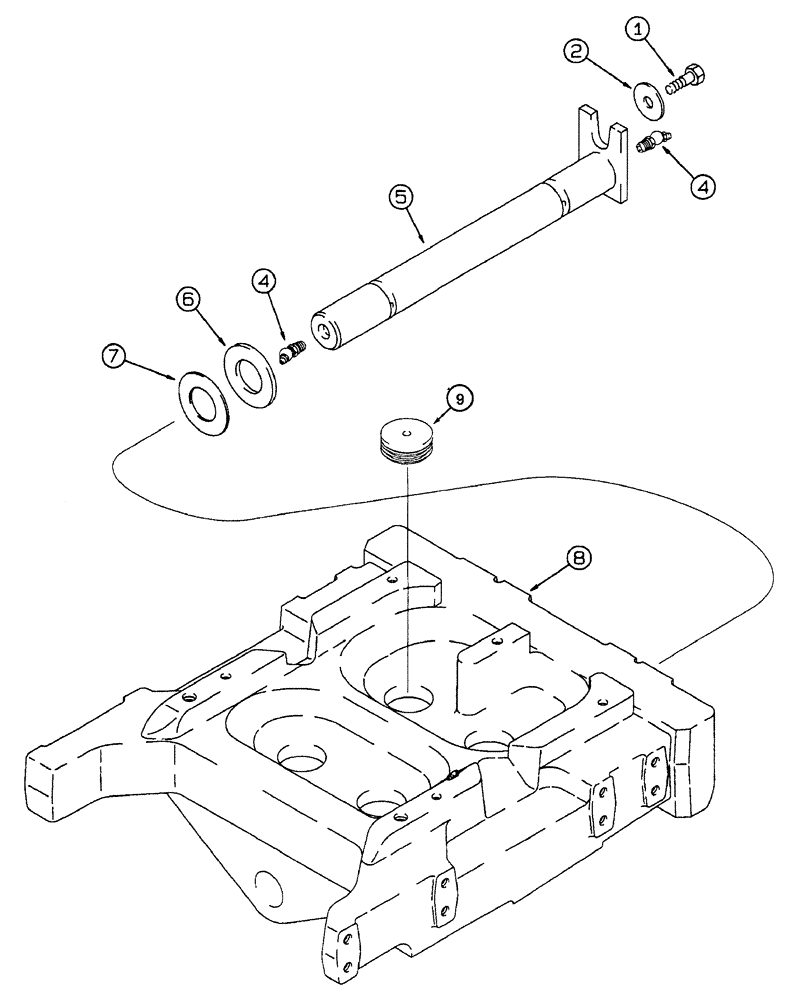

Запчасти Case IH 7250 (5-026) - FRONT AXLE SUPPORT, 2-WHEEL DRIVE (05) - STEERING

1

30225R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 30 mm

1шт.

2

101936C2

WASHER

flat, hardened, special, pivot, Serial Range: pin-front

1шт.

4

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

2шт.

5

1348230C1

PIVOT PIN,49.95mm OD x 530mm L

front axle

1шт.

6

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, front axle pivot

2шт.

7

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

flat, pivot, front axle

1шт.

8

137316A3

SUPPORT ASSY.

BOLSTER - steering, front axle support, replaces A185918 bolster, see Figure 9-18 for bolster plate

1шт.

9

192896A1

PLUG

front support, if used

4шт.
