Запчасти Case IH 7250 (5-004) - STEERING WHEEL AND COLUMN, DELUXE (05) - STEERING

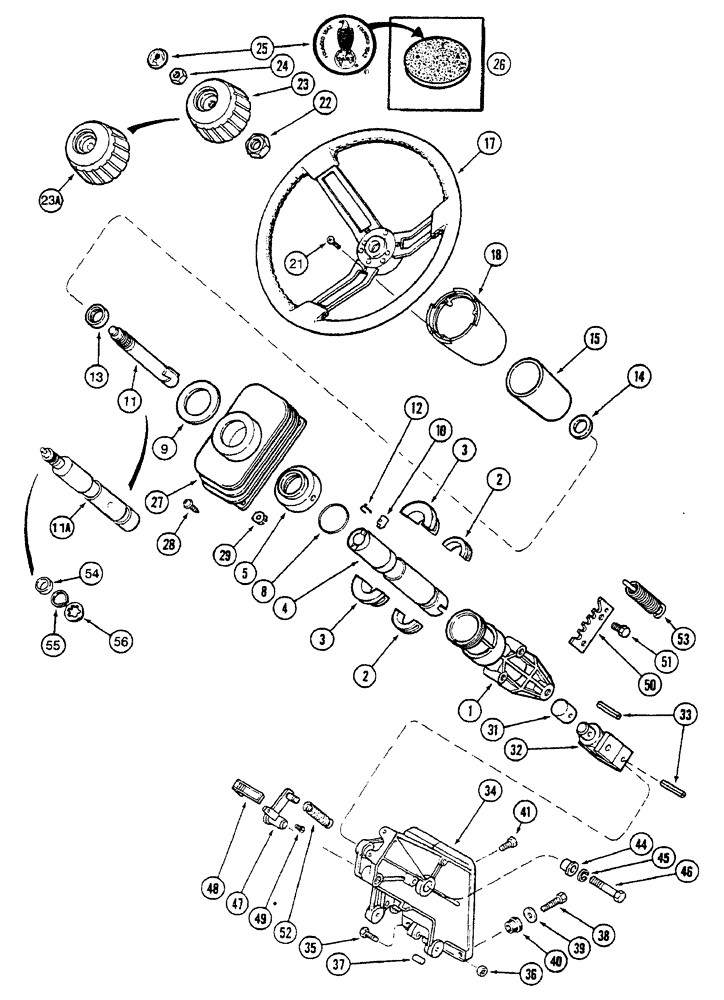

Схема запчастей Case IH 7250 - (5-004) - STEERING WHEEL AND COLUMN, DELUXE (05) - STEERING
53
52
56
5
51
34
48
28
55
35
31
29
11a
37
3
4
50
41
26
38
33
49
15
45
10
12
2
11
3
23a
25
54
39
18
32
44
14
22
13
24
17
36
40
46
8
1
2
27
9
23
21
47

Артикул

Название

Примечание

Количество

1

1989917C1

HOUSING

support, steering

1шт.

2

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

lower, steering tube

2шт.

Part of the Steering Column Modification Kit P/N B92960

1шт.

3

103985C1

BUSHING,35.05mm ID x 50.9mm OD x 38.1mm L

upper, steering tube

2шт.

Part of the Steering Column Modification Kit P/N B92960

1шт.

4

1954243C2

TUBE

steering wheel, telescoping, no longer available, order B92960 kit, if used

1шт.

5

148921C1

CAP

column

1шт.

8

1348393C1

O-RING,1.984" ID x 0.139" Width

steering column cap

1шт.

Part of the Steering Column Modification Kit P/N B92960

1шт.

9

1954246C1

WASHER

shield

1шт.

10

1954248C1

PIN

stop, no longer available, order B92960 kit, if used

1шт.

11

1954247C1

SHAFT

telescoping, if replacing item 11 shaft or item 23 hub, order B92960 kit, see below

1шт.

11a

139202A2

SHAFT

telescoping, replaces 139202A1 shaft

1шт.

Part of the Steering Column Modification Kit P/N B92960

1шт.

12

1954249C2

LINCH PIN

CLIP - stop, no longer available, order B92960 kit, if used

1шт.

13

1954250C1

GASKET

COLLAR - lower, shaft, no longer available, order B92960 kit, if used

1шт.

14

1974758C1

SPACER

wheel, steering, no longer available, order B92960, if used

1шт.

15

1954244C1

PROTECTOR

SHIELD - inner

1шт.

17

1340252C1

STEERING WHEEL

1шт.

18

1340455C1

HUB CAP

column

1шт.

21

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

3шт.

22

F19646

LOCK NUT,13/16"-20, Thin

lock, steering wheel retaining

1шт.

23

1974628C1

HUB

lock, wheel, round center hole, used with item 11 shaft, if ordering item 11 shaft or item 23 hub, order B92960 kit, see below

1шт.

23a

138970A1

HUB

lock, wheel, oval center hole, used with item 11A shaft

1шт.

Part of the Steering Column Modification Kit P/N B92960

1шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

25

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, emblem, if used

1шт.

25

1342054C1

PLASTIC PLUG

INSERT - plastic, black, if used

1шт.

Part of the Steering Column Modification Kit P/N B92960

1шт.

26

114983A1

BEZEL

eagle medallion, adhesive backing, locations other than steering insert

1шт.

27

1974720C2

BOOT

column

1шт.

28

1975919C1

SELF-TAP SCREW

special

4шт.

29

104036C1

NUT

expansion

4шт.

31

104008C1

RUBBER INSULATOR

vibration, shaft

1шт.

32

148431C1

JOINT

universal

1шт.

33

438-32428

PIN,3/8" x 1 3/4", Coiled

replaces 617944R1 pin 3/8" x 1 3/4", Coiled

2шт.

34

148426C2

SUPPORT ASSY.

column

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

37

837-10016

DOWEL,M10 x 16

dowel, 10 x 16 mm, hardened

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

39

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

3шт.

40

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

vibration damper

3шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

44

148920C1

BUSHING

pivot, column

2шт.

45

892-11012

LOCK WASHER,M12

2шт.

46

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

47

97109C1

LEVER

release, tilt

1шт.

48

97111C4

HANDLE

lever

1шт.

B92960

STEERING COLUMN

COLUMN-STEERING KIT - steering column modification, Includes: 2, 3, 8, 11A, 23A & 25, plus instructions

1шт.

49

170-101

SCREW,Sl Pan Hd, #8 - 32 x 5/16"

No. 8 x 5/16 inch

1шт.

50

96972C1

PLATE ASSY.

detent, tilt

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

52

538321R1

SPRING

detent

1шт.

53

148480C1

SPRING

support, tilt

1шт.

54

228340A1

WASHER

rubber, snubber, 7/8 inch ID, if used

1шт.

55

100-1187

SNAP RING,#87, Ext

If used

1шт.

56

100-1587

SNAP RING,#87, Ext, Crescent

If used

1шт.

Выбрано товаров: 58
