Запчасти Case IH 7240 (3-036) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 EMISSIONS CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM

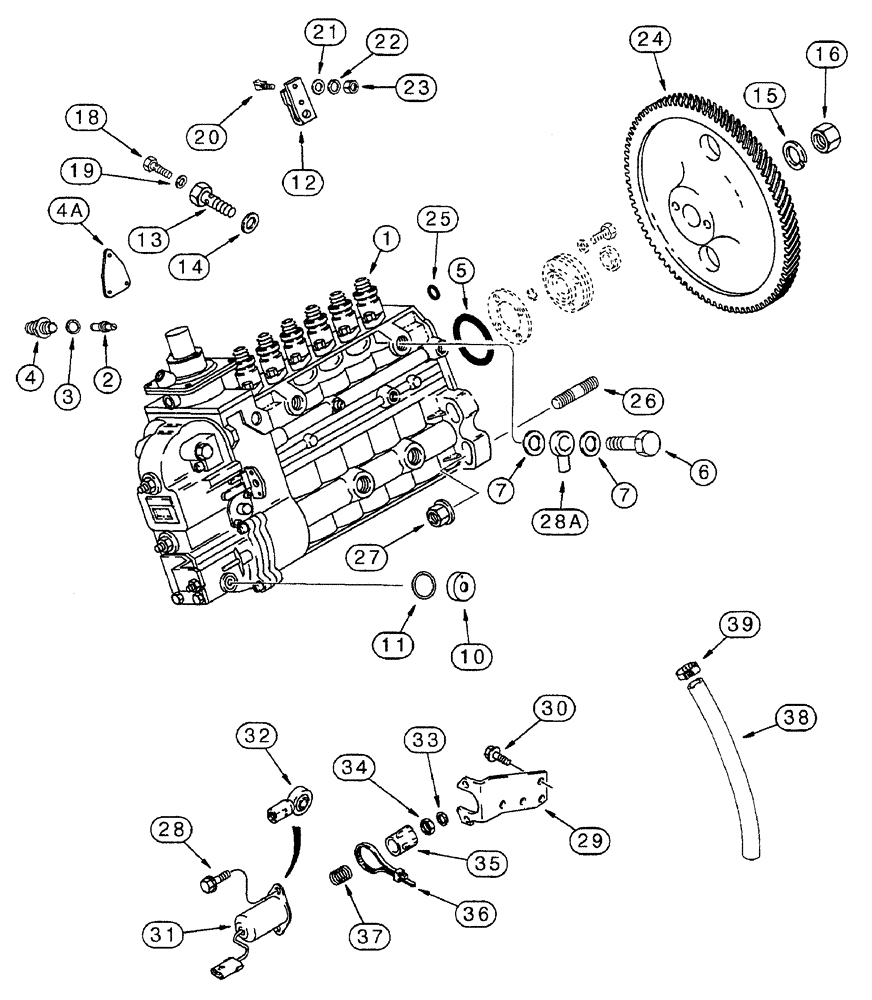

Схема запчастей Case IH 7240 - (3-036) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 EMISSIONS CERTIFIED ENGINE, TRACTOR PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM
5
37
7
22
24
1
12
31
15
26
2
32
27
33
10
23
21
38
25
19
39
4
34
16
30
28a
35
28
14
13
29
4a
18
7
20
6
11
36
3

Артикул

Название

Примечание

Количество

JC923235

CORE-INJECTION PUMP

Return Number - use this part number to return for credit when using a remanufactured assembly

1шт.

1

J927129

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new

1шт.

1

JR927129

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC927129

CORE-INJECTION PUMP

Return Number, INJECTION PUMP

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug

1шт.

4

J912888

PLUG

timing

1шт.

4a

A71110

GASKET

mounting

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J912886

VALVE

overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J929322

LEVER

pump shutoff, not shown

1шт.

9

J930291

NUT

hex, 5 mm - 0.8, not shown

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

12

1808728C1

LEVER

throttle control

1шт.

13

J913320

SCREW

vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

vent screw

1шт.

15

J912897

LOCK WASHER

lock

1шт.

16

J912896

LOCK NUT

hex, self-locking, special

1шт.

18

B41211

SCREW

vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

Vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

1шт.

23

829-1306

NUT,M6, Cl 10

1шт.

24

J931379

GEAR

fuel pump

1шт.

25

J916284

O-RING

O-RING - sealing

1шт.

26

J915036

STUD

pump mounting, gear housing to injection pump

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

28

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

1шт.

28a

J933359

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

29

J923255

SUPPORT

BRACKET - solenoid mounting

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

31

J930233

SOLENOID

fuel shutoff, 12 volt

1шт.

32

A146456

BALL

JOINT - 1/4 inch NF

1шт.

33

492-11025

LOCK WASHER,1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

J925171

BOOT

protective, plunger

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

37

J923887

SPRING

return, plunger

1шт.

38

J918176

HOSE,7.90 mm ID x 330.00 mm

Fuel Drain, Prior to Engine Serial Number 45361257

1шт.

38

J930842

FUEL HOSE,330.00 mm

Fuel Drain, Engine Serial Number 45361257 And After, Use With 235337A1

1шт.

39

J923527

CLAMP

band, hose

1шт.

40

J930683

LOCK NUT

hex, 5 mm - 0.8, solenoid ball joint to injection pump, not shown

1шт.

Выбрано товаров: 45
