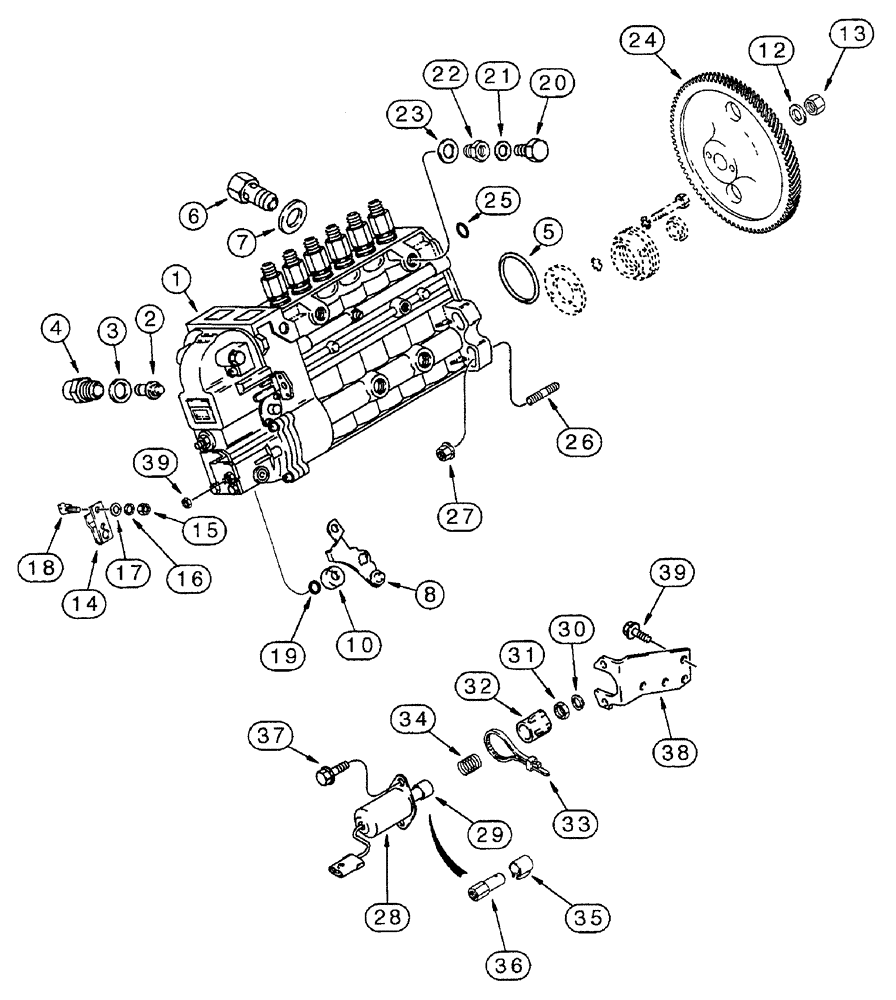

Запчасти Case IH 7240 (3-034) - FUEL INJECTION PUMP DRIVE, 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (03) - FUEL SYSTEM

1

J926218

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new

1шт.

1

JR926218

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC926218

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

JC913338

PUMP

Return Part Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J913681

BANJO BOLT

VALVE - bolt, overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, Special 14 x 20 x 1 mm

1шт.

8

J923230

LEVER

pump shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

12

J912897

LOCK WASHER

lock

1шт.

13

J912896

LOCK NUT

hex, self-locking, special

1шт.

14

1808728C1

LEVER

throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

20

B41211

SCREW

vent

1шт.

21

933696R1

SEALING RING,M6 x 10 x 1

1шт.

22

J913320

SCREW

vent

1шт.

23

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

vent screw

1шт.

24

J912615

GEAR

fuel pump

1шт.

25

J916284

O-RING

O-RING - fuel pump to gear housing

1шт.

26

J915036

STUD

pump mounting

4шт.

27

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

28

J928160

SOLENOID VALVE

fuel shutoff, 12 volt, replaces J923257 solenoid

1шт.

29

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order one each of items 35 and 36

1шт.

30

492-11025

LOCK WASHER,1/4"

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

32

J925171

BOOT

protective, plunger

1шт.

33

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

34

J923887

SPRING

return, plunger

1шт.

35

J923885

SPRING

CLIP

1шт.

36

J928173

BALL JOINT

SOCKET

1шт.

37

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

2шт.

38

J923254

SUPPORT

BRACKET - solenoid mounting

1шт.

39

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

39

832-10405

NUT,M5 x .8, Cl 8

If used

2шт.
