Запчасти Case IH 7240 (3-024) - FUEL FILTER AND TRANSFER PUMP, 6T-830 AND 6TA-830 EMIS. CERT. ENGINE, PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM

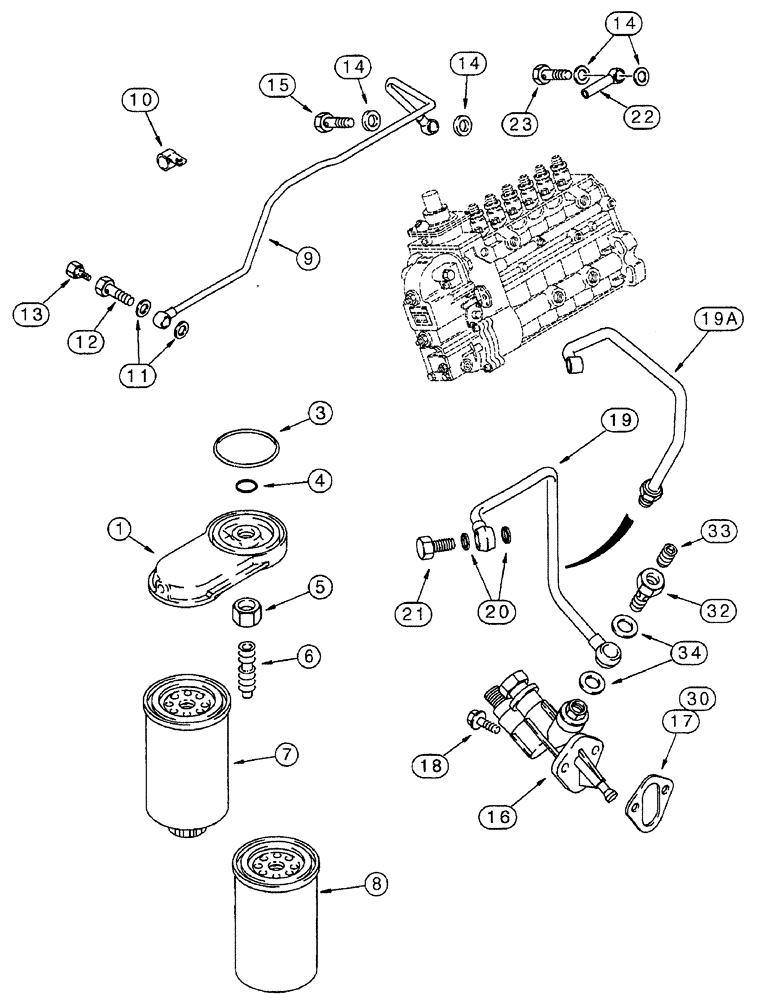

Схема запчастей Case IH 7240 - (3-024) - FUEL FILTER AND TRANSFER PUMP, 6T-830 AND 6TA-830 EMIS. CERT. ENGINE, PIN JJA0064978 AND AFTER (03) - FUEL SYSTEM
17
21
8
1
7
14
5
19a
12
22
3
9
14
19
11
18
33
34
13
20
30
14
15
32
10
6
16
23
4

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

A77470

SEPARATOR

KIT - fuel

1шт.

7

J930942

SEPARATOR

Primary, Replaces J925274 filter

1шт.

8

J903640

FILTER, FUEL

secondary, secondary

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

supply, fuel

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, replaces J918191 washer

2шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

16

J933252

FEED PUMP

lift, fuel, see J926764 repair kit below, replaces J925709 pump

1шт.

17

J931059

GASKET

mounting, fuel transfer pump, replaces J923054 gasket

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918537

FUEL TUBE,8 mm OD x 278.9 mm L

supply, used with items 32, 33 and 34, if used

1шт.

19a

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

supply, if used

1шт.

20

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, replaces J918191 washer

2шт.

21

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

23

J912886

VALVE

overflow, see item 6, Figure 3-32 or item 6, Figure 3-36

1шт.

24

J926764

GASKET KIT

transfer pump repair, not shown

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J923054

GASKET

mounting, fuel transfer pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

32

J914037

BANJO BOLT

banjo connector, if used

1шт.

33

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

If used

1шт.

34

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, if used

2шт.

Выбрано товаров: 35
